Power Meter Transducers
Single phase Voltage Dry Contact Transducer
Voltage range: 100V,260V,450V optional;
Support Relay ouput,Transistor open-collector output or 12/24V ouput;
Alarm Threshold: when voltage<100V, relay active,contact get through;When input voltage>115V,relay and contact open.The input threshold can be set according to user’s request in factory.
Relay capacity: AC250V/1A, DC30V/1A;Transistor open-collector output capacity:30V/50mA; Active output capacity: 20mA.
Working Power: 12V or 24V DC.
Rp999,000

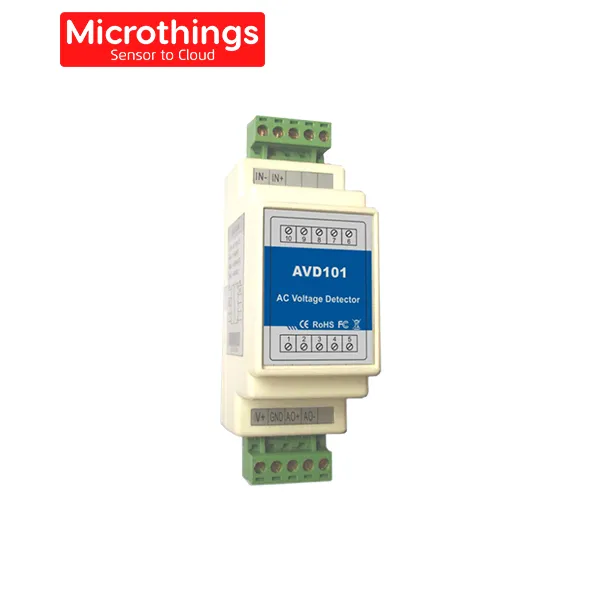

Single phase Voltage Dry Contact Transducer
Spesification :
Voltage range: 100V,260V,450V optional;
Support Relay ouput,Transistor open-collector output or 12/24V ouput;
Alarm Threshold: when voltage<100V, relay active,contact get through;When input voltage>115V,relay and contact open.The input threshold can be set according to user’s request in factory.
Relay capacity: AC250V/1A, DC30V/1A;Transistor open-collector output capacity:30V/50mA; Active output capacity: 20mA.
Working Power: 12V or 24V DC.
Based on 0 reviews
Be the first to review “Single phase Voltage Dry Contact Transducer”
You must be logged in to post a review.
