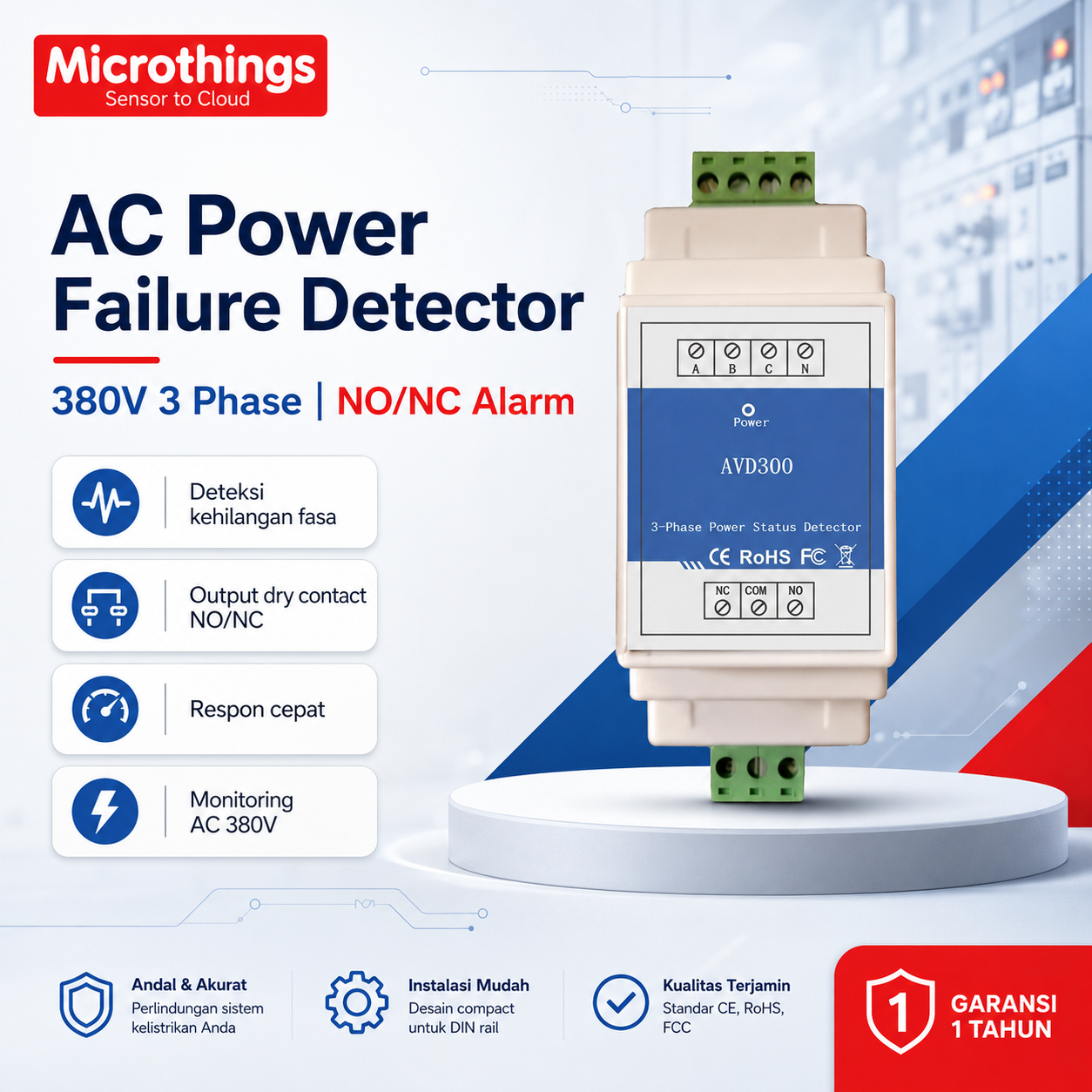

AC Power Failure Detector

Description :
Monitoring voltage: AC380V±20%, three-phase four-wire system.
If detected one phase power off,it will ouput an alarm signal to alarm panel;
This product has high reliability, anti-interference, high sensitivity, fast response and so on

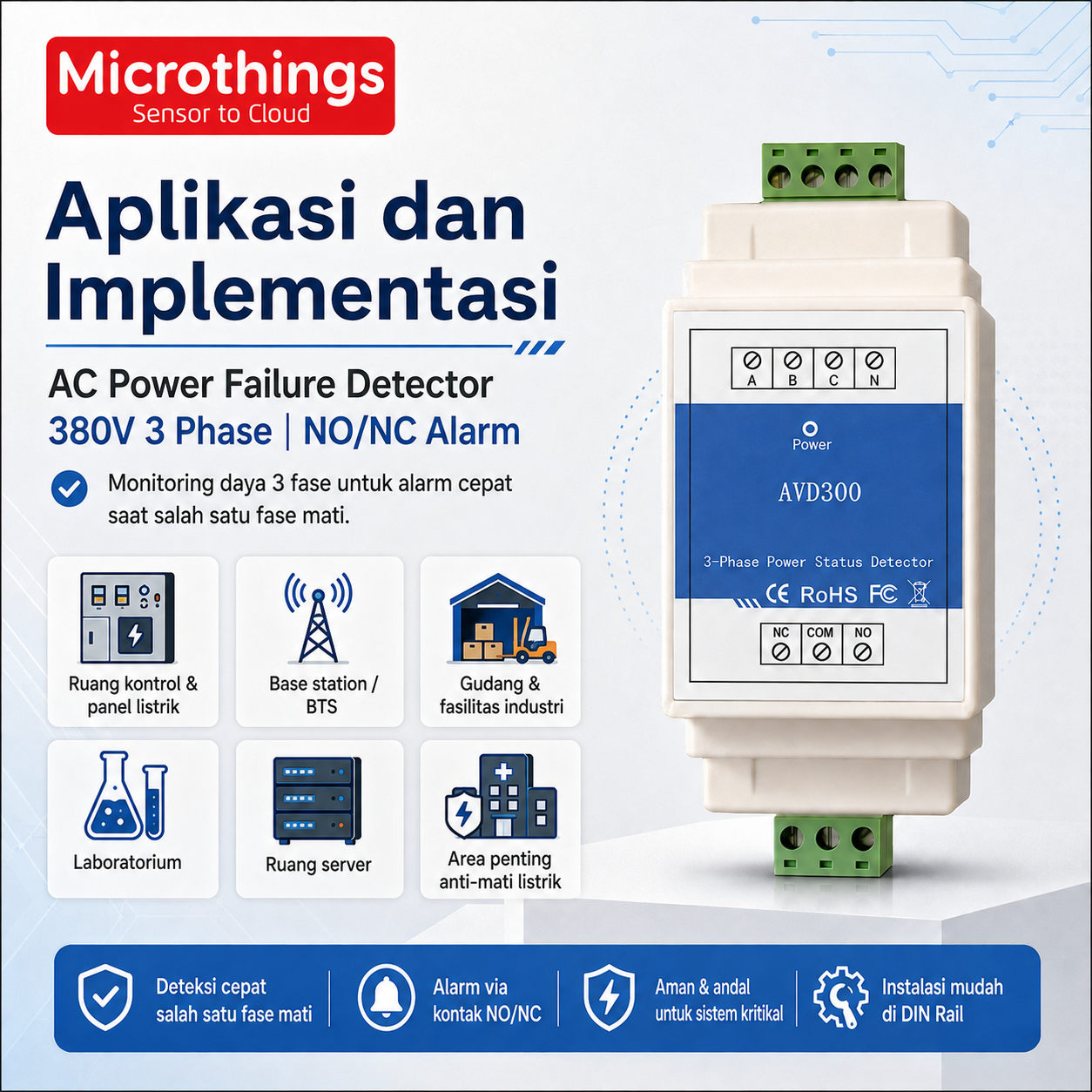

Applicable: room, base station, warehouse, laboratory, and other important anti-off electric occasions.
Power Alarm: Input, output and power completely isolated, safe and reliable;
High sensitivity: accurate detection, no error report;
Output form: dry contact alarm output, NO or NC optional.
Installation: Anchor hole installation
Quiescent current: <45mA;
Alarm current: <65mA;
Working environment: -10~55 ℃, 10~98% RH;

Rp1,680,000

AC Power Failure Detector

Description :
Monitoring voltage: AC380V±20%, three-phase four-wire system.
If detected one phase power off,it will ouput an alarm signal to alarm panel;
This product has high reliability, anti-interference, high sensitivity, fast response and so on
Applicable: room, base station, warehouse, laboratory, and other important anti-off electric occasions.
Power Alarm: Input, output and power completely isolated, safe and reliable;
High sensitivity: accurate detection, no error report;
Output form: dry contact alarm output, NO or NC optional.
Installation: Anchor hole installation
Quiescent current: <45mA;
Alarm current: <65mA;
Working environment: -10~55 ℃, 10~98% RH;

Weight 1 g
Dimensions 6 × 6 × 4 cm

AC Power Failure Detector

Description :
Monitoring voltage: AC380V±20%, three-phase four-wire system.
If detected one phase power off,it will ouput an alarm signal to alarm panel;
This product has high reliability, anti-interference, high sensitivity, fast response and so on
Applicable: room, base station, warehouse, laboratory, and other important anti-off electric occasions.
Power Alarm: Input, output and power completely isolated, safe and reliable;
High sensitivity: accurate detection, no error report;
Output form: dry contact alarm output, NO or NC optional.
Installation: Anchor hole installation
Quiescent current: <45mA;
Alarm current: <65mA;
Working environment: -10~55 ℃, 10~98% RH;
