Series smart reader is designed as an effective add-on device to the current water meter.

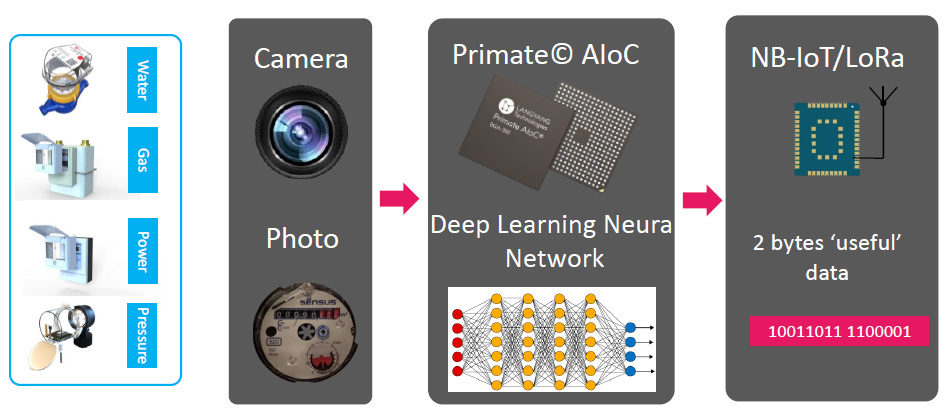

By direct camera reading, together with the AI chip deep learning/ recognition mode, it can recognize the number/ pointer position on the met er offline, and transmit the numerical results wirelessly.

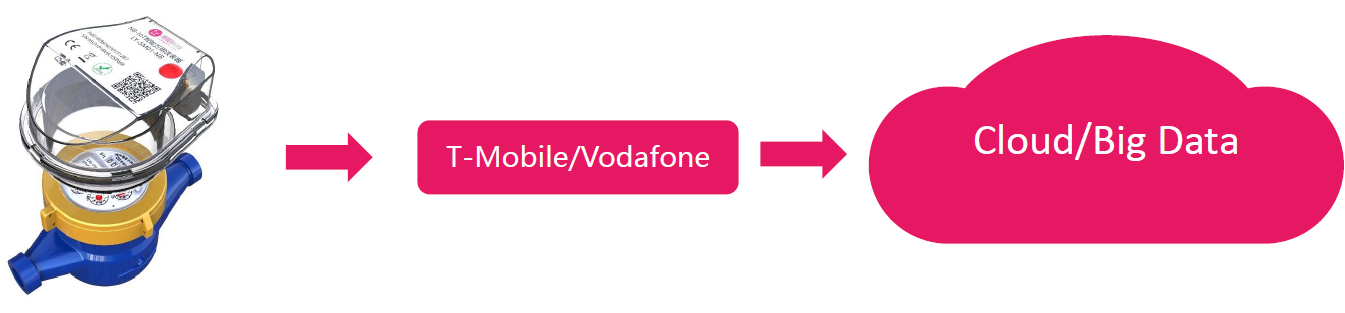

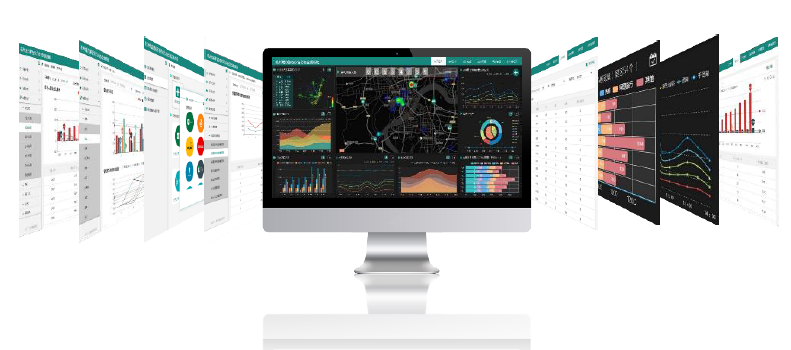

Supporting NB-loT, LoRa and other communication modules for data remote transmission, it enables the centraliz ed management of water consumption data.
Name : Auge Series Water Meter Reader
Size : 167mm134mm96mm
Weight : 350g
Protection Level : IP68
Battery Capacity : 8500mAh
Technology : Camera + AI Recognition
Power Supply : Lithium Battery Supply
Voltage : 3.6 V
Communication Mode : NB-loT, LoRa, WiFi, Sigf ox
Standby Power : ≤7uA
Electromagnetic field : E1
Working Current : ≤200mA

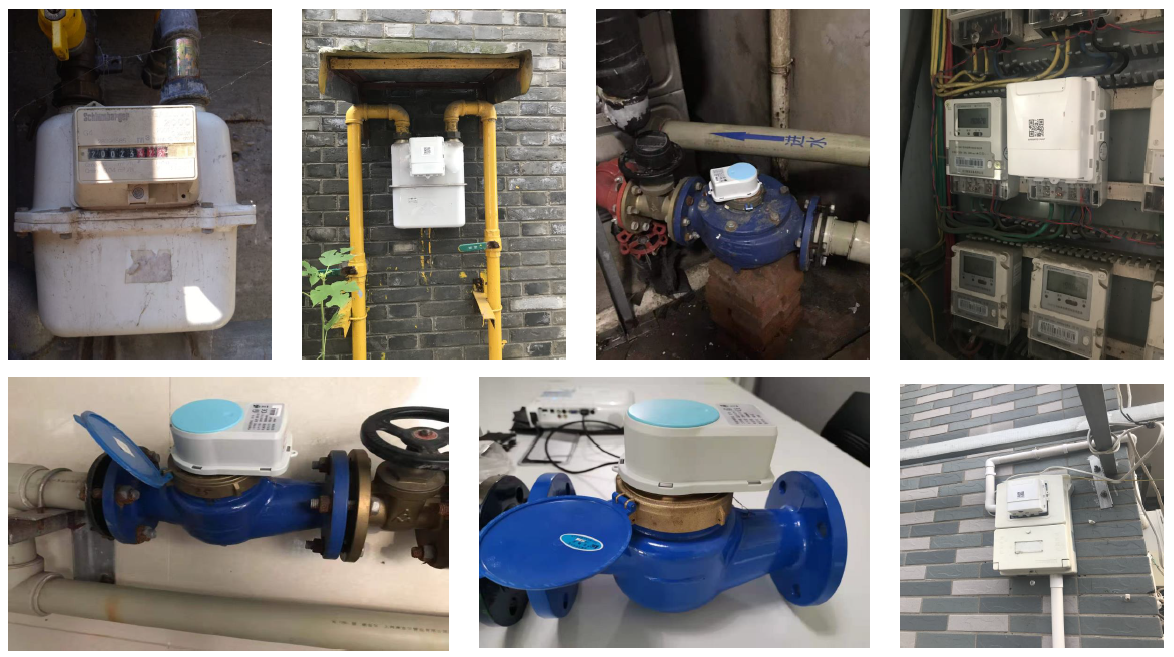

Installation Environment : Class B, no strong magnetic environment
Battery Life : 10 years
ESDProtection Level : > 10 kv
Product List : Smart Reader x1, Instruction f or use x1, W arranty Card x1, Desiccant x 1
If Need Customized Please Contact Us.
