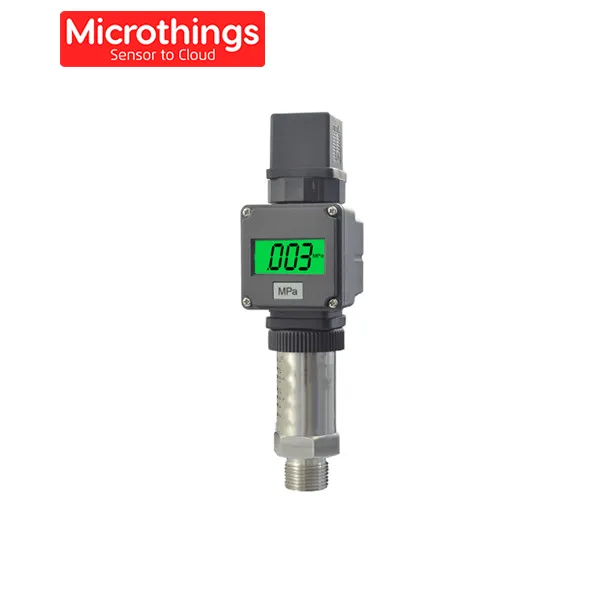

The SUP-PX300 digital pressure transmitter uses a diffused silicon pressure core as a sensitive element, and a built-in processing circuit converts the sensor’s millivolt signal into standard voltage and current signal output.
At the same time, it has a display function, which can quickly and intuitively display the scene.
Pressure fluctuations can reduce interference and errors caused by signal transmission.
It is widely used in supporting industrial automation equipment and control fields such as petroleum, chemical industry, metallurgy, electric power and so on.
-Small structure and easy installation.
-Advanced diaphragm / oil-filled isolation technology.
-High stability and high reliability.
-Anti- vibration and anti-radio frequency interference.
-316L stainless steel isolation diaphragm structure.
-High- precision, all-stainless steel structure.
-Micro amplifier, voltage, current, RS485 signal output.
-Strong anti-interference and good long-term stability.
-Diversified forms and structures, easy to install and use.
-Wide range, can measure absolute pressure, gauge pressure and sealing reference pressure.
Power supply: 12~36VDC
Output signal: 4~20mA
Pressure range: -0.1~100MPa
Temperature compensation: -10~70°C
Storage temperature: -40~125°C
Medium temperature: -20~85°C
Ingress protection: IP65
Pressure type: Gauge pressure, absulute pressure, sealed pressure
Accuracy: 0.1%, 0.3%, 0.5% optional
Zero temperature drift: ±0.03%F.S/°C
Sensitivity temperature drift: ±0.03%F.S/°C
Overload pressure: 200%F.S
Long-term stability: ±0.2%F.S/y
Electrical connections: Direct lead/ aerial linker/ Din connector (customizable)
Measuring medium: Oil, water, gas etc.
Process connections: Threaded/ sanitary/ flange
