Pressure Sensors

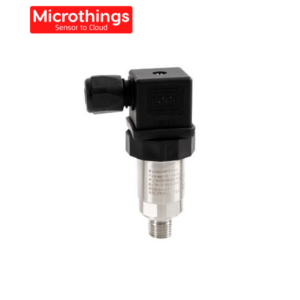

Compact Pressure Sensor HPT300-S1
Availability:
100 in stock
Compact Pressure Sensor HPT300-S1 adalah Sensor tekanan OEM kompak dengan sensor Keramik Jerman terintegrasi untuk manufaktur, dan desain sirkuit canggih untuk menghindari pengaruh pada produk yang disebabkan oleh suhu, kelembaban, dan media.
Rp3,400,000
100 in stock
CompareCompact Pressure Sensor HPT300-S1 adalah Sensor tekanan OEM kompak dengan sensor Keramik Jerman terintegrasi untuk manufaktur, dan desain sirkuit canggih untuk menghindari pengaruh pada produk yang disebabkan oleh suhu, kelembaban, dan media.
Spesifikasi Teknis :
Accuracy : ≤ ±1.0%F.S (Typical)≤ ±0.5%F.S (By Customized)
Stability : 0.2%F.S±0.05%/Year
Working Temp : 35℃~125℃
Storage Temp : -40℃~125℃
Temperature Compensation : 0℃~50℃
Output : 4-20mA,0-5V,0-10V,0.5-4.5V
Power Supply : 10-30VDC, 8-30VDC, 15-30VDC, 5±0.25VDC
IP rating : IP65
Keuntungan
Handal dan tahan lama dalam aplikasi yang keras
Desain palu air, tahan guncangan, hindari kerusakan tekanan berlebih instan
Konstruksi baja tahan karat kekuatan tinggi
Kompensasi suhu otomatis 0-50
Desain dampak stabilitas tinggi yang disegel penuh
Aplikasi:
Tekanan hidrolik
Sistem pasokan air
Kompresor udara
Membangun pasokan air
Sistem pengereman
Kontrol proses dan otomatisasi
| Weight | 1 kg |
|---|
Spesifikasi Teknis :
Accuracy : ≤ ±1.0%F.S (Typical)≤ ±0.5%F.S (By Customized)
Stability : 0.2%F.S±0.05%/Year
Working Temp : 35℃~125℃
Storage Temp : -40℃~125℃
Temperature Compensation : 0℃~50℃
Output : 4-20mA,0-5V,0-10V,0.5-4.5V
Power Supply : 10-30VDC, 8-30VDC, 15-30VDC, 5±0.25VDC
IP rating : IP65
Keuntungan
Handal dan tahan lama dalam aplikasi yang keras
Desain palu air, tahan guncangan, hindari kerusakan tekanan berlebih instan
Konstruksi baja tahan karat kekuatan tinggi
Kompensasi suhu otomatis 0-50
Desain dampak stabilitas tinggi yang disegel penuh
