Ultrasonic Smart Water Meter

Ultrasonic Smart Water Meter
Model :LS-U1

Introduction :
Ultrasonic Smart Waterd Meter is a State – of – art design of patent, which supports both Prepaid and Postpaid working mode.
With integrated valve, it could realize Prepaid working mode aims to improve the bill collection for Water Authority and in the meantime with GPRS/LoRa/NB-IoT/Sigfox etc.
IoT (Internet of Things) communication technology, it could realize Remote Meter Data Collection, Monitoring and Valve Control when necessary.

Technical Spesification :
ADVANTAGES
Low Start Flow Rate: 0.002m3 /h
Fully Electronic, No moving parts with long working lifespan
Flexible Installation Direction (Horizontal, Vertical, Inclined)
Prepaid & Postpaid Working Mode available & switchable
Water Temperature Detector Sensor, Low Temperature alarm
Touchable Keypad reserved for Meter Data Query

Prepaid Function
Confirms to STS Standard (IEC 62055 – 41,51), certified By STSA

Flexible Water Purchase
At Vending Points
At Vendor via POS
Customer self – service via SMS
Flexible Meter Recharge
Remote Recharge via Network
CIU via LoRa Com.
IR Pad via Infrared

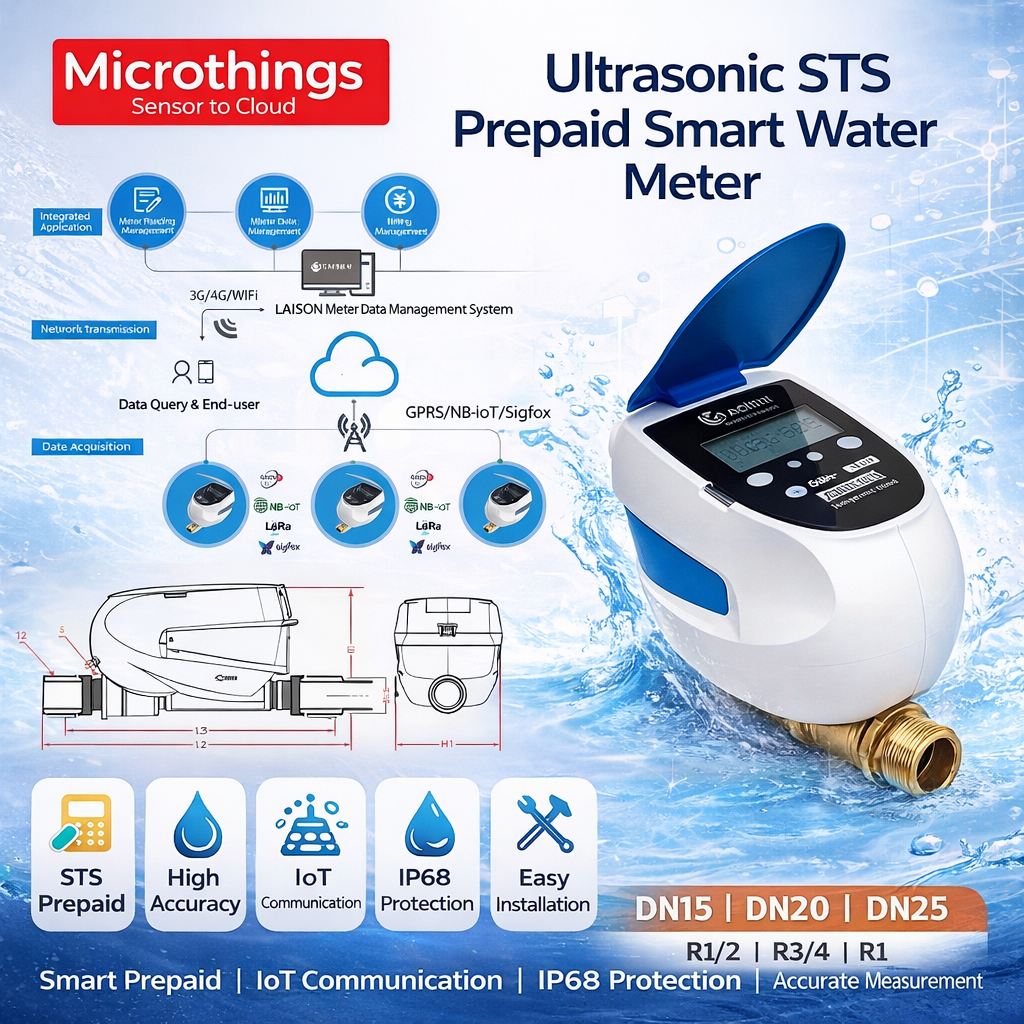

AMI Function
Daily Automatic Meter Data Upload
Hourly Consumption Data, Battery Voltage, Meter Running Status & Alarm

Real – time Remote Meter Communication
Data Query
Valve Control (Open/Close)
Remote Recharge for Prepaid

Technical Data
Accuracy Class: 2
Working Temperature: T50 (T30/T70 optional)
Max. Working Pressure: 1.6 MPa
R (Q3/Q1) Value: 250/400/600
Diameter: DN15 – DN20
Power Supply: Lithium Battery, 3.6V

Noted :
1. If Need Customized Please Contact Us
2. Standart : NB-IoT
3. Optional : GPRS/LoRa/NB-IoT/Sigfox
