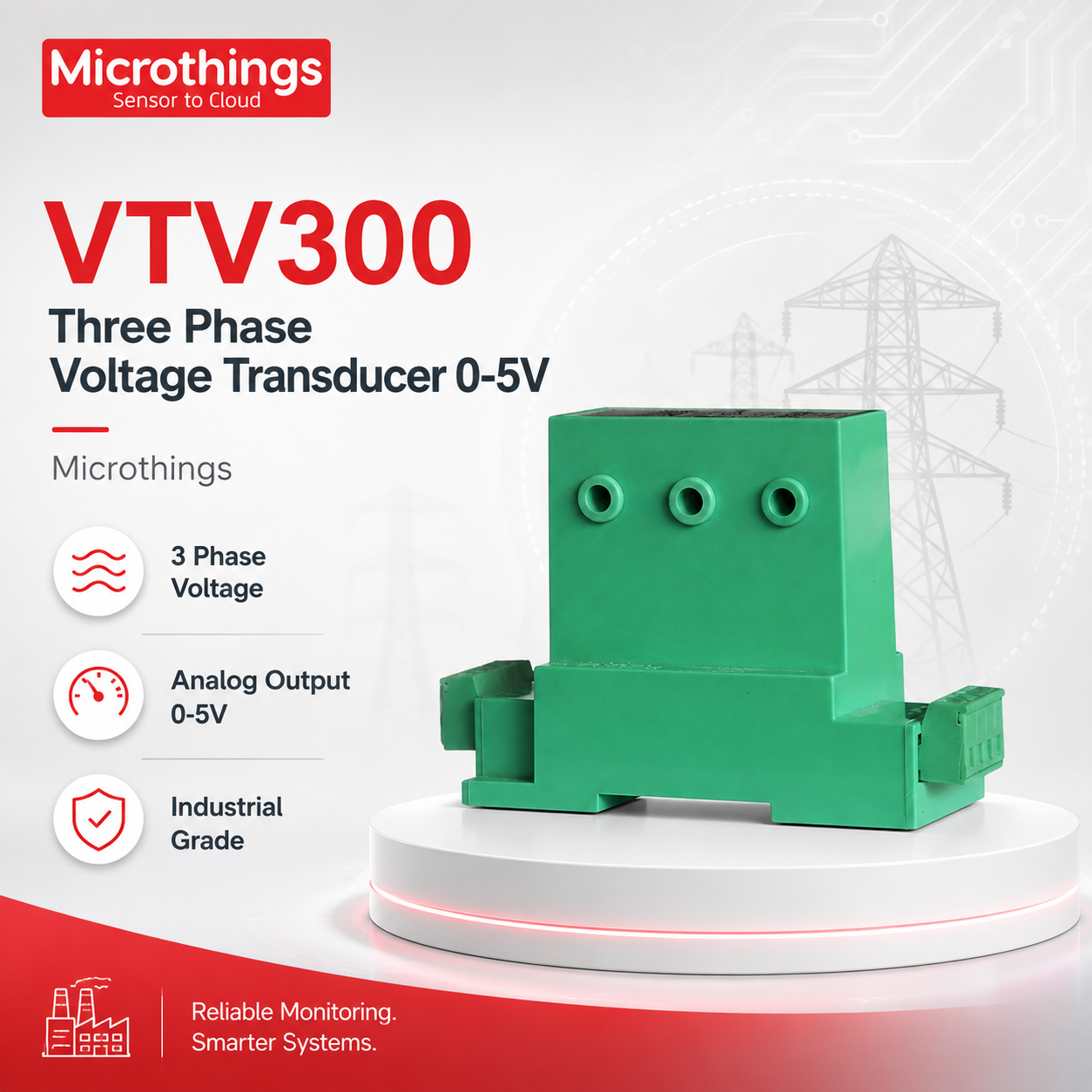

Three phase Voltage Transducer With Output Analog 0-5V


Compare

Three phase Voltage Transducer With Output Analog 0-5V

Model:VTV300
The VTV300 is special for 3-phase AC power voltage A,B,C Phase measurement. It is an industrial class, high reliability, low-power consumption, high stability and high precision analog transducer.

Rp1,790,000 Rp1,990,000

Three phase Voltage Transducer With Output Analog 0-5V

Model:VTV300
The VTV300 is special for 3-phase AC power voltage A,B,C Phase measurement. It is an industrial class, high reliability, low-power consumption, high stability and high precision analog transducer.

Introduction:
The VTV300 is special for 3-phase AC power voltage A,B,C Phase measurement. It is an industrial class, high reliability, low-power consumption, high stability and high precision analog transducer.

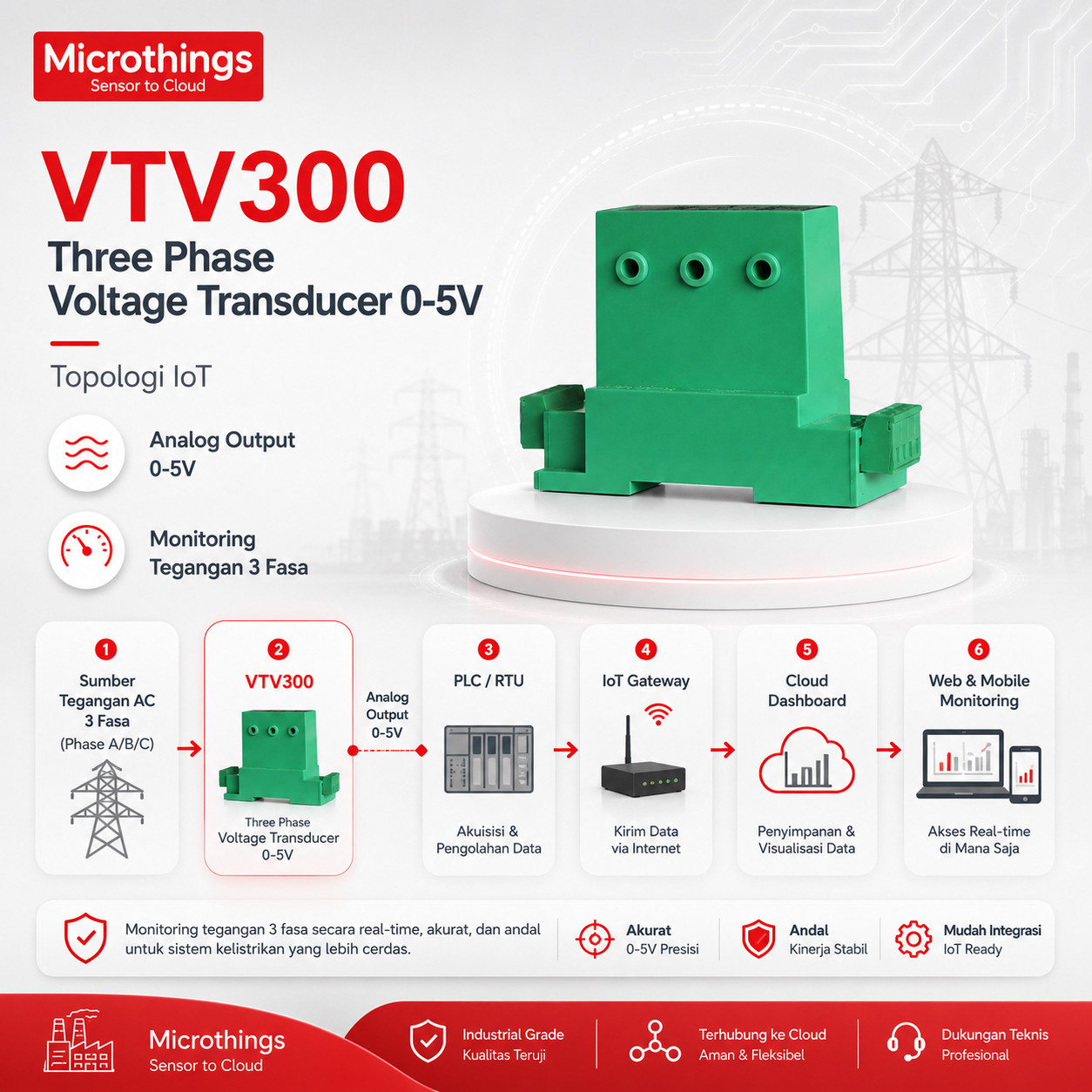

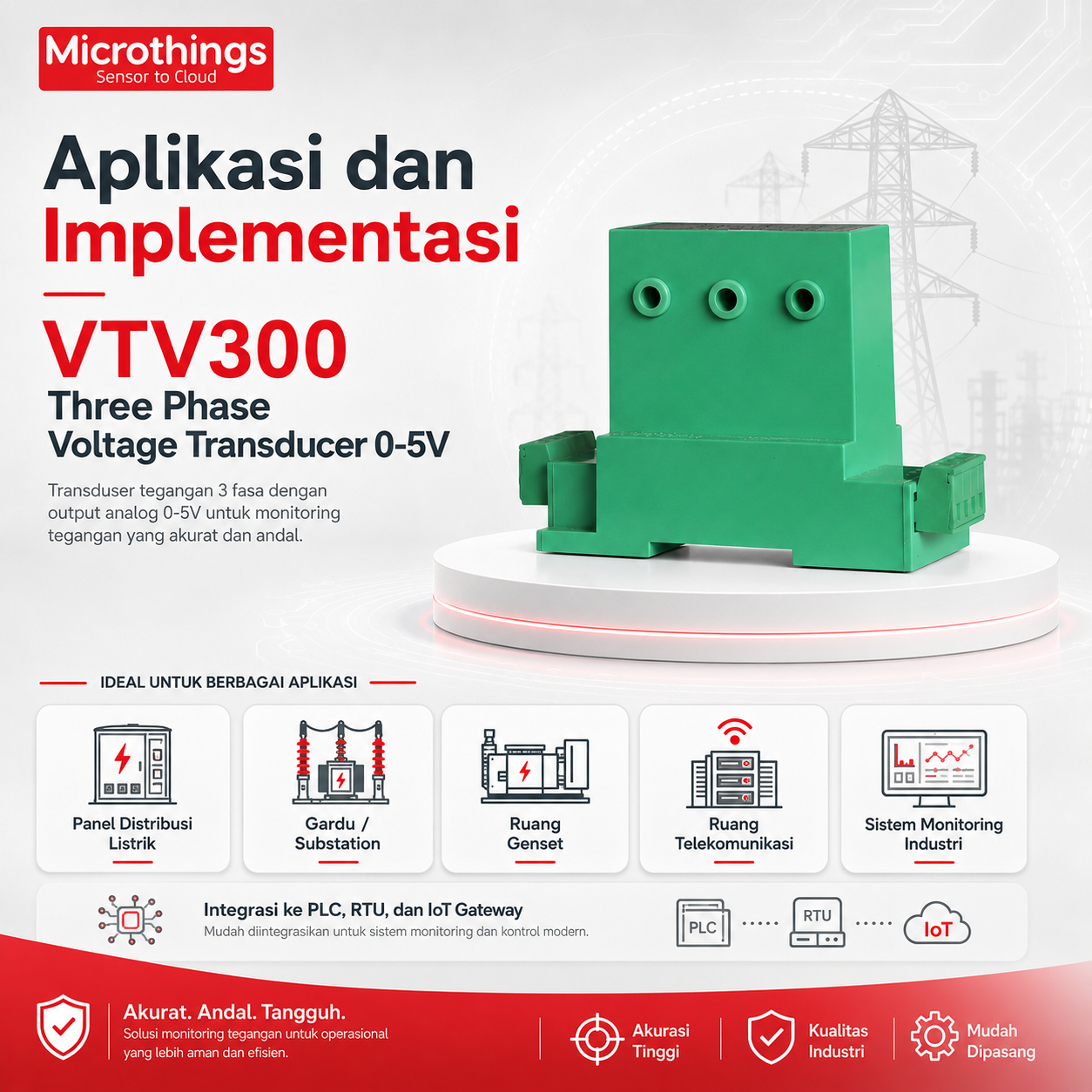

The VTV300 is used widely as a voltage measure of Base Transceiver Station, diesel generator rooms, engine room, transformer substations, telecommunication equipment rooms, power supply systems and so on.

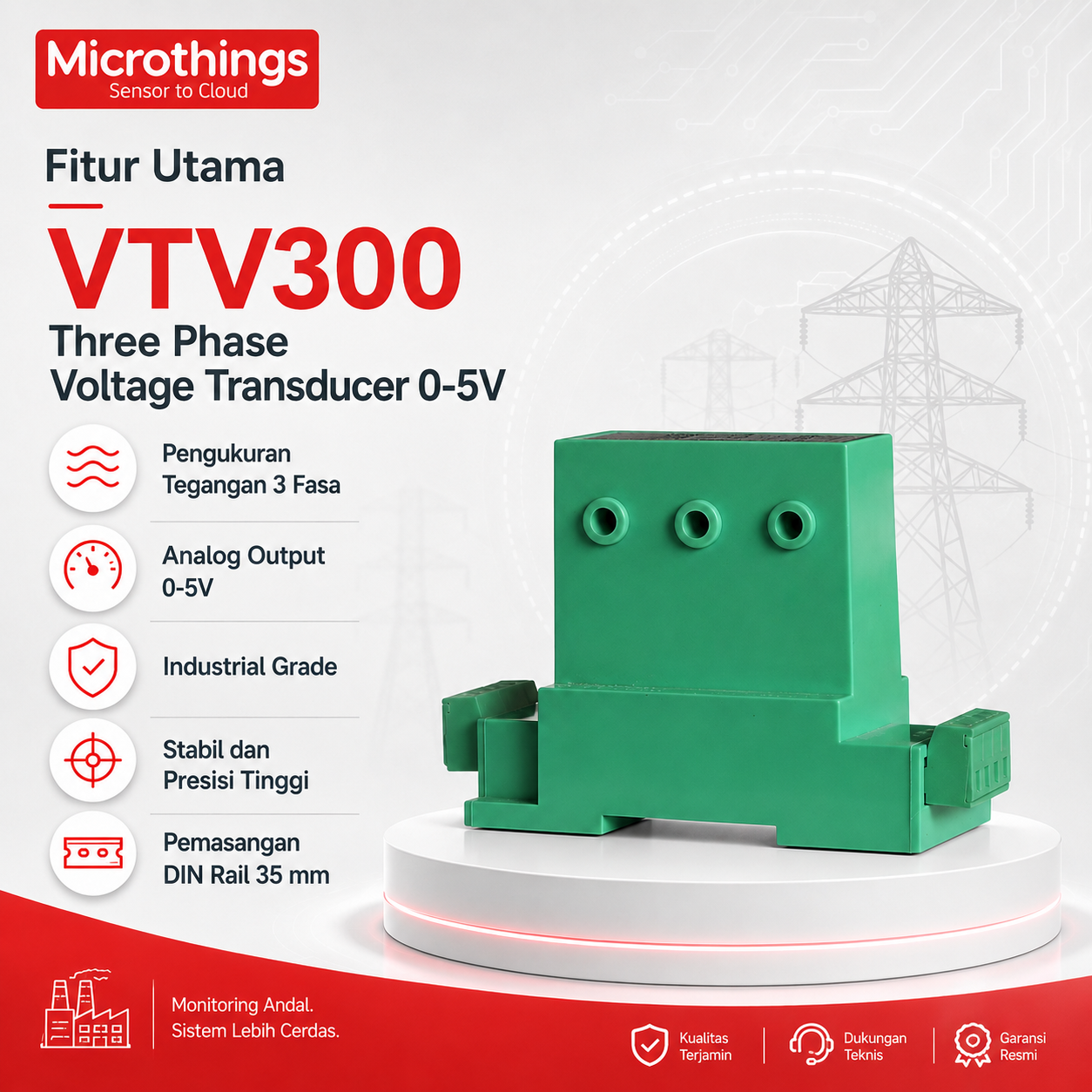

The VTV300 with fire retardant shell, standard 35mm DIN rail mounting makes it easy to install in fields.

Weight 500 g

Specifications:
Please inform us the correct parameters from below specifications before you order this item.
Rated Power Input:Default:12VDC, Optional: 5VDC,15VDC, 24VDC;
Input Voltage:Default:0~500VAC, Optional: 0~200VAC;
Output Current:0-5 Volt
Precision Class:Default:0.5%, Optional: 0.2%;
Isolation Voltage:>2500VDC;
Installation Type:standard 35mm DIN rail
Relative Humidity:0~98%RH.;
Operation Temperature:-10~55℃;
Dimension:96X76X38mm(HxWxD)
Net Weight:140g.
