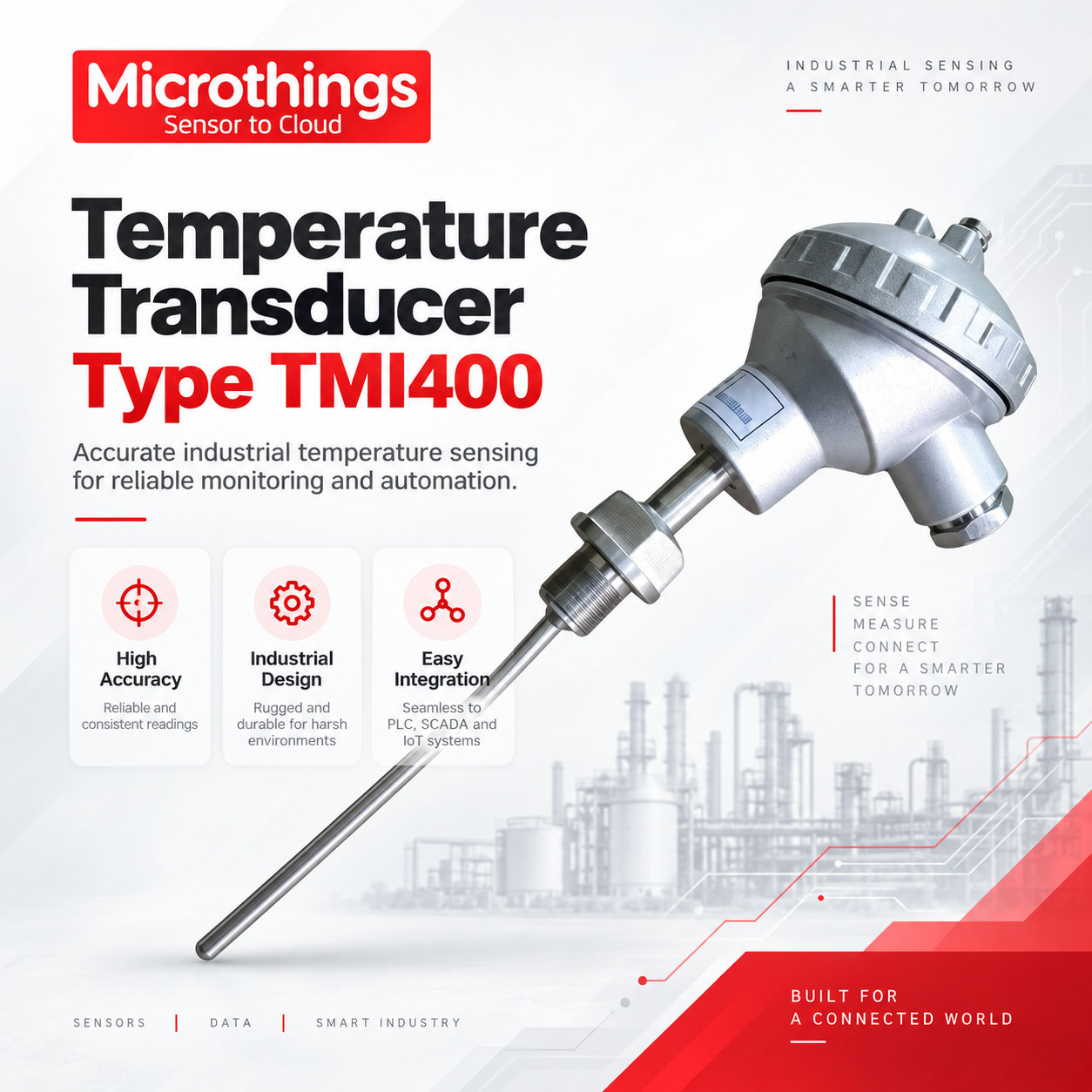

Temperature Transducer Type TMI400

Introduction :

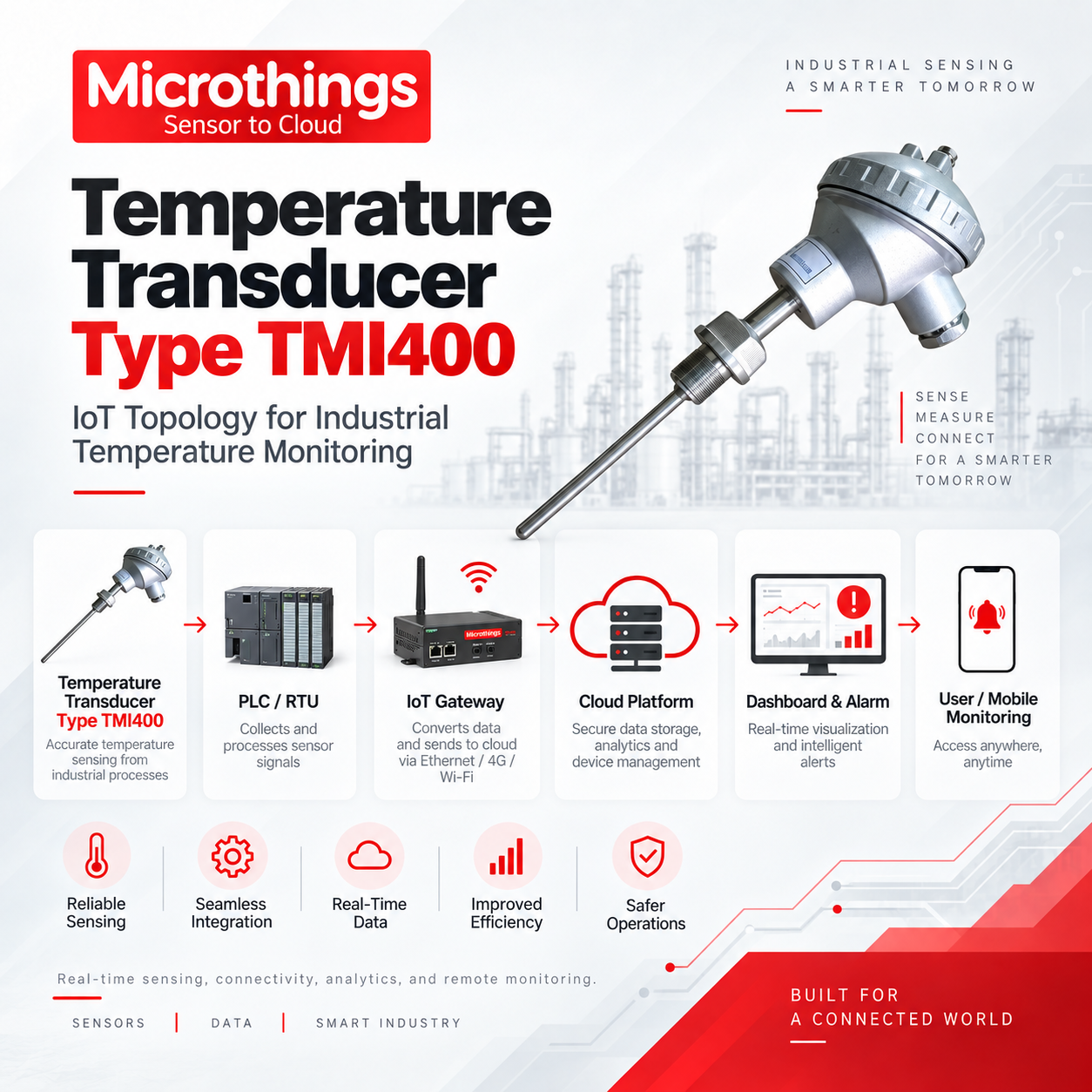

The temperature transducer integrated the temperature sensor and transmitter. It can measure the temperature range from -200~+1600 and convert to 4~20mA DC signal output. It can contact to the display, PID, recorder or SCADA or DCS and so on.

Features:
Small size, suitable for lots of applications;
2 wires, output 4~20mA DC;
High precision measurements;
Thermocouple for measurement, no need compensating cables , reduce costs
Explosion-proof Rate: dIIBT4;
IP rate: IP54

Rp1,260,000

Temperature Transducer Type TMI400

Introduction :
The temperature transducer integrated the temperature sensor and transmitter. It can measure the temperature range from -200~+1600 and convert to 4~20mA DC signal output. It can contact to the display, PID, recorder or SCADA or DCS and so on.

Features:
Small size, suitable for lots of applications;
2 wires, output 4~20mA DC;
High precision measurements;
Thermocouple for measurement, no need compensating cables , reduce costs
Explosion-proof Rate: dIIBT4;
IP rate: IP54



Weight 1000 g

Specification:
Precision : 0.2%F.S 0.5%F.S
Measurement Material : Thermocouple
Output : 2 wires 4-20mA DC
Measurement Range : -200~+1600
Working Temperature : -25-85
Working RH : 5-95%RH
Display : Non
Loading : < 600 (Rated is 250 )
Outlet Size : 70 100mm
