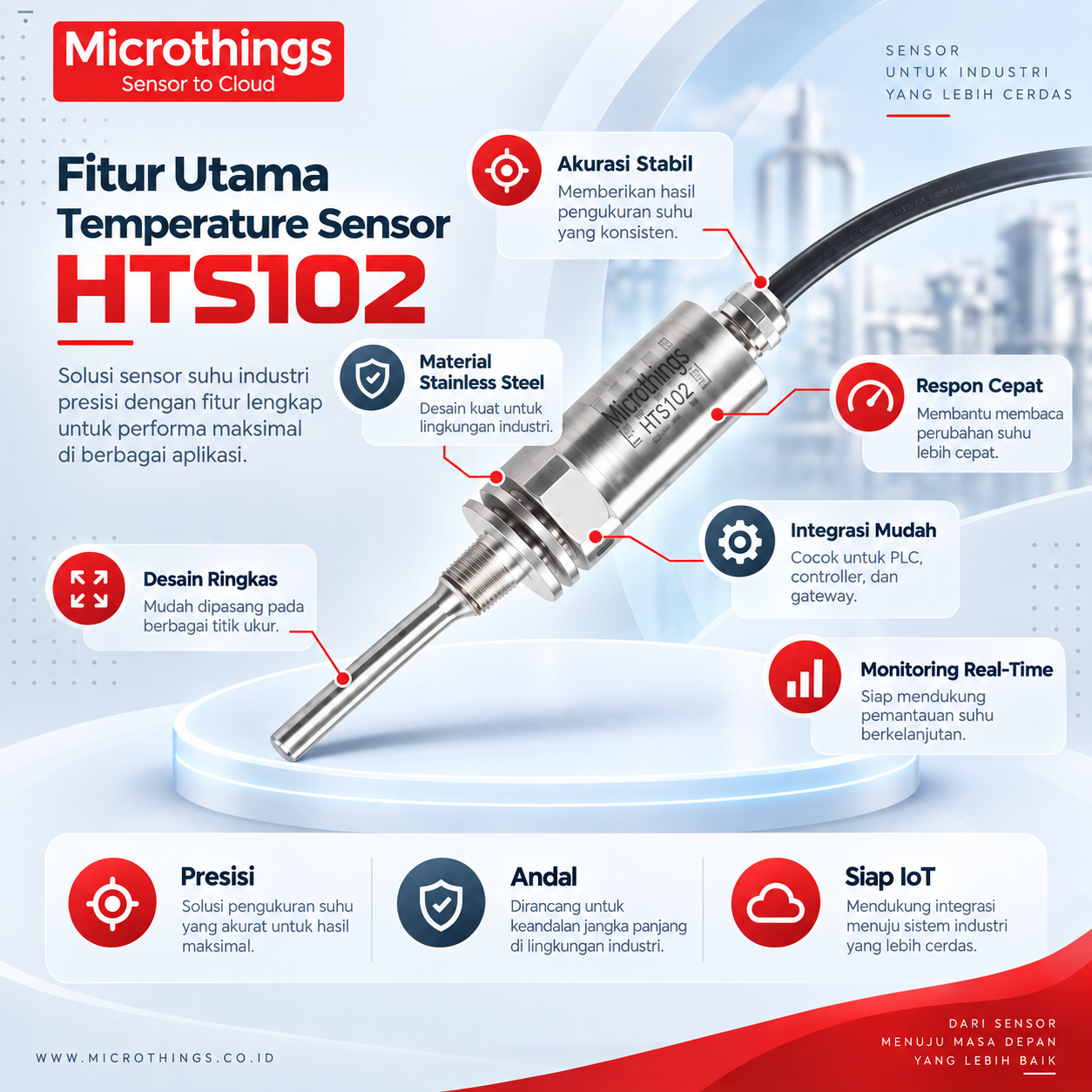

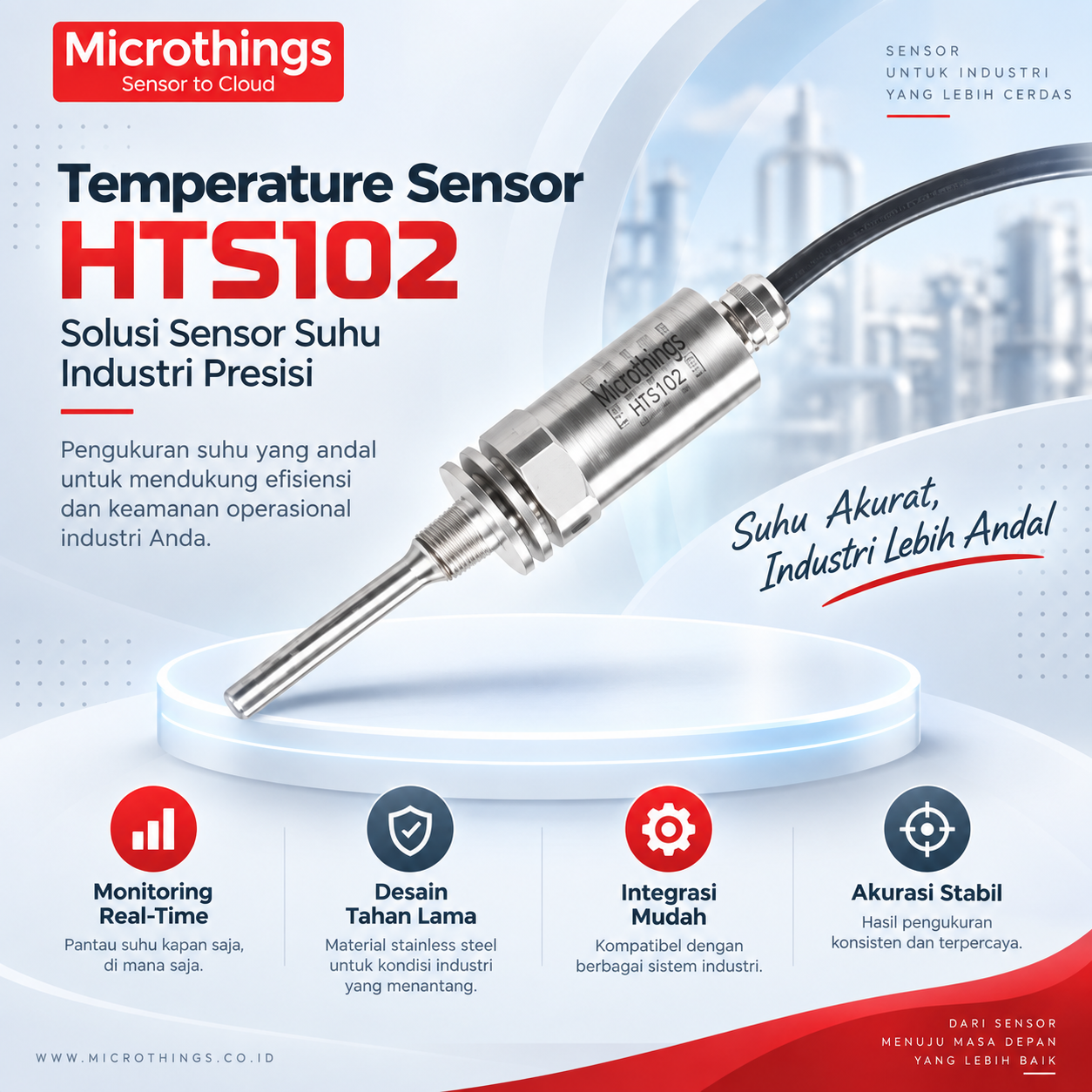

Temperature Sensor HTS102


Temperature Sensor HTS102 adalah Explosion-Proof Temperature Transmitter Perumahan tertutup rapat membuatnya cocok rentang pengukuran yang diberikan juga tersedia dalam mbar, kPA dan MPa.untuk perendaman di sebagian besar cairan dan minyak industri.

Rp2,600,000 Rp2,800,000

Temperature Sensor HTS102 adalah Explosion-Proof Temperature Transmitter Perumahan tertutup rapat membuatnya cocok rentang pengukuran yang diberikan juga tersedia dalam mbar, kPA dan MPa.untuk perendaman di sebagian besar cairan dan minyak industri.

Spesifikasi Teknis :
Parameter:HTS101;HTS102;HTS103;HTS104
Measurement Range (Degree C/ ℃):-50~0; -50~50; 0~80; 0~100; 0~120;0~150;0~200 optional;0~250; 0~300;;0~400 optional;-50 to 400 optional
Installation Type:Insert type;Insert type;Insert type;Insert type
Probe length:50 mm or customized;50 mm or customized;50 mm or customized;50 mm or customized
Probe Dimension:Φ6; Φ8 optional Φ6; Φ8 optional;Φ6; Φ8 optional;Φ6; Φ8 optional
Sensor Type:PT100; Pt1000;PT100; Pt1000;PT100; Pt1000;PT100; Pt1000
Signal Output:resistive signal ;4-20 mA ;0-5V ;0-10V
Signal wires type:2 wires or 3 wires;2 wires;3 wires
Power supply:NA;9~30Vdc;18~30Vdc
Linear: ±0.1%F.S.; ±0.25%F.S.; ±0.5%F.S. Optional
Working pressure:40Bar (standard); 300 Bar (customized)
Long time stability:0.1%F.S.
Response time:T=50 2.3S; T=90 5.4S
Electronic proof:NA;Reverse polarity protection; Overload voltage protection (standard);surge protection (customized)
Environment temp:-40~85 Degree C
Storage temp:-40~125 Degree C
Materials of housing:316L Stainless Steel
Materials of process:316L Stainless Steel
Water proof grade:IP65

Keuntungan
Instalasi sederhana dan cakupan suhu yang beragam
Gas dan media cair tersedia
Baja tahan karat 316L yang kompatibel sedang
Stabilitas waktu yang sangat baik dan konsumsi yang lebih rendah
Dimensi yang lebih kecil dan struktur yang kompak
Respon cepat dan akurasi tinggi

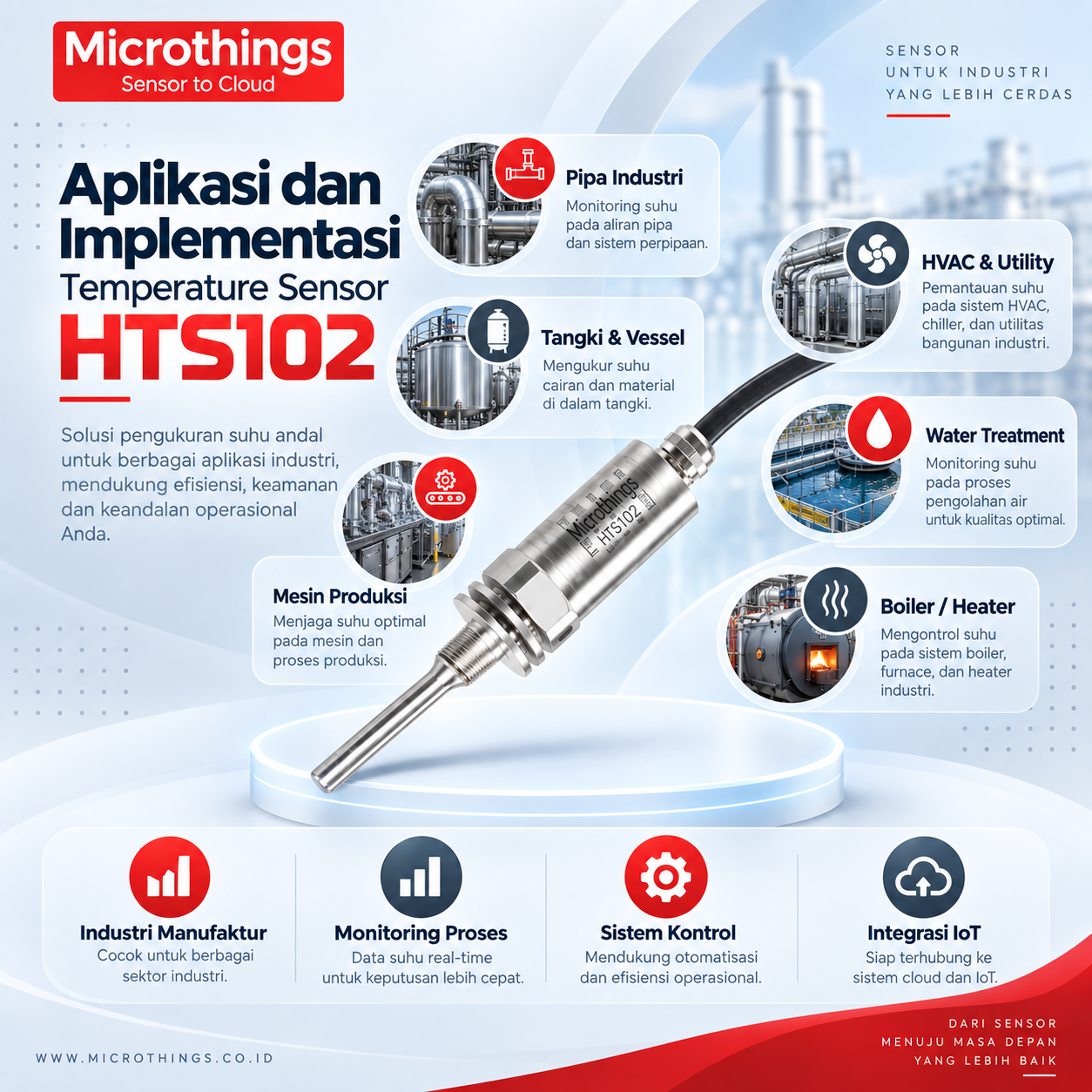

Aplikasi:
Pipa dan sistem ventilasi
Sistem hidrolik dan pneumatik
Industri petrokimia
Sistem hidrolik dan pneumatik
Sistem pendingin
Sistem pemanas
Sistem pendingin udara (HAVC

Weight 1 kg
