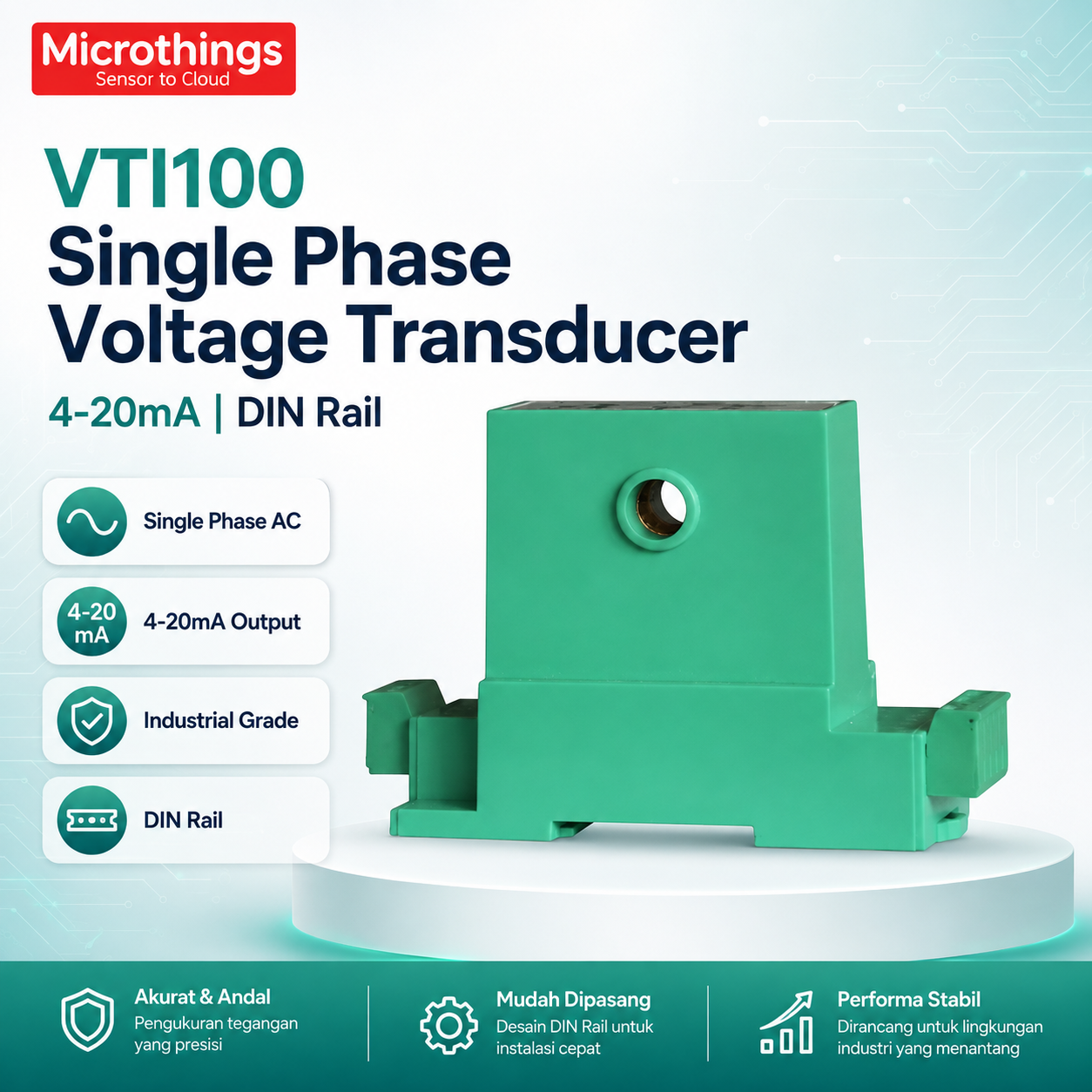

Single-phase Voltage Transducer With Analog Ouput 4-20mA
Model:VTI100
The VTI100 is special for single-phase AC power voltage measurement. It is an industrial class, high reliability, low-power consumption, high stability and high precision analog transducer.
Single-phase Voltage Transducer With Analog Ouput 4-20mA
Model:VTI100
The VTI100 is special for single-phase AC power voltage measurement. It is an industrial class, high reliability, low-power consumption, high stability and high precision analog transducer.
Introduction:
The VTI100 is special for single-phase AC power voltage measurement. It is an industrial class, high reliability, low-power consumption, high stability and high precision analog transducer.

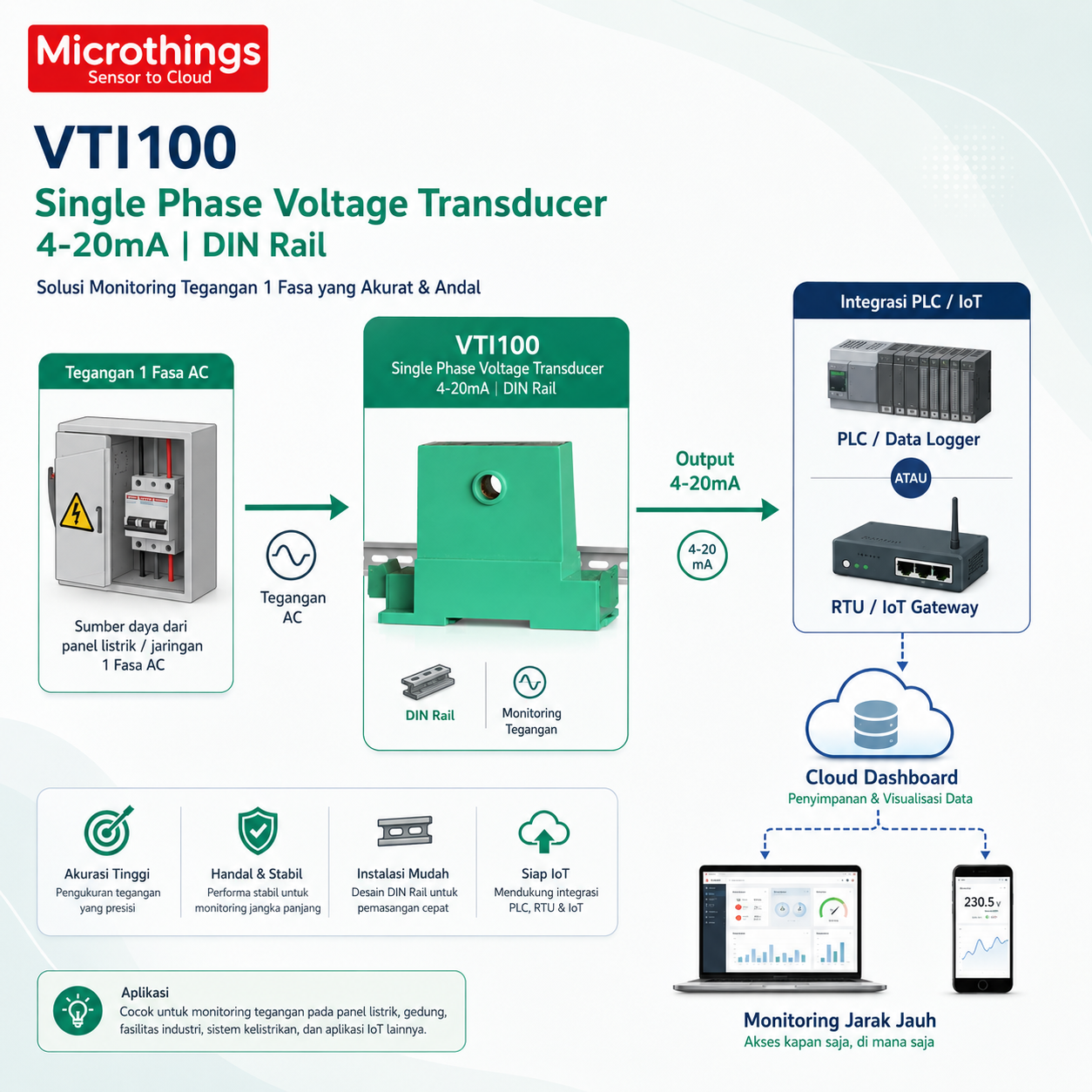

The VTI100 is used widely as a voltage measure of Base Transceiver Station, diesel generator rooms, engine room, transformer substations, telecommunication equipment rooms, power supply systems and so on.
The VTI100 with fire retardant shell, standard 35mm DIN rail mounting makes it easy to install in fields.
Specifications:
Please inform us the correct parameters from below specifications before you order this item.
Rated Power Input:Default:12VDC, Optional: 5VDC,15VDC, 24VDC;
Input Voltage:Default:0~500VAC, Optional: 0~275VAC;
Output Current:4-20mA;
Precision Class:Default:0.5%, Optional: 0.2%;
Isolation Voltage:>2500VDC;
Installation Type:standard 35mm DIN rail
Relative Humidity:0~98%RH.;
Operation Temperature:-10~55℃;
Dimension:96X76X38mm(HxWxD)
Net Weight:140g.
