Scattering Radiometer

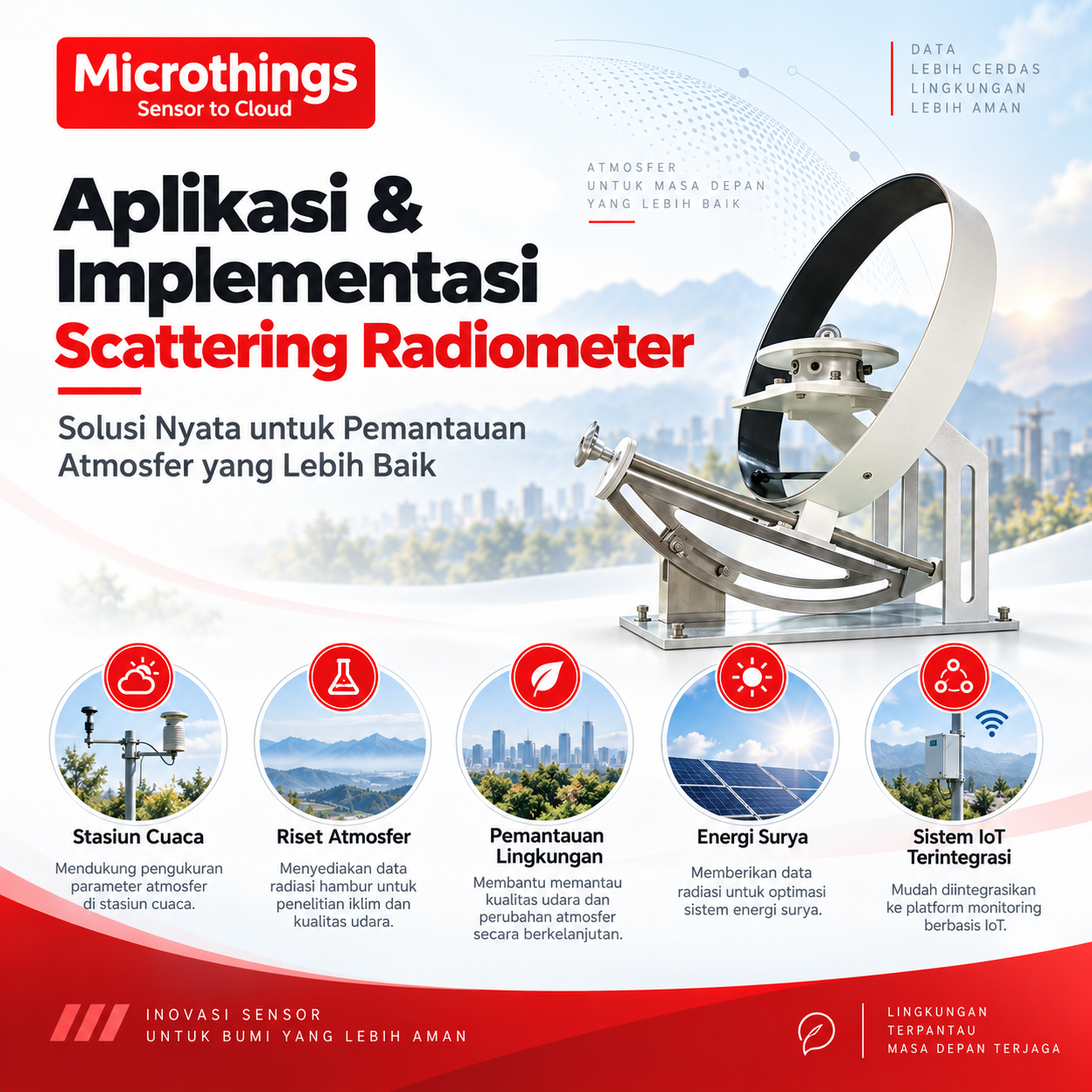

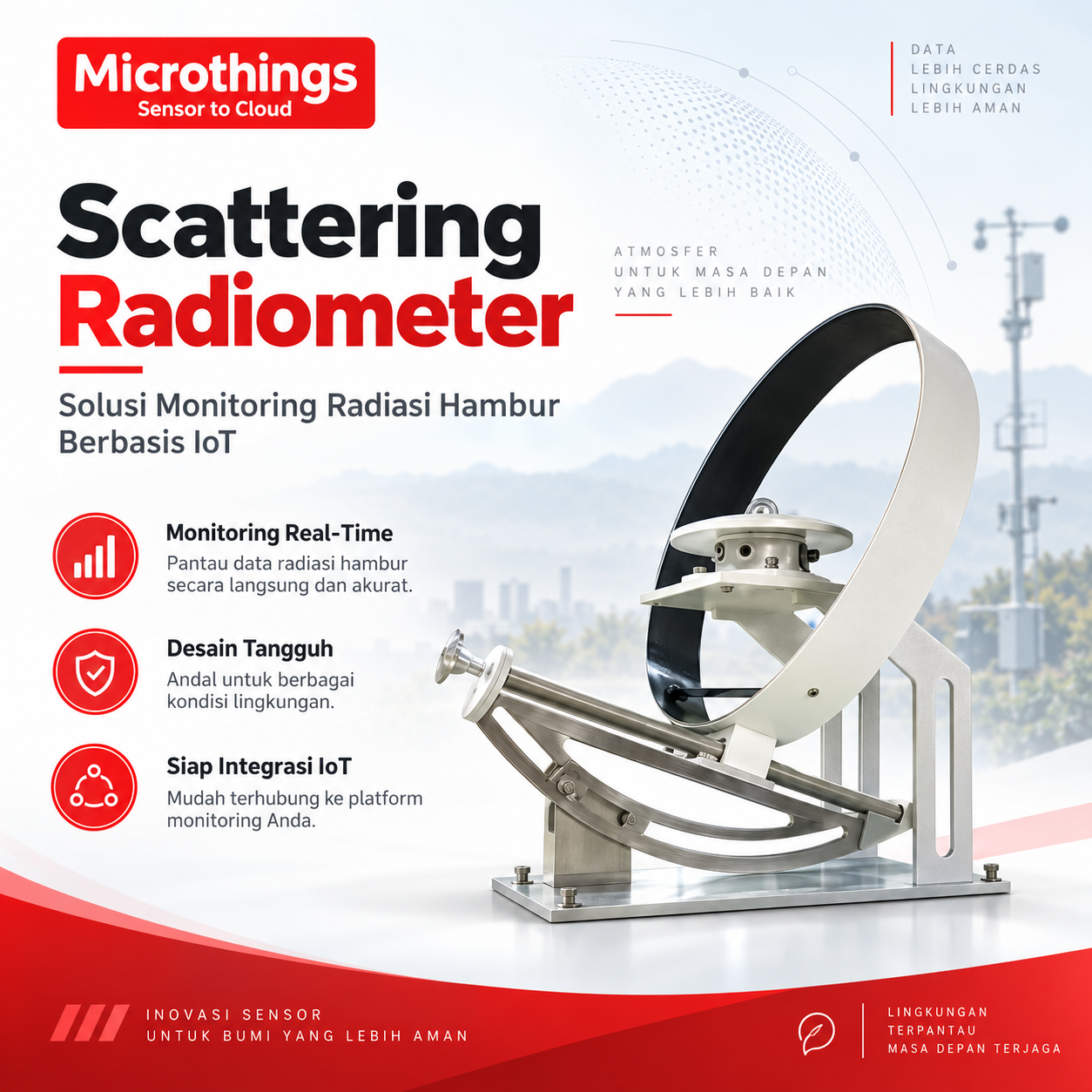

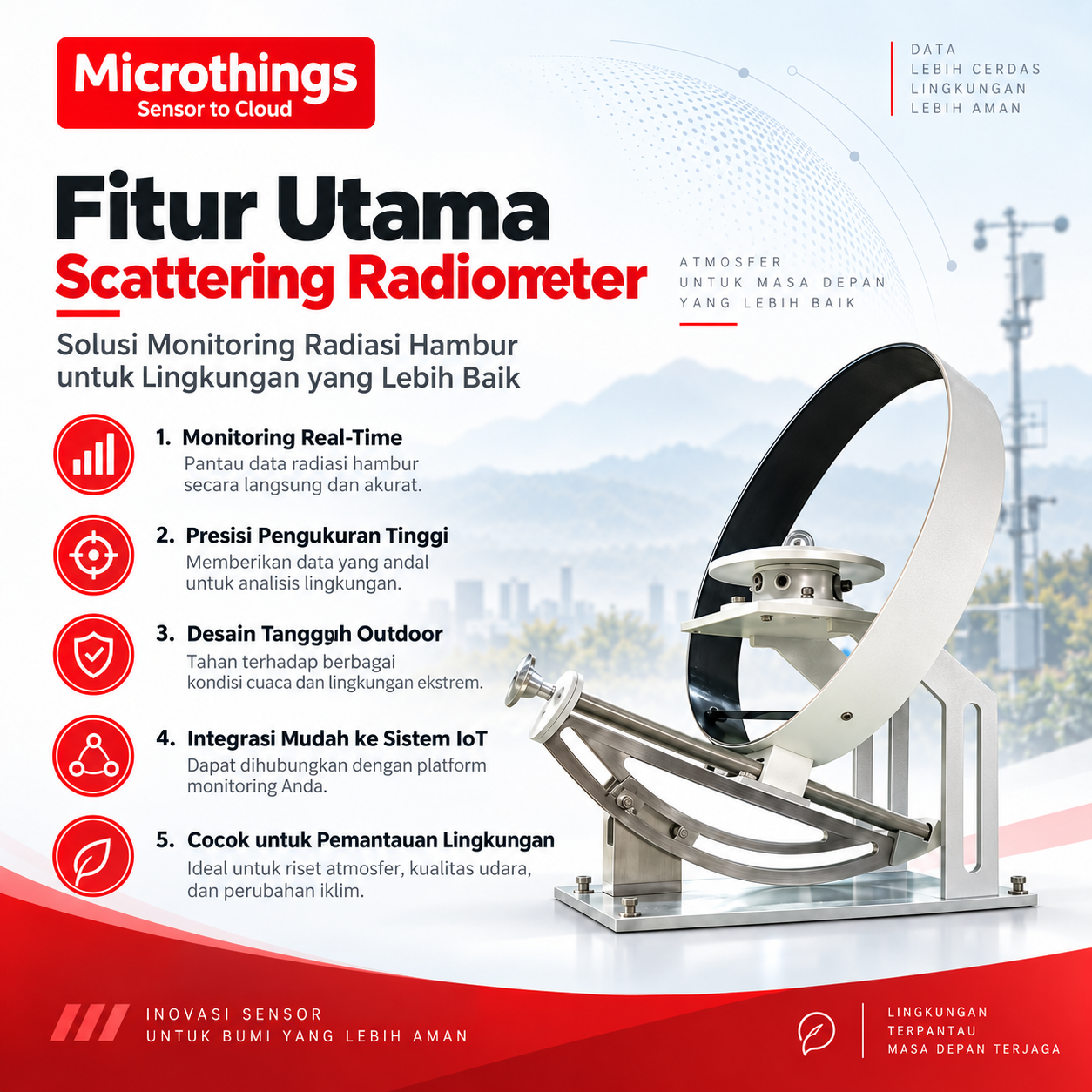

Scattering radiometer is composed of Pyranometer and shielding ring.The purpose of a shielding ring is to keep the sun’s direct radiation out from sunrise to sunset.The shielding ring is composed of shielding ring, ruler,adjusting screw, bracket and chassis.The width of the shielding ring is 65mm and the diameter is 400mm. The shielding ring is fixed on the screw rod adjustment spiral of the ruler, on which the latitude scale and declination scale are engraved.The ruler and bracket shall be fixed on the chassis according to the geographical latitude of the location.It can be widely used to continuously measure the scattered radiation intensity of the sky with meteorological stations and scientific research departments.

Rp13,800,000

Scattering radiometer is composed of Pyranometer and shielding ring.The purpose of a shielding ring is to keep the sun’s direct radiation out from sunrise to sunset.The shielding ring is composed of shielding ring, ruler,adjusting screw, bracket and chassis.The width of the shielding ring is 65mm and the diameter is 400mm. The shielding ring is fixed on the screw rod adjustment spiral of the ruler, on which the latitude scale and declination scale are engraved.The ruler and bracket shall be fixed on the chassis according to the geographical latitude of the location.It can be widely used to continuously measure the scattered radiation intensity of the sky with meteorological stations and scientific research departments.

Specification :
Spectral range : 280-3000nm
Supply : 12-24VDC
Range : 0-2000W/m2
Output : 0-5V,4-20mA,RS485
Sensitivity : 7-14μV*W-1*m2
Latitude scale range : 0~50°N or S
Red latitude : ±25°
Ring diameter : Φ400mm
Accuracy : <±2%
Response time : ≤30s(99%)
Stability : ±1%/year
Temperature effect : ±1%(-10℃-+40℃)
Operating temperature : -40℃-+80℃
Weight(unpacked) : 15kg
Ingress Protection : IP65
Storage Condition : 10℃-60℃@20%-90%RH

SKU: RK200-09 Category: Tag:
Weight 15 kg

Spectral range : 280-3000nm
Supply : 12-24VDC
Range : 0-2000W/m2
Output : 0-5V,4-20mA,RS485
Sensitivity : 7-14μV*W-1*m2
Latitude scale range : 0~50°N or S
Red latitude : ±25°
Ring diameter : Φ400mm
Accuracy : <±2%
Response time : ≤30s(99%)
Stability : ±1%/year
Temperature effect : ±1%(-10℃-+40℃)
Operating temperature : -40℃-+80℃
Weight(unpacked) : 15kg
Ingress Protection : IP65
Storage Condition : 10℃-60℃@20%-90%RH
