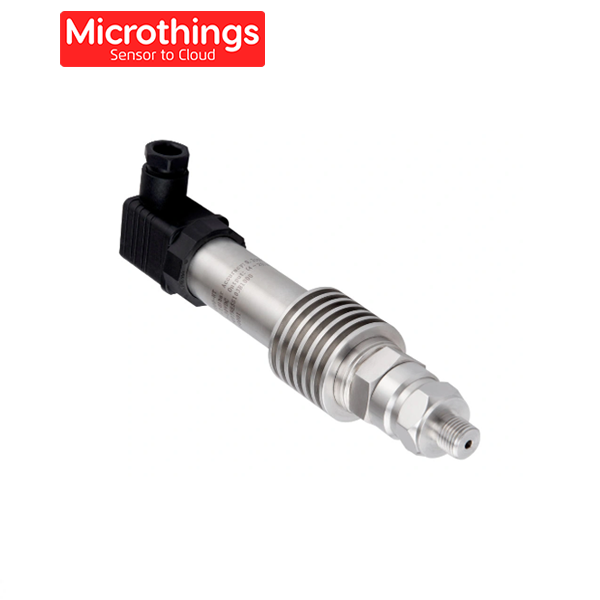

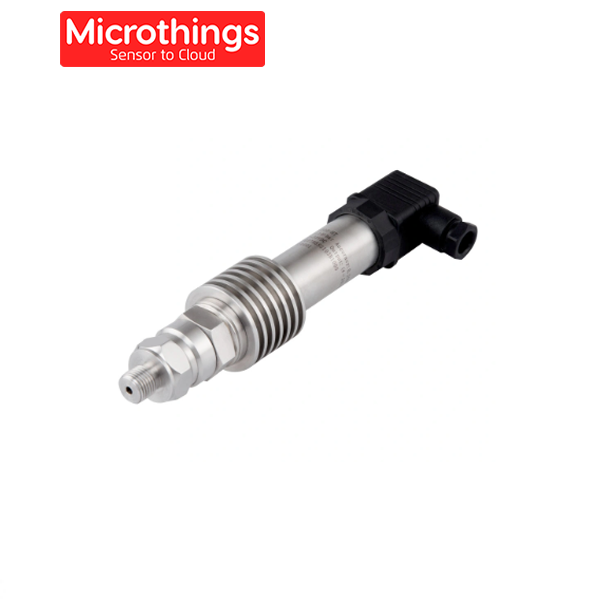

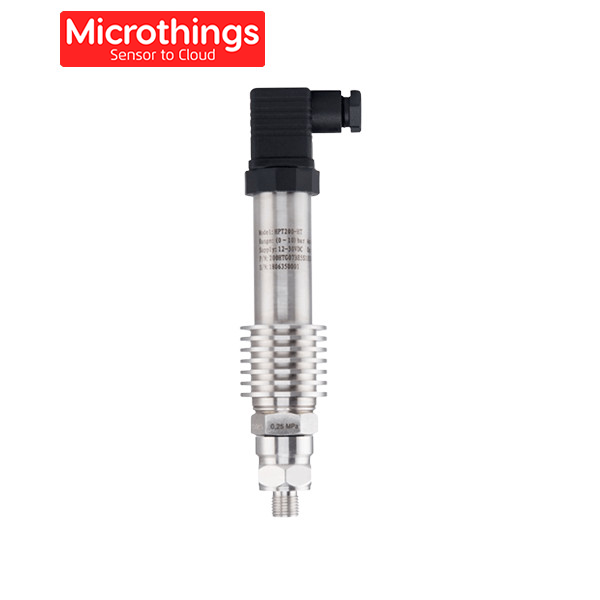

Pressure Sensor With High Temperature HPT200-HT


High temperature pressure sensor use high quality imported sputter film pressure sensor diaphragm and sapphire pressure sensors is suited for media temperatures up to 200°C.

Rp3,880,000

Pressure Sensor With High Temperature HPT200-HT

Model : HPT200-HT Pressure Sensor With High Temperature
High temperature pressure sensor use high quality imported sputter film pressure sensor diaphragm and sapphire pressure sensors is suited for media temperatures up to 200°C.

Technical Data
Pressure range :0~1 bar…2000 bar optional
Output :4~20mA ,0~5V/1~5V/0.5~4.5V
Power supply :12VDC~30VDC
Accuracy :0.5%F.S; 1%F.S optional
Pressure port :M20X1.5 male or by customized
Electronic Port :DIN Hirschman or directly cable IP67
Working temperature :-10°C~+125°C ,-60°C~+200°C
Temp Compensation :0~85°C; 0°C~100°C(customized)
Zero Temp Drift :0.03%FS/°C(≤100kPa), 0.02%FS/°C(>100kPa)
Overload :200%F.S
Burst Overload :400%F.S
Cooling device :with cooling device for max 125°C or 200°C
Certificate :CE,ExiaII CT6 Ga,ATEX,RoHS

Order information
Pressure range : 0-50 bar , Output : 4-20mA , Power supply : 12~30VDC,
Process connection : M20*1.5 male ,Electronic Connector : DIN Hirschman .
Noted : If Order Customized please Contact Us

Application :
Biotechnology
Food Industries
Medical,Pharmaceutical
Steam
Oil & Gas
Boiler industry

Weight 1000 kg

Technical Data
Pressure range :0~1 bar…2000 bar optional
Output :4~20mA ,0~5V/1~5V/0.5~4.5V
Power supply :12VDC~30VDC
Accuracy :0.5%F.S; 1%F.S optional
Pressure port :M20X1.5 male or by customized
Electronic Port :DIN Hirschman or directly cable IP67
Working temperature :-10°C~+125°C ,-60°C~+200°C
Temp Compensation :0~85°C; 0°C~100°C(customized)
Zero Temp Drift :0.03%FS/°C(≤100kPa), 0.02%FS/°C(>100kPa)
Overload :200%F.S
Burst Overload :400%F.S
Cooling device :with cooling device for max 125°C or 200°C
Certificate :CE,ExiaII CT6 Ga,ATEX,RoHS
