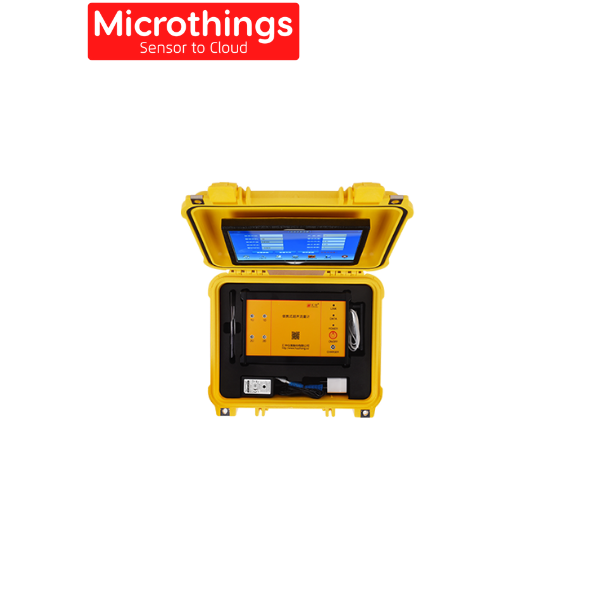

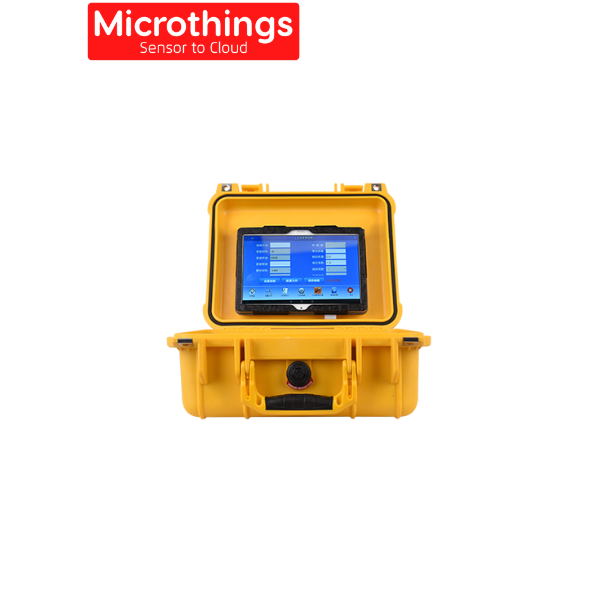

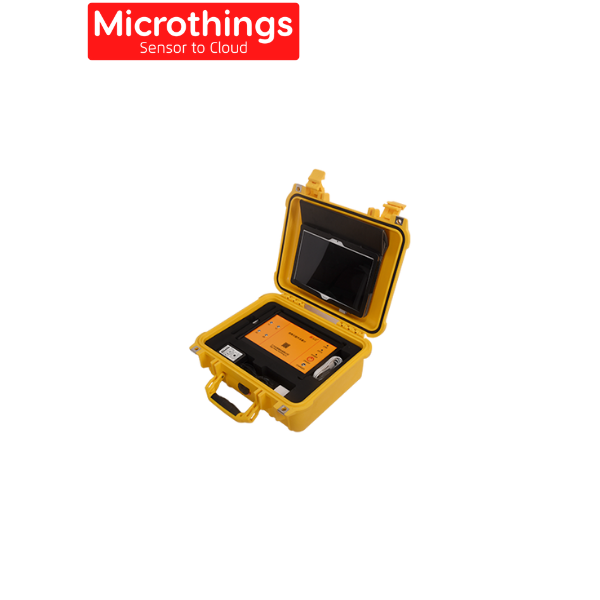

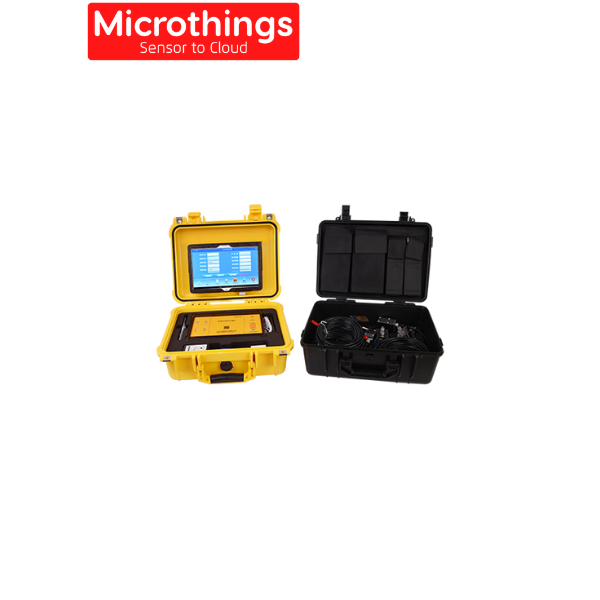

Pengukur Aliran Ultrasonik Portabel SCL-83

Technical Spesification :
Number of Sonic Channels: 2/4-channels (selectable)
Accuracy Class: Class 0.5/Class 1.0
Measuring Range: Nominal Diameter DN80~DN2000
Velocity Range: 0m/s~12m/s(Vt=0.3m/s)
Medium: Water, sewage or other homogeneous fluids in full pipe flow, suspended solid content<10g/L

Power Supply:
Main Unit : Internal lithium battery power, one battery can work continuously between 12 and 16 hours
Main Unit Charger: AC powered, 220V±10%, 50Hz
Display Analyzer :Internal battery powered, one battery can work continuously over 9 hours
Display Analyzer Charger: AC powered, 220V±10%, 50Hz

Working Environment:
Flow Main Unit: Environment temperature: -10°C~45°C, Relative humidity: ≤85% (RH)
Flow Display Analyzer :Environment temperature: -20°C~45°C

Transducer:
Medium Temperature: 4~90℃
Environment Temperature: -40~70℃
Protection Class: IP68
Cable Length: 6m

Fitur:
1. Sensor suhu klip eksternal digunakan untuk mengukur pasokan & mengembalikan suhu air dari pipa pemanas (pendingin), dan pengukuran kuantitas panas (pendinginan) portabel direalisasikan.
2. Dengan antarmuka khusus untuk kalibrasi online flow meter pipa, kalibrasi online sederhana dan mudah.
3. Bertenaga baterai, teknologi konsumsi daya mikro, dapat terus bekerja selama 16 jam.
4. Mainframe dan display analyzer terintegrasi dengan transmisi data nirkabel Wi-Fi, meningkatkan fleksibilitas pengoperasian.
5. Dengan layanan cloud, perangkat lunak sistem dapat diperbarui kapan pun diperlukan.

Keuntungan:
1. Teknologi pengukuran aliran ultrasonik dengan desain multi-saluran dan diameter besar, meningkatkan akurasi di bawah rezim aliran yang kompleks.
2. Kelas akurasi tinggi (kelas 0,5).
3. Teknologi pengukuran waktu resolusi tinggi dan teknologi pemrosesan digital sinyal ultrasonik digunakan untuk memastikan keandalan data.

Manfaat:
Sangat cocok untuk verifikasi online flowmeter pipa, deteksi kebocoran pipa, manajemen hemat air, dan inspeksi aliran. Ini juga cocok untuk pengukuran aliran dan panas dari berbagai saluran pipa.

Weight 10 kg

Technical Spesification :
Number of Sonic Channels: 2/4-channels (selectable)
Accuracy Class: Class 0.5/Class 1.0
Measuring Range: Nominal Diameter DN80~DN2000
Velocity Range: 0m/s~12m/s(Vt=0.3m/s)
Medium: Water, sewage or other homogeneous fluids in full pipe flow, suspended solid content<10g/L

Power Supply:
Main Unit : Internal lithium battery power, one battery can work continuously between 12 and 16 hours
Main Unit Charger: AC powered, 220V±10%, 50Hz
Display Analyzer :Internal battery powered, one battery can work continuously over 9 hours
Display Analyzer Charger: AC powered, 220V±10%, 50Hz

Working Environment:
Flow Main Unit: Environment temperature: -10°C~45°C, Relative humidity: ≤85% (RH)
Flow Display Analyzer :Environment temperature: -20°C~45°C

Transducer:
Medium Temperature: 4~90℃
Environment Temperature: -40~70℃
Protection Class: IP68
Cable Length: 6m
