Sensor and Detector, Smoke Detector

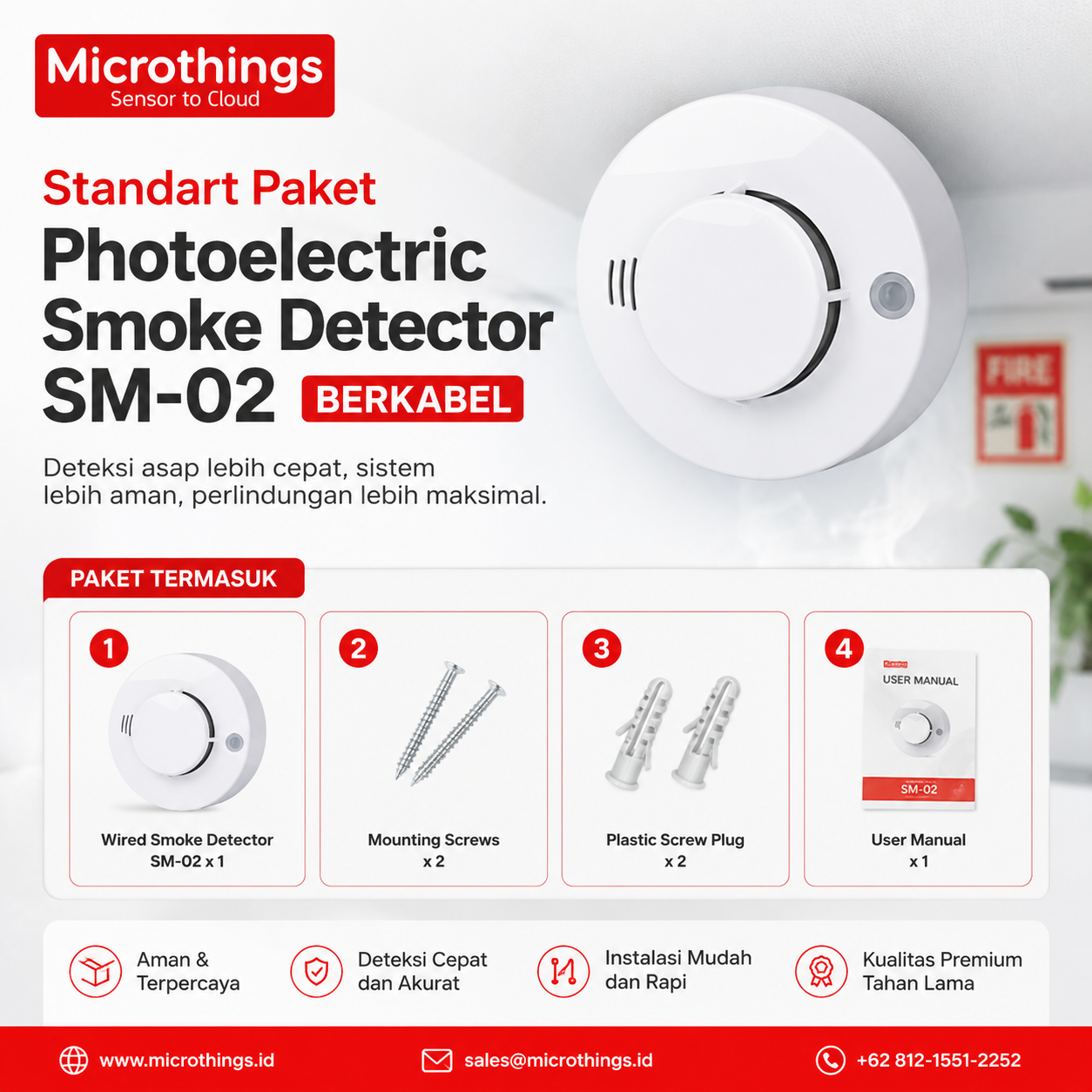

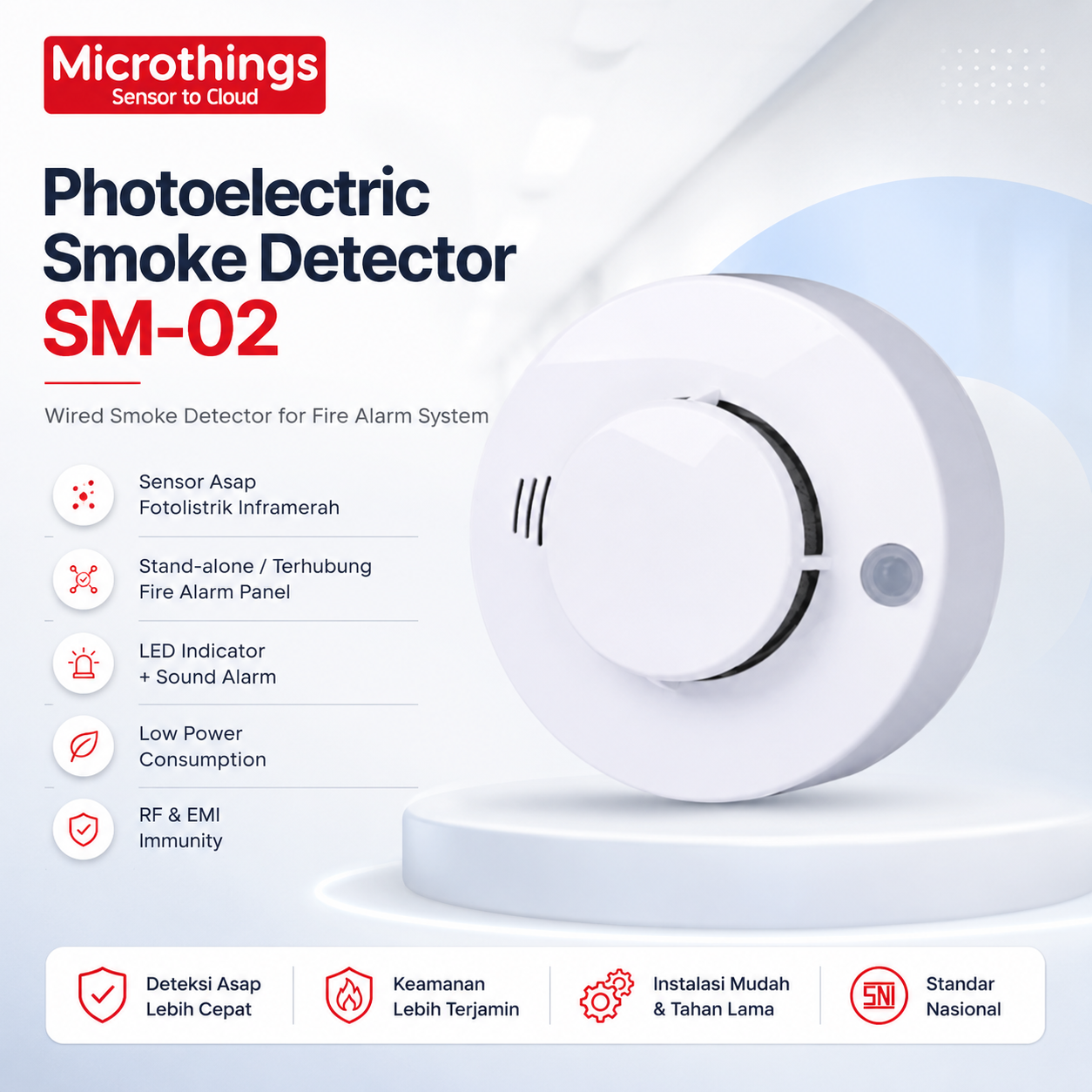

Photoelectric Smoke Detector
Photoelectric Smoke Detector

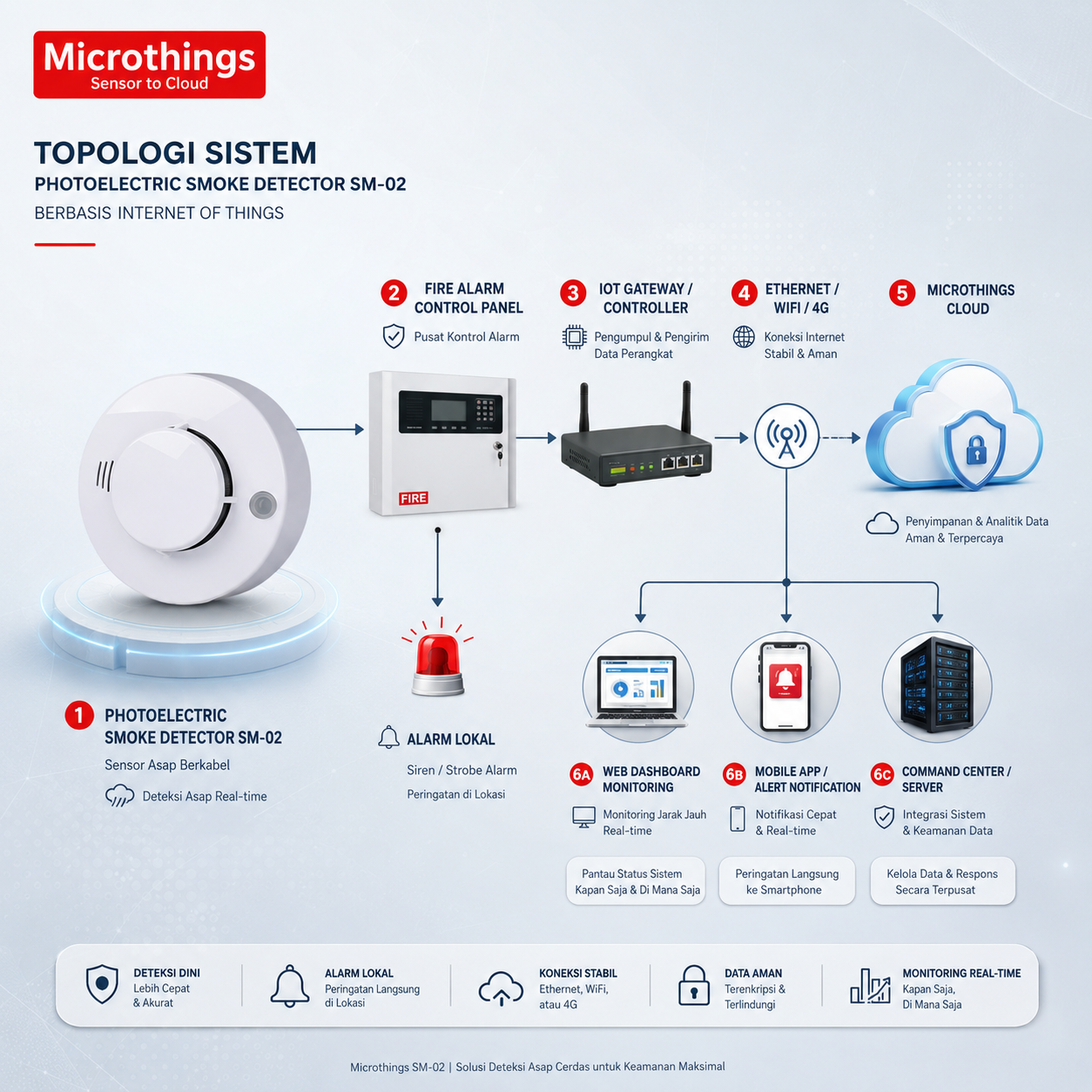

The Wired Smoke Detector is an INPUT DEVICE used for fire detection which is triggered by smoke. The SM-02 is photoelectric type. It can use independently or as a front-end detector of an alarm system. Upon detection of smoke, the SM-02 automatically generates an alarm signal to control panel and sound & flash alarm. The unit is RF and EMI Immunity to interferences produced by radio device.

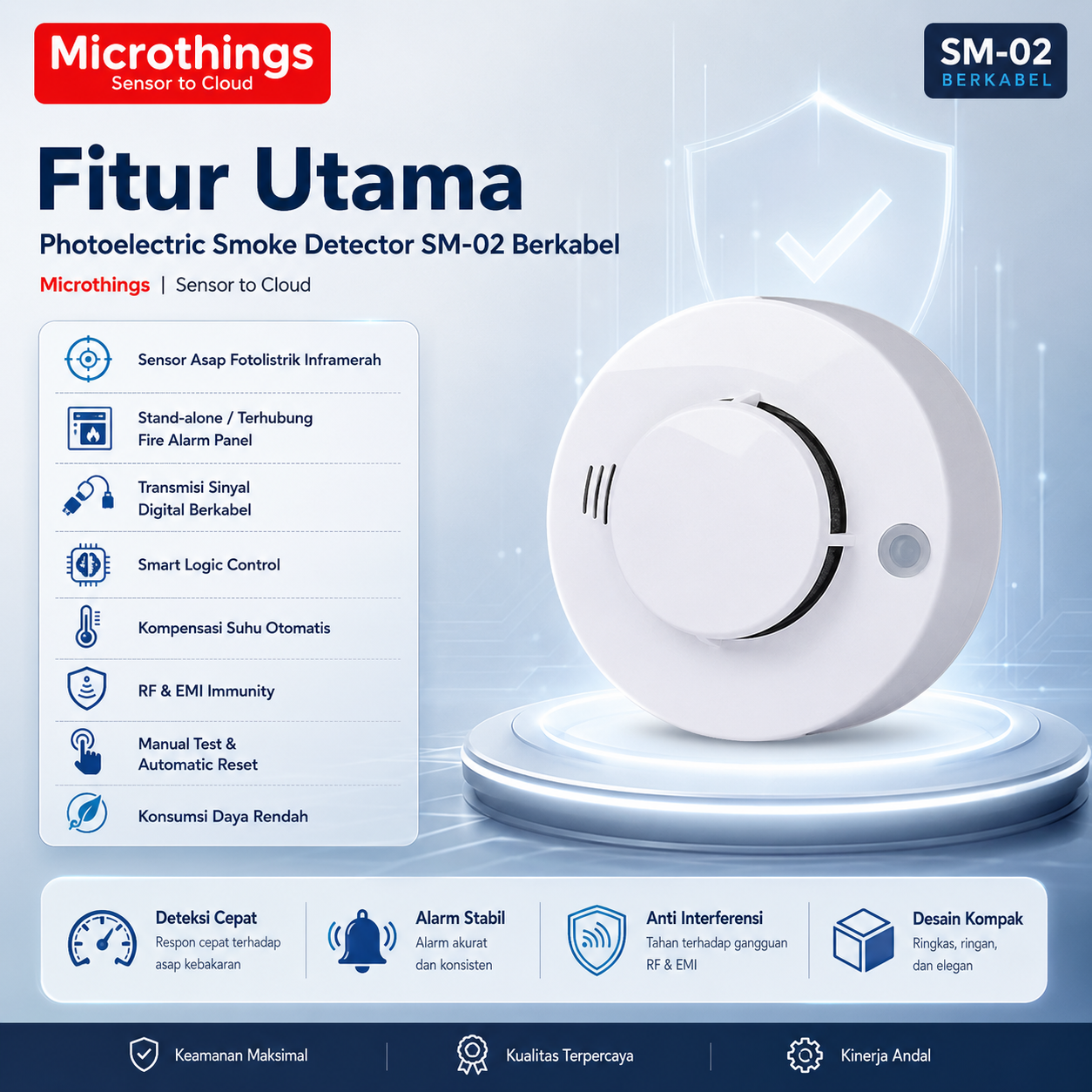

Product Features
Newly-developed Infrared photoelectric smoke sensor unit inside;
Independently or as a front-end detector of an alarm system;
Wired transmitting digital signal to control panel;
Intelligent logic control, eliminate false alarm;
Microcontroller temperature analysis and Automatic temperature compensation for best summertime detection;
Tightly-mated bug guard to protect the sensor optics from insects, spiders and dust, Worm, it is dustproof, mothproof and anti-white light;
Strong adaptability to circumstance requirements;
SMT adopted, RF and EMI Immunity;
Manual test, auto-reset, and low power consumption;
Thin structure design;
Alarm output contacts of relay: N.C./ N.O. optional.
Rp298,000
Photoelectric Smoke Detector
The Wired Smoke Detector is an INPUT DEVICE used for fire detection which is triggered by smoke. The SM-02 is photoelectric type. It can use independently or as a front-end detector of an alarm system. Upon detection of smoke, the SM-02 automatically generates an alarm signal to control panel and sound & flash alarm. The unit is RF and EMI Immunity to interferences produced by radio device.
Product Features
Newly-developed Infrared photoelectric smoke sensor unit inside;
Independently or as a front-end detector of an alarm system;
Wired transmitting digital signal to control panel;
Intelligent logic control, eliminate false alarm;
Microcontroller temperature analysis and Automatic temperature compensation for best summertime detection;
Tightly-mated bug guard to protect the sensor optics from insects, spiders and dust, Worm, it is dustproof, mothproof and anti-white light;
Strong adaptability to circumstance requirements;
SMT adopted, RF and EMI Immunity;
Manual test, auto-reset, and low power consumption;
Thin structure design;
Alarm output contacts of relay: N.C./ N.O. optional.
| Weight | 500 g |
|---|
Specifications:
Operating Voltage : DC9V-16V
Standby Current : less than 3mA
Alarm Current : less than 25mA
RF Immunity : > 20 V/m 10 1000 MHz
Sensitivity : class I, 3%/m
White Light Immunity : > 8000 lux
Noise(Vp-p) : 200mV , (mVp-p)(25C)
Alarm Output : NC or NO, sound & flash alarm,85dB@1m
Alarm Volume : 80 square meters (with the installation height of 6m-12m), and 60 square meters (with the installation height of less than 6m)
Temperature Range : -10C to +50C
Relative Humidity : Less than 95% (25 )
Installation Mode : Ceiling Mounted
Housing : High-impact ABS
Dimensions : 100mm x 43mm (Dia.xH)

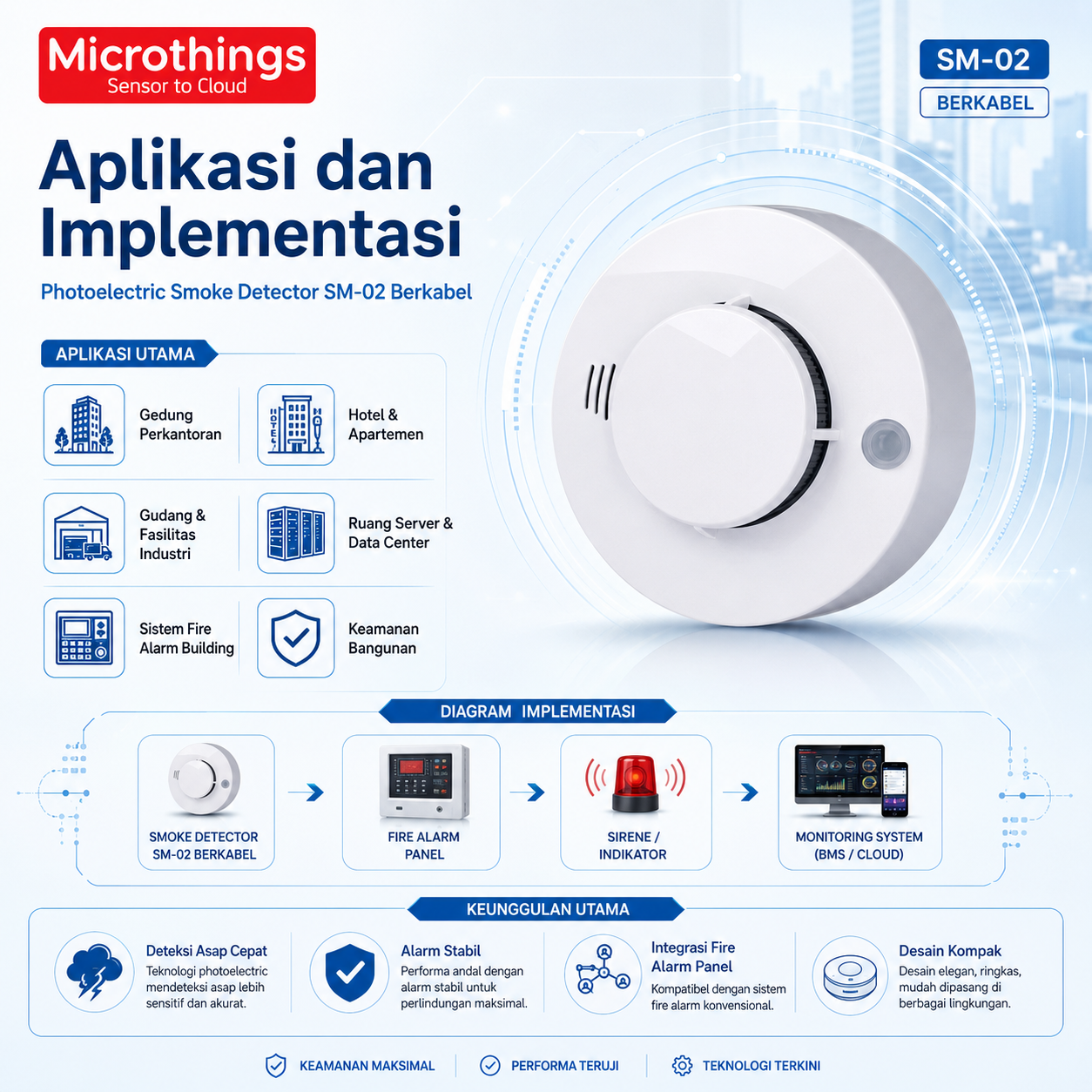

Applications
For indoor use.
Based on 0 reviews
Be the first to review “Photoelectric Smoke Detector”
Related products
-
Sensor and Detector, Vibration Sensor
Wired Vibration Sensor
This is the perimeter protection for the wall or glass or and other buildings. The vibration sensor is usually installed on doors and windows and walls. The vibration sensor operates on the principle that when the door or window or walls vibrated by the intruder shock or dig, will trigger a signal to alarm system.
Introduction :
This is the perimeter protection for the wall or glass or and other buildings. The vibration sensor is usually installed on doors and windows and walls. The vibration sensor operates on the principle that when the door or window or walls vibrated by the intruder shock or dig, will trigger a signal to alarm system. The vibration sensor is popular and widely used because they detect an intruder before he enters the protected premises.SKU: VS-01Rp298,000 -
Sensor and Detector, PIR Motion Detector
Four Beam Active Photoelectric Detector
Four Beam Active Photoelectric Detector
4-Beam Active Photoelectric Detector. The Active photoelectric Beam detectors are perimeter intrusion detector for outdoor application, E.g.: fence, wall, outside. In standby mode, the photoelectric beams will create some invisible infrared rays. Once anybody pass through them, the invisible infrared rays will be block, and create alarm signal then send to the alarm control panel.
Introduction:
The Active photoelectric Beam detectors are perimeter intrusion detector for outdoor application, E.g.: fence, wall, outside.
In standby mode, the photoelectric beams will create some invisible infrared rays. Once anybody pass through them, the invisible infrared rays will be block, and create alarm signal then send to the alarm control panel.SKU: ABH-250Rp1,900,000 -
Smoke Detector

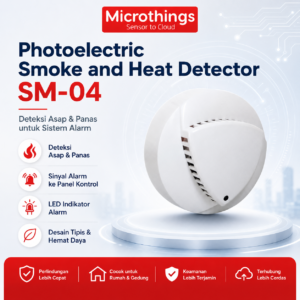

Photoelectric Smoke and Heat Detector
