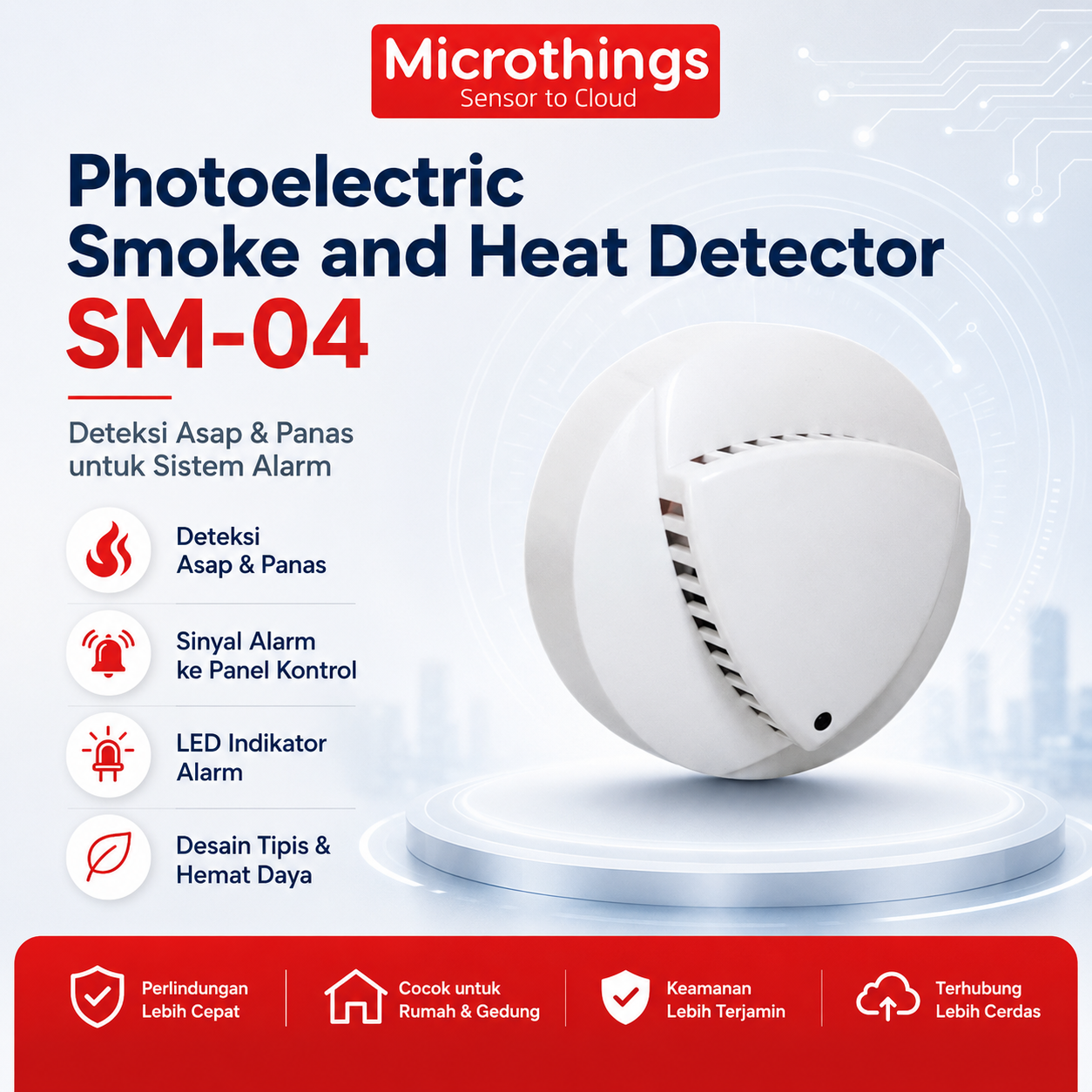

Photoelectric Smoke and Heat Detector


Compare

Photoelectric Smoke and Heat Detector

The Wired Smoke Detector is an INPUT DEVICE used for fire detection which is triggered by smoke and heat.

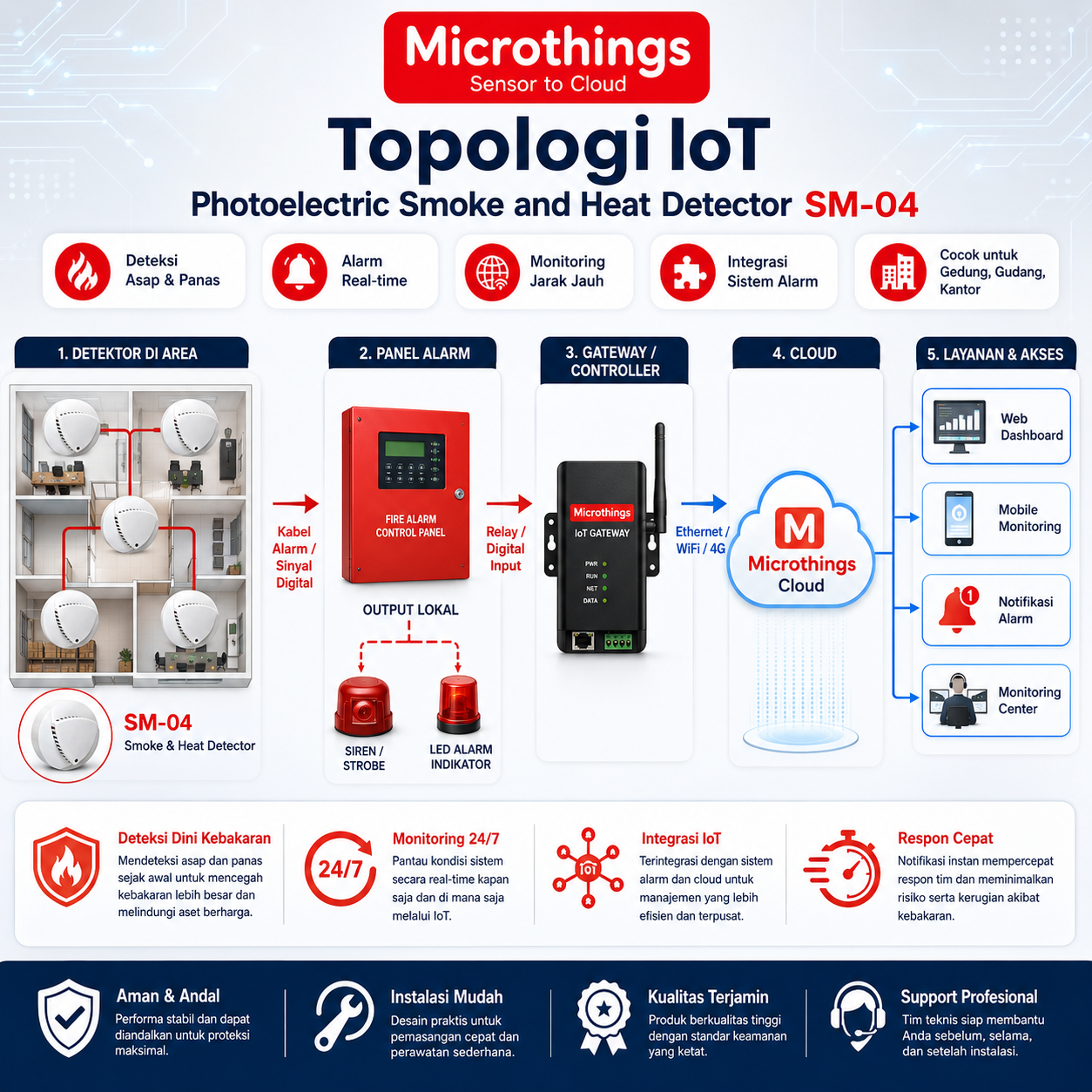

The SM-04 is photoelectric type. It can use independently or as a front-end detector of an alarm system.
Upon detection of smoke and heat, the SM-04 automatically generates an alarm signal to control panel and Led indication alarm

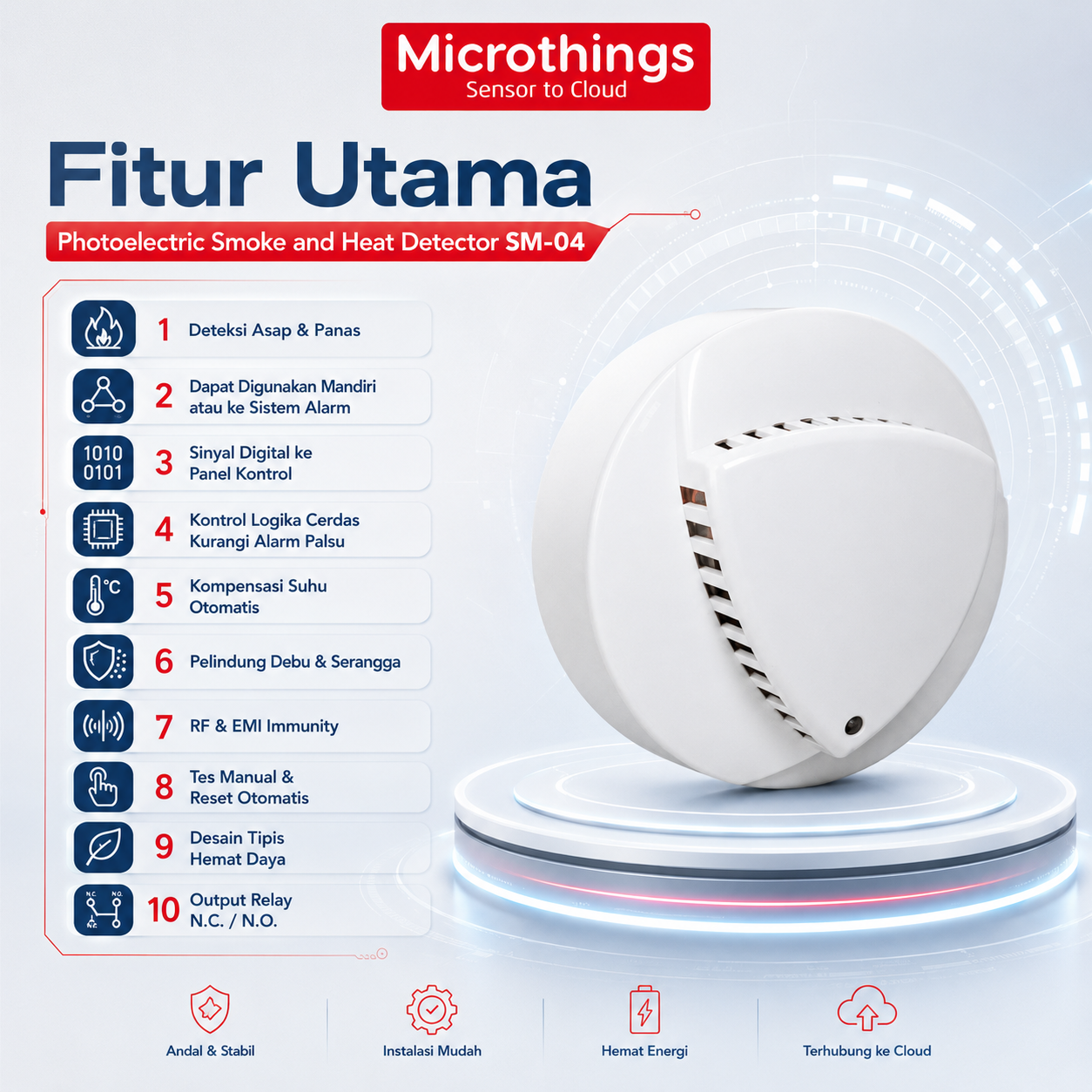

Product Features
1. Newly-developed photoelectric Smoke & Heat sensor unit inside;
2. Independently or as a front-end detector of an alarm system;
3. Wired transmitting digital signal to control panel;
4. Intelligent logic control, eliminate false alarm;
5. Microcontroller temperature analysis and Automatic temperature compensation for best summertime detection;
6. Tightly-mated bug guard to protect the sensor optics from insects, spiders and dust, Worm, it is dustproof, mothproof and anti-white light;
7. Strong adaptability to circumstance requirements;
8. SMT adopted, RF and EMI Immunity;
9. Manual test, auto-reset, and low power consumption;
10. Thin structure design;
11. Alarm output contacts of relay: N.C./ N.O. optional.

Rp259,000

Photoelectric Smoke and Heat Detector

The Wired Smoke Detector is an INPUT DEVICE used for fire detection which is triggered by smoke and heat.
The SM-04 is photoelectric type. It can use independently or as a front-end detector of an alarm system.
Upon detection of smoke and heat, the SM-04 automatically generates an alarm signal to control panel and Led indication alarm

Product Features
1. Newly-developed photoelectric Smoke & Heat sensor unit inside;
2. Independently or as a front-end detector of an alarm system;
3. Wired transmitting digital signal to control panel;
4. Intelligent logic control, eliminate false alarm;
5. Microcontroller temperature analysis and Automatic temperature compensation for best summertime detection;
6. Tightly-mated bug guard to protect the sensor optics from insects, spiders and dust, Worm, it is dustproof, mothproof and anti-white light;
7. Strong adaptability to circumstance requirements;
8. SMT adopted, RF and EMI Immunity;
9. Manual test, auto-reset, and low power consumption;
10. Thin structure design;
11. Alarm output contacts of relay: N.C./ N.O. optional.



Weight 500 g

Specifications:
1. Operating Voltage : DC9V-35V
2. Standby Current : NC12mA ; NO2mA
3. Alarm Current : NC3mA ; NO15mA
4. RF Immunity : > 20 V/m 10 1000 MHz
5. Sensitivity : class I, 3%/m
6. White Light Immunity : > 8000 lux
7. Noise(Vp-p) : <200mV, (mVp-p)(25C)
8. Alarm Temperature : 57 (135F)
9. Alarm Output : NC or NO, Led indication
10. Alarm Volume : 80 square meters (with the installation height of 6m-12m), and 60 square meters (with the installation height of less than 6m)
11. Temperature Range : -10C to +50C
12. Relative Humidity : Less than 95% (25 )
13. Installation Mode : Ceiling Mounted
14. Housing : High-impact ABS
15. Dimensions : 100mm x 46mm ()

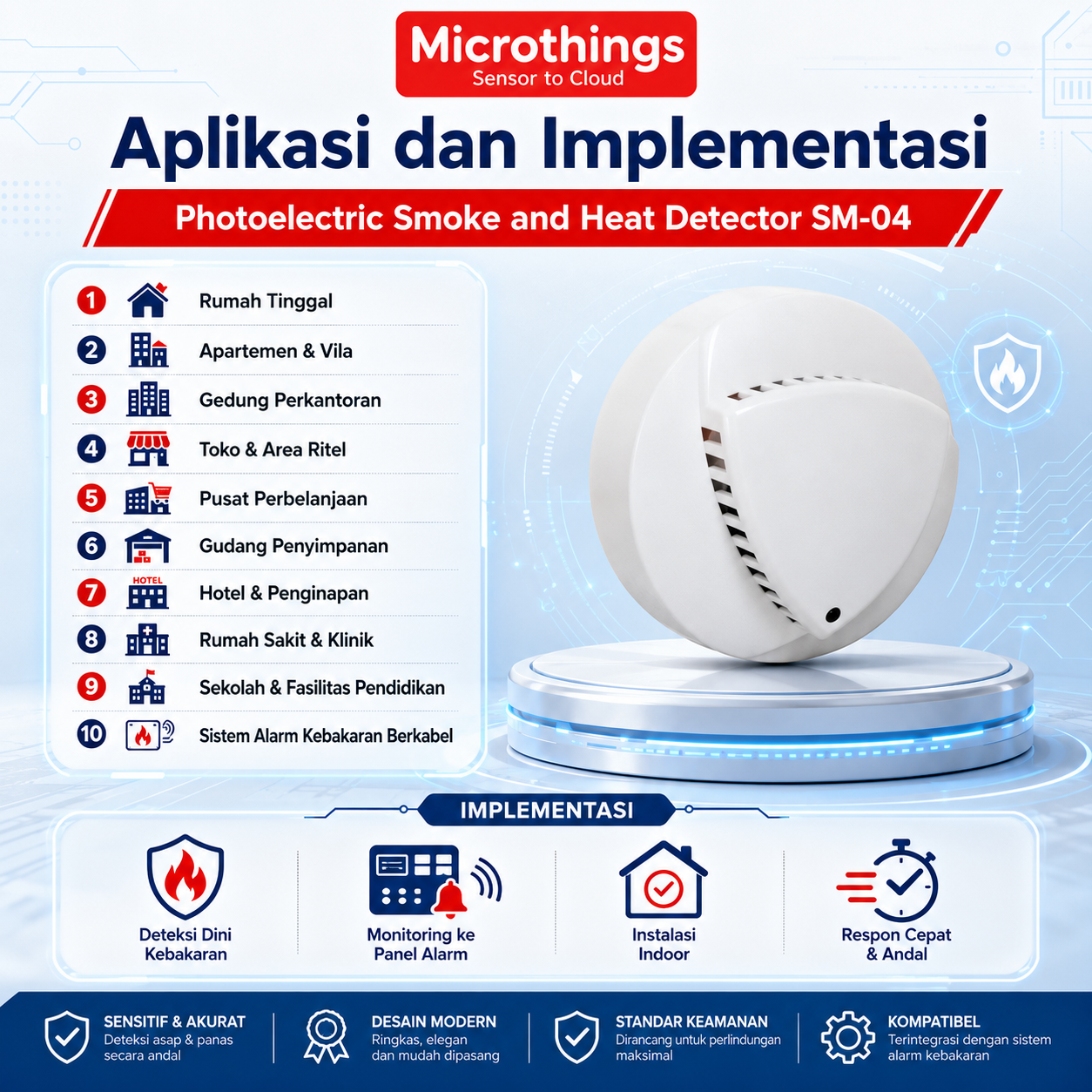

16. Applications : For indoor use.
