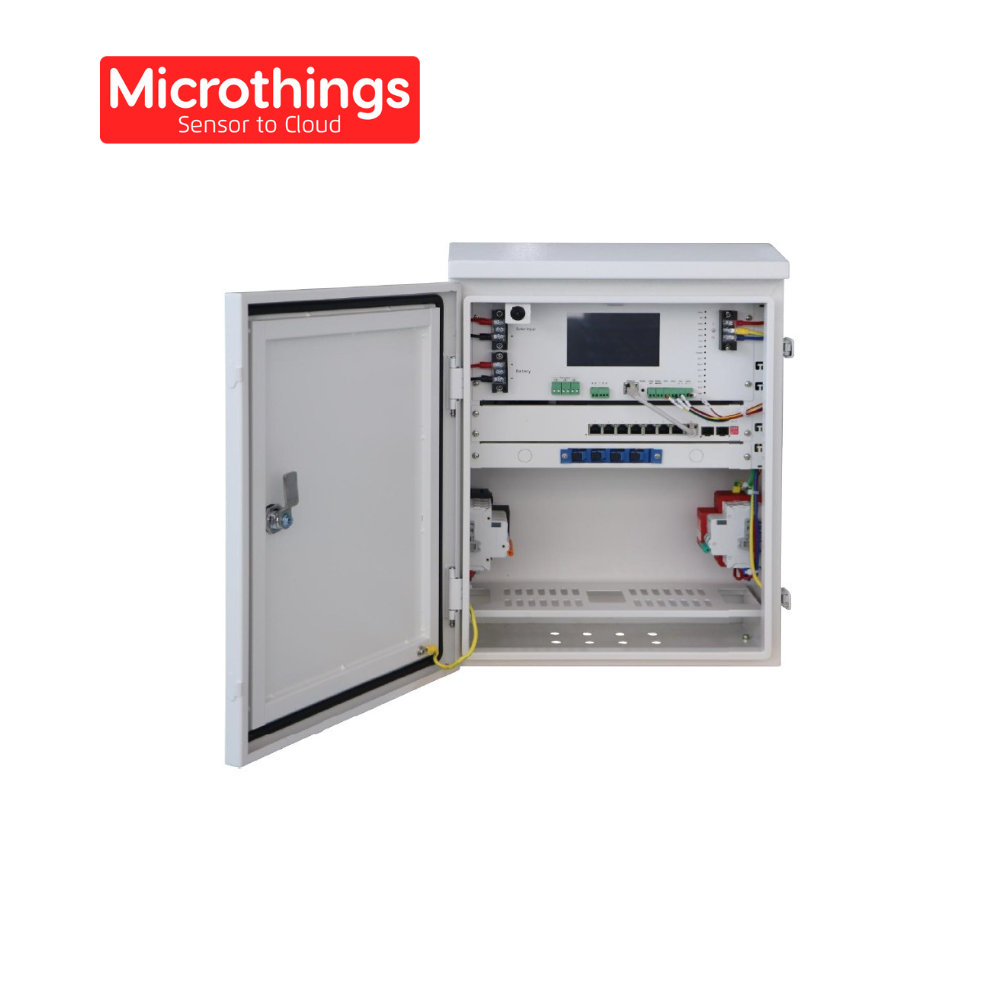

Outdoor smart solar AC powered box

Outdoor smart solar AC powered box adalah kotak pintar luar ruangan bertenaga surya/AC, yang ditenagai oleh tenaga surya, AC, dan baterai, dengan modul daya, sakelar PoE, MPPT, layar, pemutus sirkuit, penangkal petir, dll. Dapat mengisi daya baterai dengan AC atau tenaga surya.

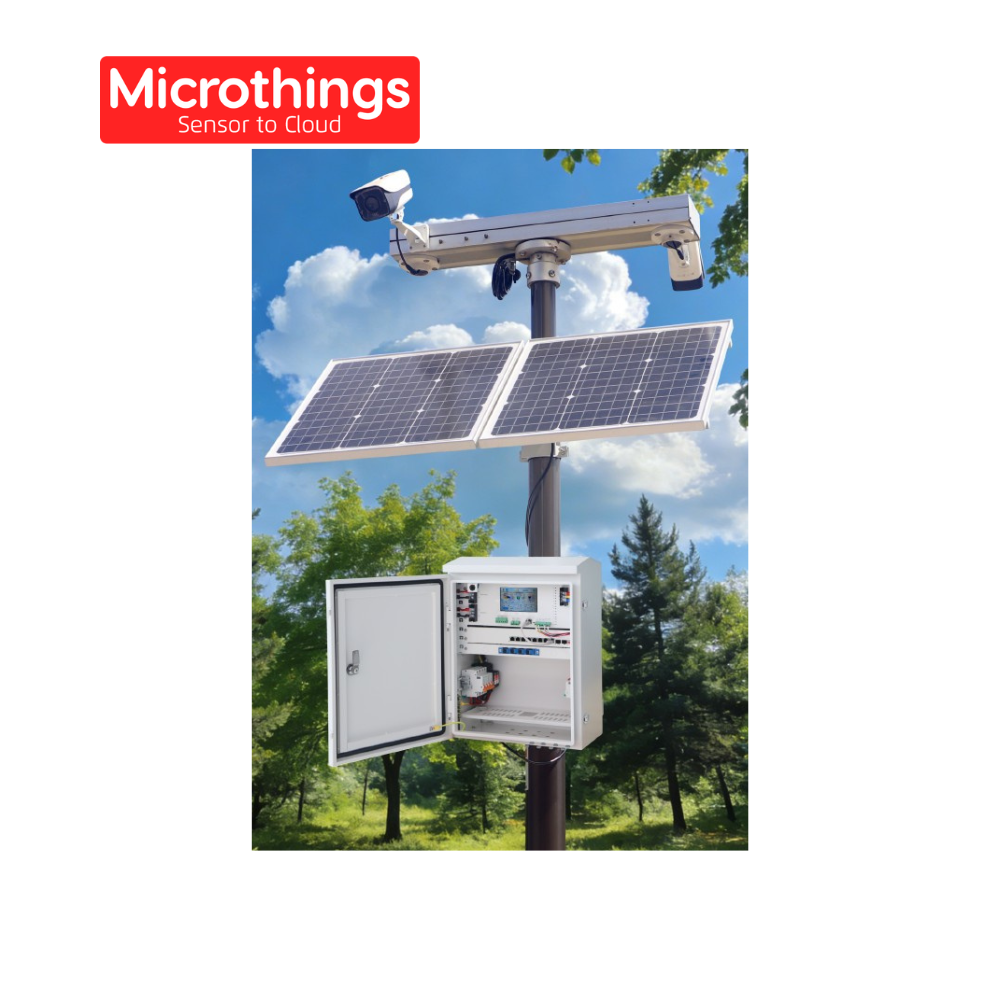

Dapat diaplikasikan untuk pemantauan pengawasan, pemantauan hutan, dll.

Features

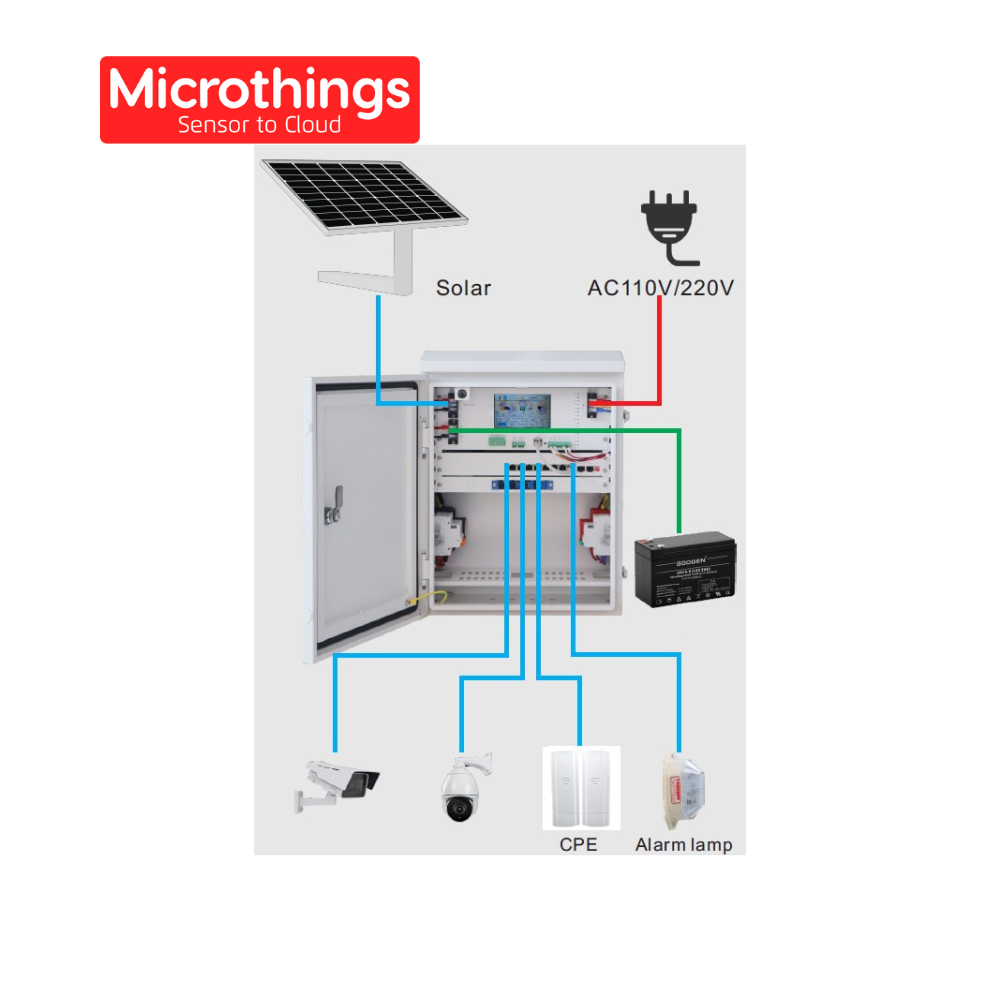

Support 220V AC power, solar, battery power input, default solar priority;
Support 24V DC battery, can use AC or solar charge the battery;
Provide 12V DC 3 channels power output, can remotely control, detect the output voltage and current;
With 810/100M PoE downlink ports and 21000M SFP uplink ports switch;
The switch provides three modes of Extend, Default and VLAN to adapt to various complex environments;
The box adopts waterproof, anti-rust treatment, suitable for long time outdoor use;
With software platform, can check and control remotely.

Hardware specification :

Box：
Parameter : Specifications
Solar input : Solar input <100VDC (the voltage must greater than battery)
AC input : 100-240VAC input, 50/60Hz, 10A
Battery : DC 24V(customer provided)
Power module : 100-240VAC input, DC54V output, 300W

MPPT
Battery voltage:12V/24V;
Solar input voltage:<100V;
MPPT efficiency:>99%;
Rated discharge current:20A；
Rated charge current:20A

Booster : 24VDC input, DC54V output, 200W1
DC output : 12V DC output 3 channels, single channel current 3A max, can control remotely, voltage is equivalent battery voltage(with backup power);
RS232 : Standard RS232 interface
RS485 : Standard RS485 interface
Alarm input : 3 channels, dry-connector input channel 1 is default for the door open/closed detected
10/100 network port : 110/100Base-TX
Reset key : >5s press recovery to factory default
LCD screen : 5 inches, 5V, RS-232,
Resolution ratio : 800480
Fiber tray : 4SC
Working temperature : -20℃~70℃
Storage temperature : -40℃~85℃
Humidity : 0~95%(No condensation)
Dimension(H×W×D) : 500mm×380mm×220mm
Material : Metal
Colour : White
Net-weight : 15KG

Switch：
Parameter : Specifications
Consumption : Self consumption<5W, PoE output 190W max.
Downlink ports : 1~8 ports: 10/100Base-TX 30W PoE RJ45(IEEE802.3af/at PSE) ports
Uplink ports : 9~10 ports: 1000Base-X SFP ports

Working mode
Extend mode: ports 1 ~ 8 Extend up to 250m;1 ~ 8 ports are isolated from each other and can only
communicate with the uplink ports; restrain the network storm; turn off the flow control.
Default mode: normal switch mode.
VLAN mode: ports 1 ~ 8 are isolated from each other and can only communicate with the
uplink port; restrain the network storm; turn off the flow control.
Cable and distance Use : cat5e/6,100m max.(Extend mode max.250m)
Standard : IEEE802.3, IEEE802.3u, IEEE802.3z
Switch fabric : 5.6Gbps
Though put : 4.2Mpps
Buffer 12KB
MAC : address table 4K
Indicator : Power: 1 *red ;
