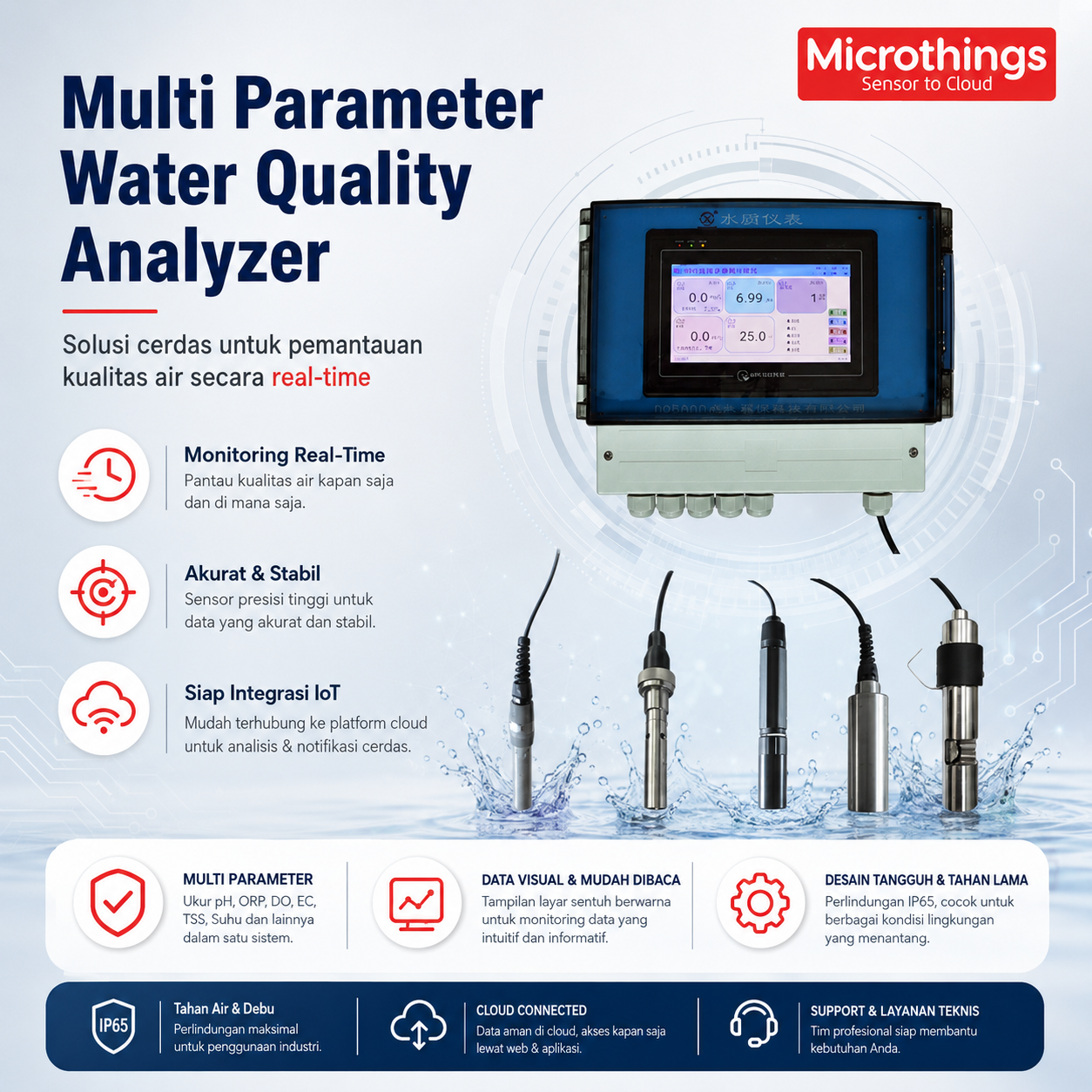

Multi Parameter Water Quality Analyzer


Multi Parameter Water Quality Analyzer dapat mendeteksi 5 parameter pada saat yang sama dalam satu pengontrol, dengan kecerdasan dan fleksibilitas tinggi, banyak digunakan dalam penyediaan air, kota, pertanian, dan industri lainnya.
Sensor yang Tersedia: Suhu, PH / ORP, Oksigen Terlarut, Konduktivitas / TDS / Salinitas, Kekeruhan, TSS, Amonia, COD, sensor level, dan sebagainya.

Rp85,900,000

Multi Parameter Water Quality Analyzer dapat mendeteksi 5 parameter pada saat yang sama dalam satu pengontrol, dengan kecerdasan dan fleksibilitas tinggi, banyak digunakan dalam penyediaan air, kota, pertanian, dan industri lainnya.
Sensor yang Tersedia: Suhu, PH / ORP, Oksigen Terlarut, Konduktivitas / TDS / Salinitas, Kekeruhan, TSS, Amonia, COD, sensor level, dan sebagainya.

Fitur
Dapat dihubungkan dengan sensor analog atau digital, siap dirakit menjadi instrumen analisis kualitas air lima parameter konvensional.
Kontroler adalah identifikasi sensor yang cerdas dan otomatis.
Menampilkan data penyimpanan kartu SD di komputer.
Dapat mengkalibrasi sensor baik di tempat kejadian maupun di lab.
Layar LCD 7 inci, menampilkan manipulasi yang indah dan mudah, dapat menampilkan beberapa parameter dalam waktu bersamaan.
Dengan perlindungan daya dan panggilan fungsi pemulihan otomatis, pengaturan parameter setelah daya tidak hilang.
Tidak ada konsumsi reagen.

Specifications
Power: 85-265V AC, 20W, 50/60HZ.
Meter size (width x height x thickness): 320X260X130.
Output two way 4-20mA and RS485 MODBUS.

Temperature
Temperature Measurement Principle: platinum resistance temperature sensor
Measurement Temperature range: -10 ~ 150 °C
Accuracy: ± 0.2°C
Installation: submerged, with a mounting bracket

PH / ORP
Principle: glass electrode method
Measuring Range: -2000 ~ + 2000mv / -2 ~ 14 pH
Sensitivity: ≤ ± 0.5mV / ± 0.01 pH
Automatic Temperature Compensation Range: 0 ~ 105 °C
Installation: Immersion Type with fixed mounting bracket.

Dissolved Oxygen Sensor (DO)
Principle: Fluorescence
Measuring Range: 0 ~20.00 mg/L, -5 ~60°C
Accuracy: ≤0.1 mg/L
Resolution: ≤0.01 mg/L
Auto Temp. Compensation: 0 ~ 50°C
Installation: Immersion Type with fixed mounting bracket.

Conductivity Sensor/TDS/Salinity (EC)
Measuring Range: 0~200~2,000~20000μS/cm. (Contact electrode type)
0~2~20~200~2000mS/cm. (Electromagnetic induction type)
Temperature Range:-10~80°C
Repeatability: ±1%
Accuracy: ±0.01 % of reading
Calibration Mode: Manual Control, Standard Solution KCL, 25°C
Auto Temp. Compensation:-20 ~100°C
Installation: Immersion or Piping Type with fixed mounting bracket.

Turbidity Sensor (TBD)
Principle: 90 °near-infrared light scattering beam testing
With automatic compensation sample color change
Measuring Range: 0.001-3000NTU
Resolution:≤0.01NTU or 0.1NTU(Determined by Range)
Accuracy:±0.5%FSD
Reproducibility: ±1.0%F.S

Suspended solid sensor (TSS)
Principle: 90 °near-infrared light scattering beam testing
With automatic compensation sample color change
Measuring Range: 0-50g/L
Accuracy:<5%
Reproducibility: <3%

COD Sensor
Measuring Range: 0.75-370/1000mg/L
Resolution: 0.01mg/L COD
User Calibration: one or two point

Noted :
Untuk Custom Silahkan Hubungi Kami

SKU: DR-5000 Category:

Power: 85-265V AC, 20W, 50/60HZ.
Meter size (width x height x thickness): 320X260X130.
Output two way 4-20mA and RS485 MODBUS.

Temperature
Temperature Measurement Principle: platinum resistance temperature sensor
Measurement Temperature range: -10 ~ 150 °C
Accuracy: ± 0.2°C
Installation: submerged, with a mounting bracket

PH / ORP
Principle: glass electrode method
Measuring Range: -2000 ~ + 2000mv / -2 ~ 14 pH
Sensitivity: ≤ ± 0.5mV / ± 0.01 pH
Automatic Temperature Compensation Range: 0 ~ 105 °C
Installation: Immersion Type with fixed mounting bracket.

Dissolved Oxygen Sensor (DO)
Principle: Fluorescence
Measuring Range: 0 ~20.00 mg/L, -5 ~60°C
Accuracy: ≤0.1 mg/L
Resolution: ≤0.01 mg/L
Auto Temp. Compensation: 0 ~ 50°C
Installation: Immersion Type with fixed mounting bracket.

Conductivity Sensor/TDS/Salinity (EC)
Measuring Range: 0~200~2,000~20000μS/cm. (Contact electrode type)
0~2~20~200~2000mS/cm. (Electromagnetic induction type)
Temperature Range:-10~80°C
Repeatability: ±1%
Accuracy: ±0.01 % of reading
Calibration Mode: Manual Control, Standard Solution KCL, 25°C
Auto Temp. Compensation:-20 ~100°C
Installation: Immersion or Piping Type with fixed mounting bracket.

Turbidity Sensor (TBD)
Principle: 90 °near-infrared light scattering beam testing
With automatic compensation sample color change
Measuring Range: 0.001-3000NTU
Resolution:≤0.01NTU or 0.1NTU(Determined by Range)
Accuracy:±0.5%FSD
Reproducibility: ±1.0%F.S

Suspended solid sensor (TSS)
Principle: 90 °near-infrared light scattering beam testing
With automatic compensation sample color change
Measuring Range: 0-50g/L
Accuracy:<5%
Reproducibility: <3%

COD Sensor
Measuring Range: 0.75-370/1000mg/L
Resolution: 0.01mg/L COD
User Calibration: one or two point
