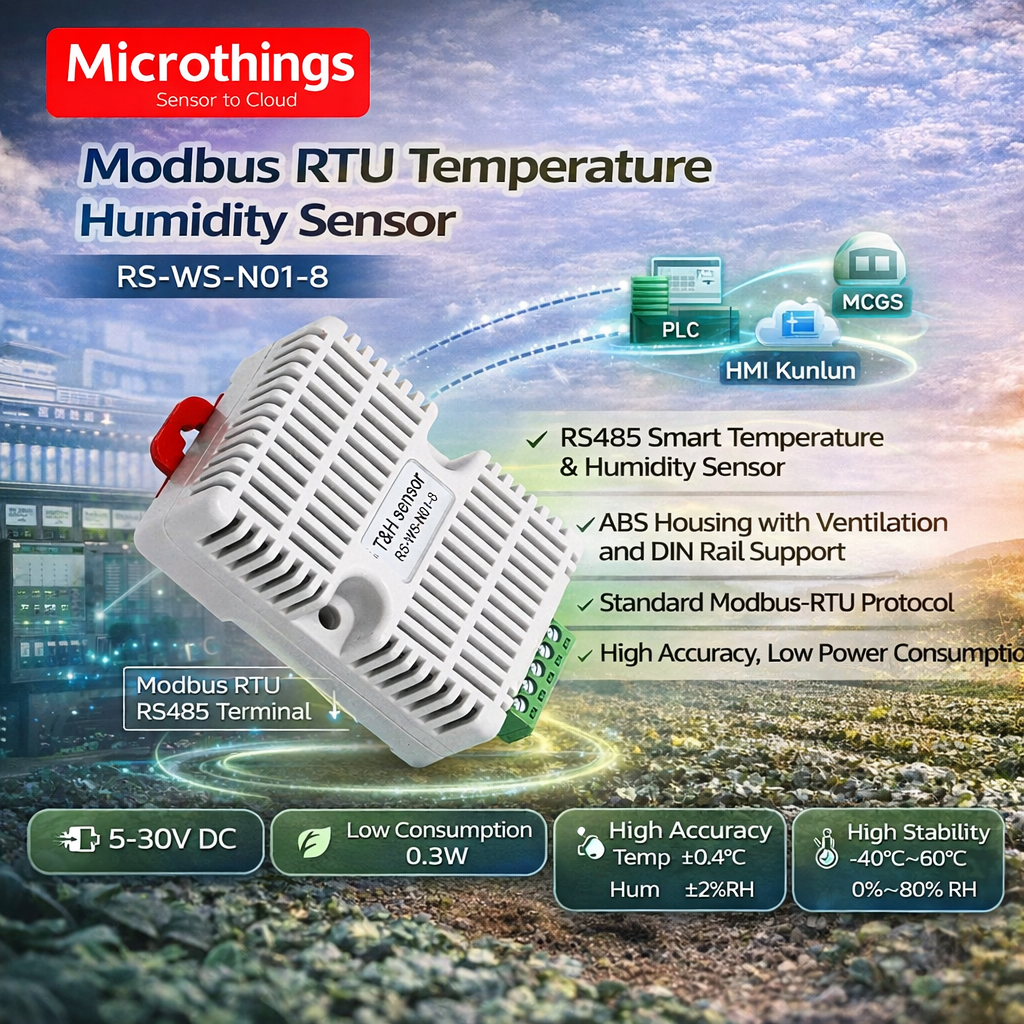

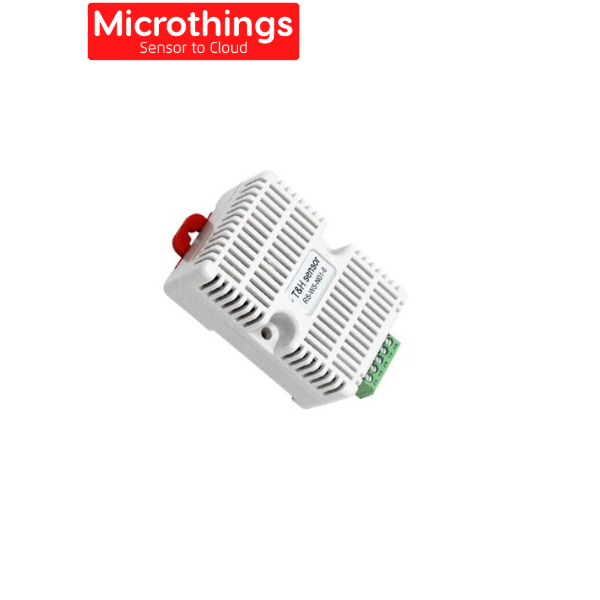

Modbus RTU Temperature Humidity Sensor

Modbus RTU Temperature Humidity Sensor adalah sensor suhu rs485 pintar. Housing sensor suhu Modbus terbuat dari plastik abs dengan ventilasi, serta terdapat slot di bagian belakang yang dapat langsung dipasang di rel. Sensor RS-WS-N01-8 mengadopsi protokol komunikasi Modbus-RTU standar, kontrol gaya 3D, layar konfigurasi perangkat lunak konfigurasi MCGS Kunlun, PLC, platform yang dikembangkan pengguna.

Spesification :
Power supply (default): 5-30V DC
Power consumption: 0.3W
A precision:Humidity: ±2%RH (5%~95%RH, 25℃), temperature: ±0.4℃ (25℃)
B quasi-accuracy:(Default) Humidity: ±3%RH (5%RH~95%RH, 25°C), temperature: ±0.5°C (25°C)
Transmitter circuit working temperature: -40℃~+60℃, 0%RH~80%RH
Communication protocol: Modbus-RTU communication protocol
Output signal: 485 signal
Temperature display resolution: 0.1℃
Humidity display resolution: 0.1%RH
Temperature and humidity refresh time: 1S
Long-term stability: temperature ≤0.1℃/y humidity ≤1%RH/y
Response time: Temperature ≤15s (1m/s wind speed) Humidity ≤4s (1m/s wind speed)
Parameter setting: through software setting

Noted :
Untuk Communication protocol – RS-WS-N01-8 Silahkan Hubungi Team Sales Engineer Kami
