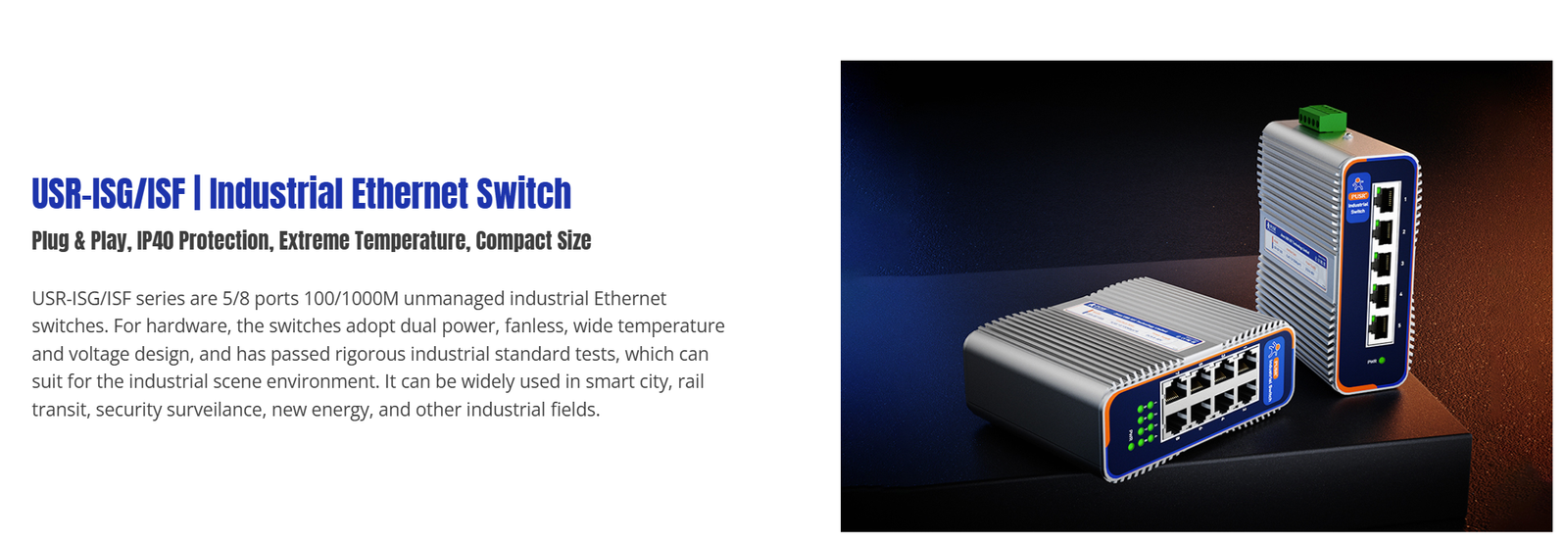

Industrial Ethernet Switch USR-ISG/ISF


The USR-IS series are unmanaged industrial Ethernet switches launched by PUSR. The ISF seriesprovidesa100Mbps rate while the ISG series provides a 1000Mbps rate, with options for either 5 or 8 ports.

Compare

The USR-IS series are unmanaged industrial Ethernet switches launched by PUSR. The ISF seriesprovidesa100Mbps rate while the ISG series provides a 1000Mbps rate, with options for either 5 or 8 ports.
For hardware, the switches adopt dual power, fan-less, wide temperature and voltage design, andhaspassed rigorous industrial standard tests, which can suit for the industrial scene environment. It canbewidelyused in smart city, rail transit, security surveillance, new energy, and other industrial fields.

Features

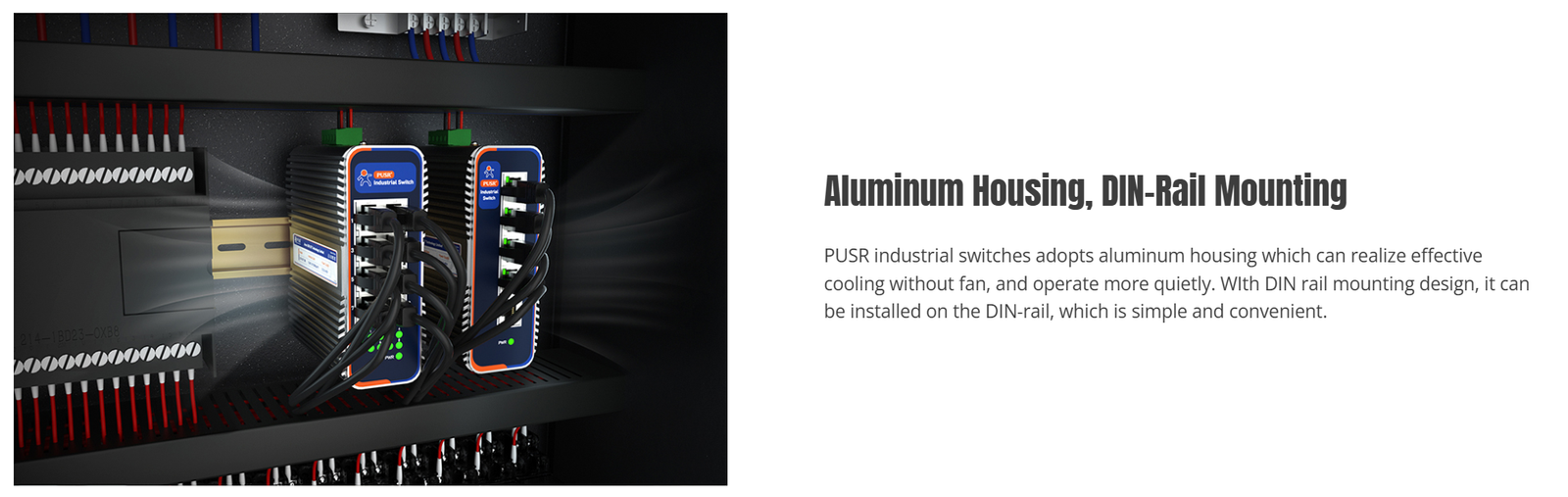

Aluminum housing, effective cooling;
Dust-proof design, IP40 protection;

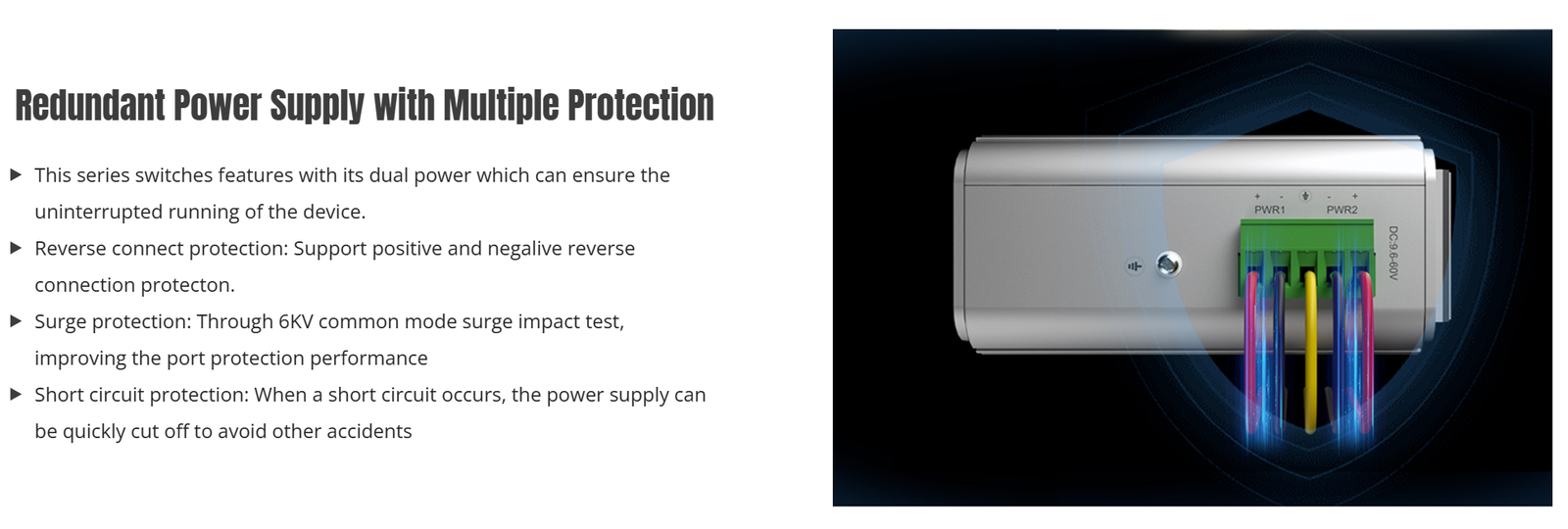

Redundant & wide power supply, DC 9.6-60V voltage input;
Din-Rail mounting, easy to installation;
Compact size, save your space;

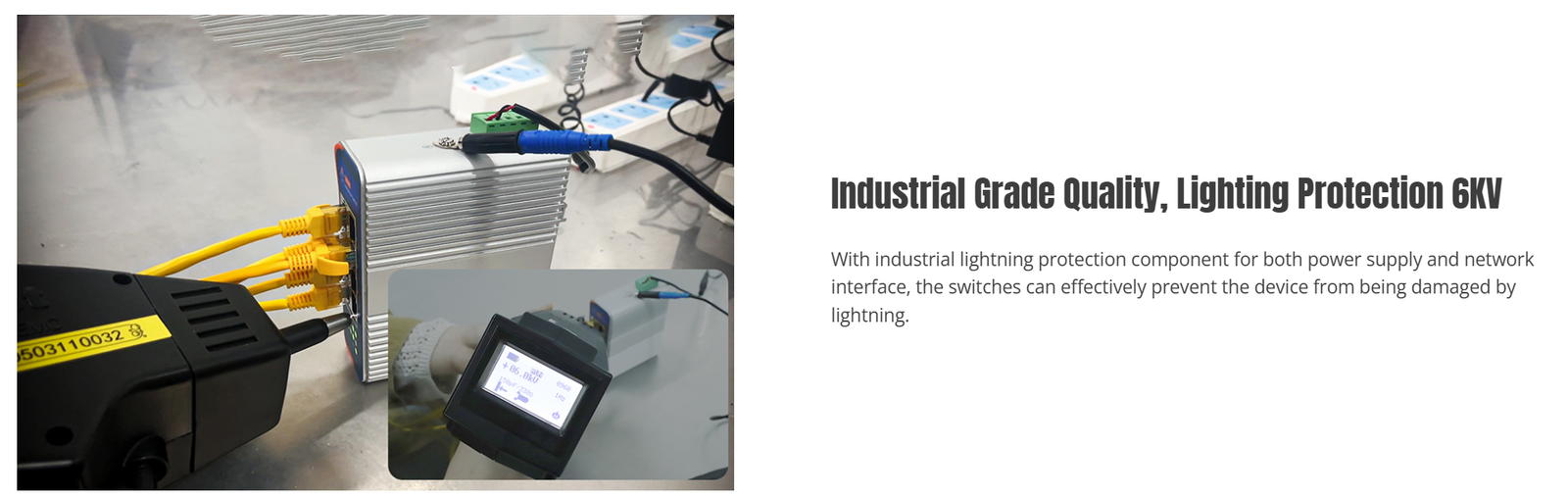

Industrial grade quality, lighting protection 6KV;

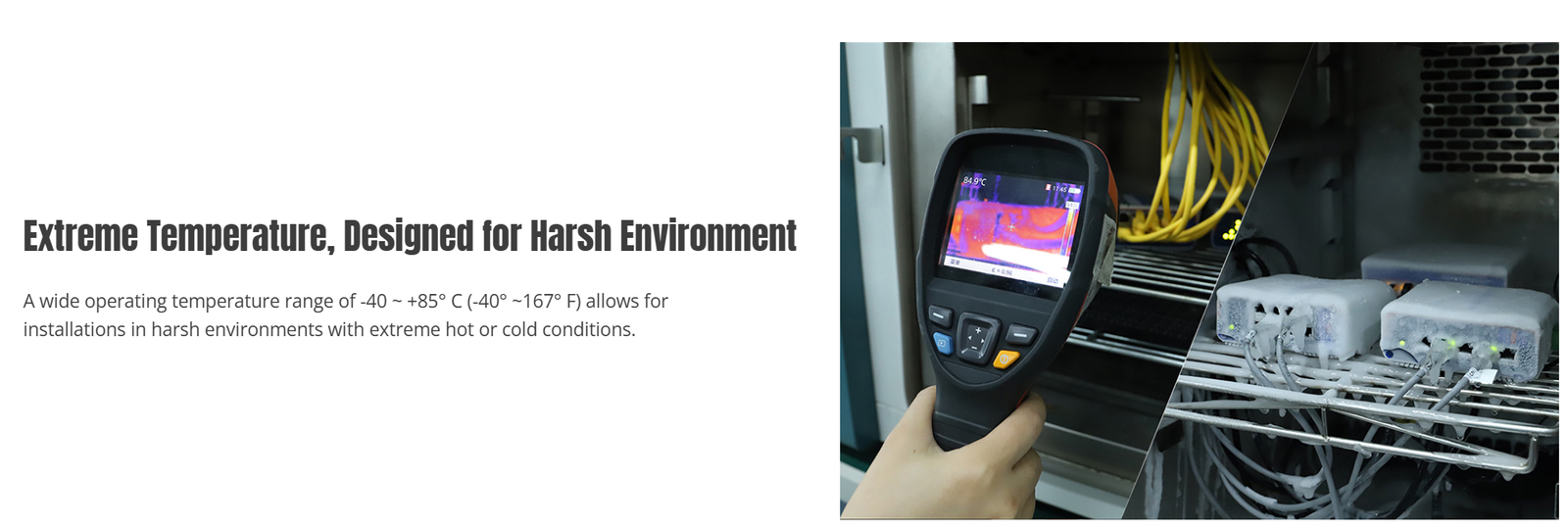

Extreme temperature -40 ~ +85℃, designed for harsh environment;





Weight1 kg
Dimensions10 × 10 × 10 cm

SPESIFIKASI:
Hardware:
Port:
– 8x Gigabit Ethernet Ports (10/100/1000 Mbps)
– Mendukung auto MDI/MDIX
Kecepatan:
– Mendukung kecepatan transfer data hingga 1 Gbps per port
Protokol dan Standar:
– IEEE 802.3, 802.3u, 802.3ab
– IEEE 802.3x Flow Control

Manajemen Jaringan:
– Mendukung VLAN
– QoS (Quality of Service)
– IGMP Snooping

Redundansi Daya:
– Dual redundant power input
– DC 12~48V

Proteksi dan Keamanan:
– ESD Protection (6KV DC)
– Surge Protection (4KV DC)
– Overload Current Protection

Temperatur Operasional:
– -40°C hingga 75°C

Kelembaban Operasional:
– 5% hingga 95% tanpa kondensasi

Material:
– Kasing logam yang kokoh untuk perlindungan tambahan

Mounting:
– Din-Rail mountable
– Wall mountable

Dimensi:
– 130 mm x 100 mm x 40 mm

Berat:
– Sekitar 0.5 kg

Software:
Manajemen Jaringan:
– Web-based GUI untuk konfigurasi dan manajemen
– CLI (Command Line Interface)
– SNMP (Simple Network Management Protocol)
– Telnet/SSH

VLAN:
– Mendukung hingga 4096 VLAN
– IEEE 802.1Q VLAN Tagging
– Port-based VLAN

QoS (Quality of Service):
– 8 queues per port
– Trafik prioritas berdasarkan IEEE 802.1p, DSCP, dan port priority

Keamanan:
– IEEE 802.1X port-based authentication
– Access Control Lists (ACLs)
– IP-MAC-Port Binding (IMPB)
– DHCP Snooping
– ARP Inspection
– Storm Control

Multicast:
– IGMP Snooping v1/v2/v3
– Multicast VLAN Registration (MVR)

Redundansi dan Reliability:
– STP (Spanning Tree Protocol) IEEE 802.1D
– RSTP (Rapid Spanning Tree Protocol) IEEE 802.1w
– MSTP (Multiple Spanning Tree Protocol) IEEE 802.1s
– Link Aggregation Control Protocol (LACP) IEEE 802.3ad

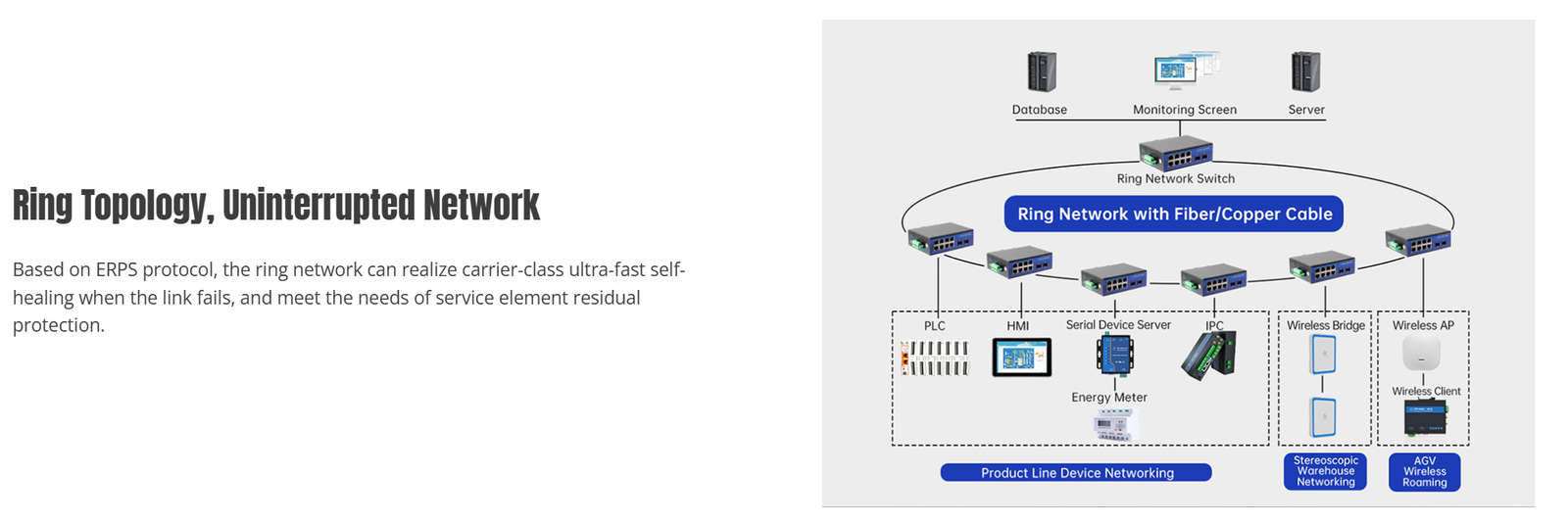

– ERPS (Ethernet Ring Protection Switching) G.8032

Manajemen Trafik:
– Bandwidth Control
– Port Mirroring
– Broadcast/Multicast/Unknown Unicast Storm Control

Pemantauan dan Diagnostik:
– RMON (Remote Network Monitoring) groups 1, 2, 3, 9
– Port Statistics
– Syslog
– SNTP (Simple Network Time Protocol)
– sFlow

Firmware:
– Upgrade firmware via HTTP/TFTP

Logging dan Alarm:
– Log system events
– Alarm untuk berbagai kejadian jaringan
