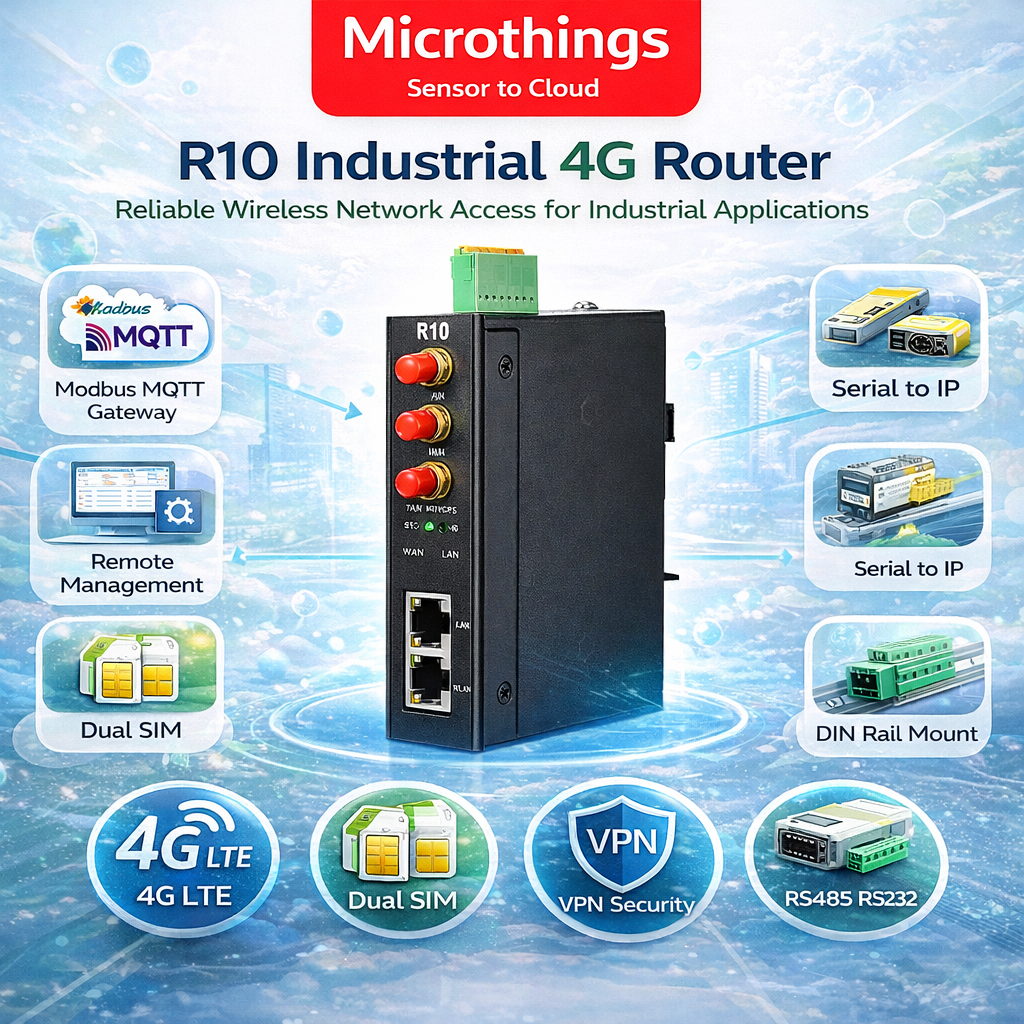

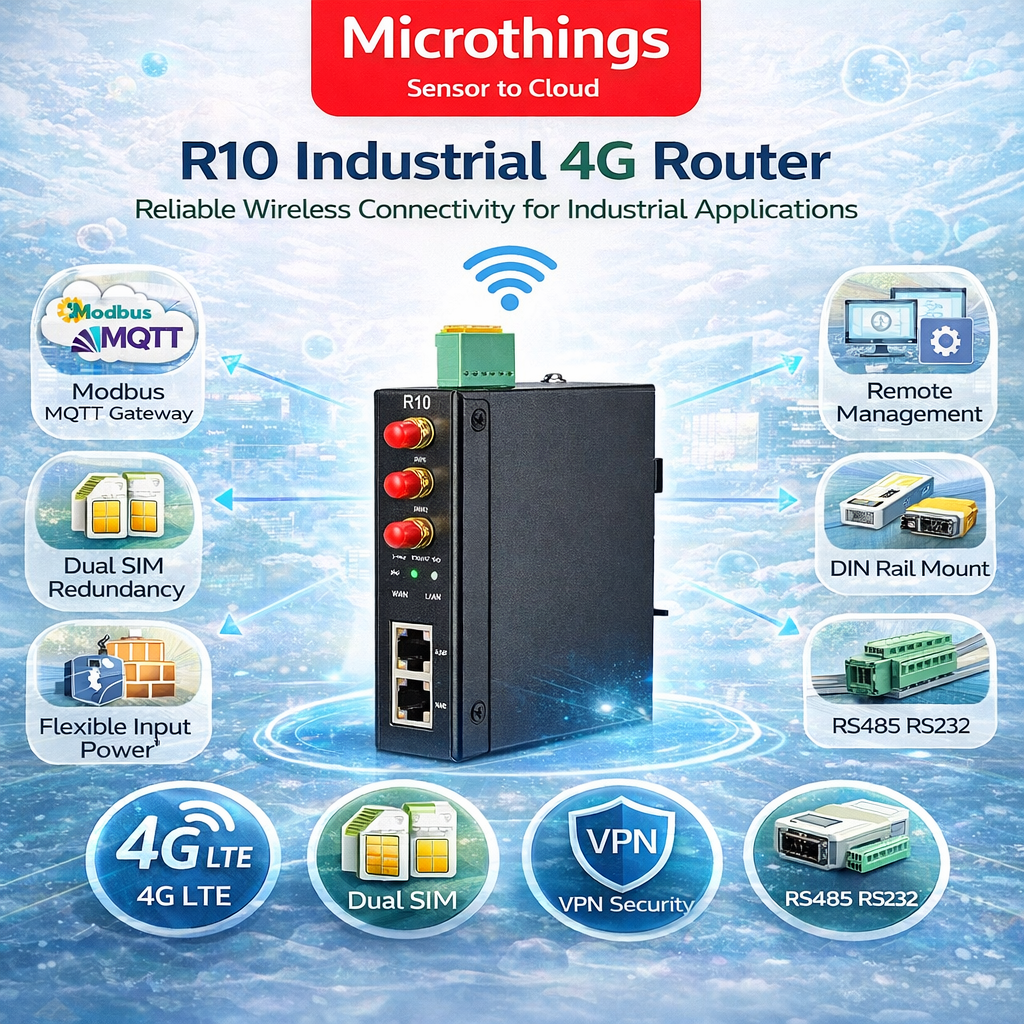

Industrial 4G Edge Router R10A adalah router industri sekaligus edge gateway yang tidak hanya menyediakan akses jaringan nirkabel 4G, tetapi juga mendukung Modbus data acquisition, Modbus to MQTT protocol conversion, remote monitoring via cloud platform, edge computing, programmable logic operations, timer, dan event trigger. Perangkat ini dirancang untuk kebutuhan integrasi data lapangan ke cloud secara aman, stabil, dan efisien.

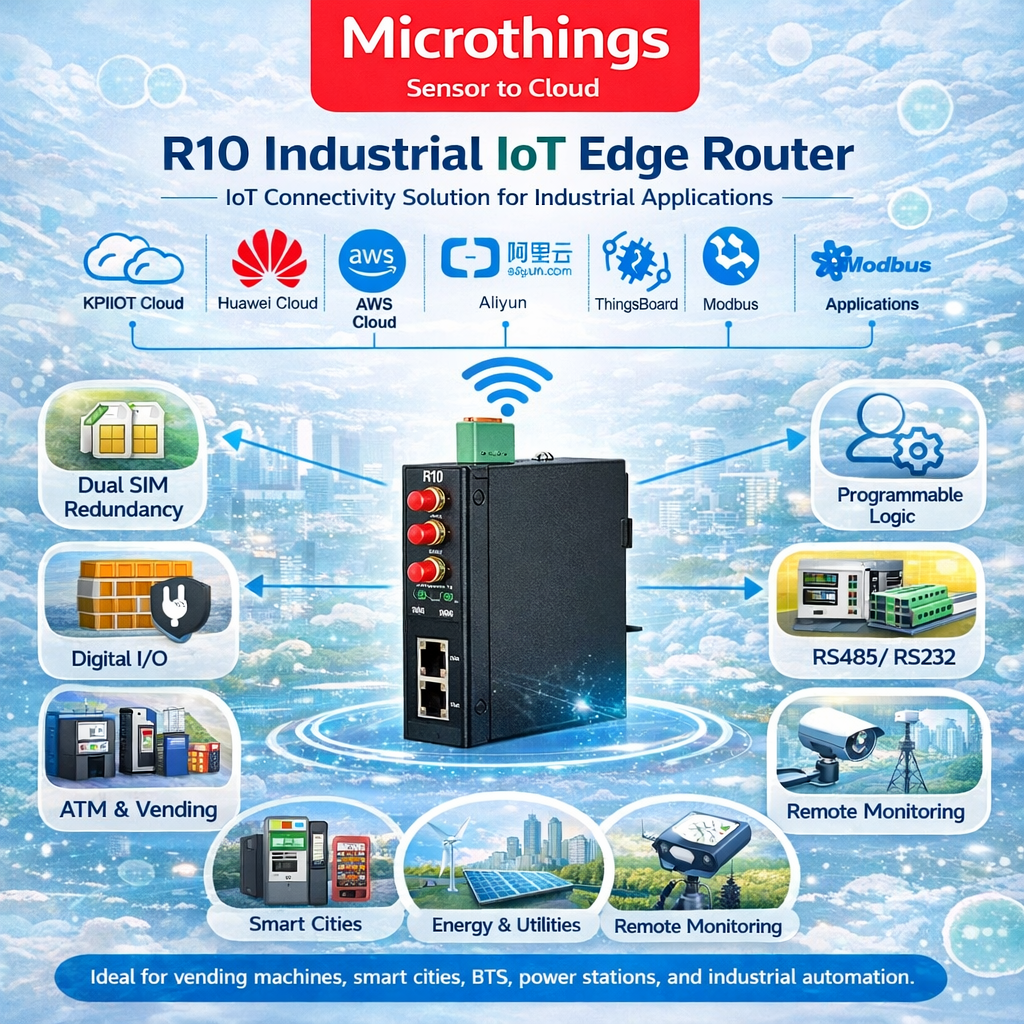

R10A dapat bekerja sebagai Modbus RTU/TCP Master untuk membaca data meter melalui RS485/RS232 atau LAN, lalu mengunggah data ke platform cloud dalam format MQTT, seperti AWS IoT dan ThingsBoard. Selain itu, router ini juga dapat terhubung ke remote I/O module melalui serial atau Ethernet untuk monitoring data dan kontrol perangkat dari jarak jauh. Dukungan TLS, SSL, dan X.509 Root Certificate membantu memastikan keamanan transmisi data pada aplikasi industri.
Fitur Utama
- Mendukung akses internet nirkabel 4G
- Mendukung pengaturan APN
- Fitur anti-drop line, online detection, online maintenance, dan automatic redial
- Mendukung cloud remote management, remote upgrade, dan remote configuration
- GPS opsional, data lokasi dapat dipublikasikan melalui MQTT
- Mendukung VPN: L2TP, IPSEC, OPENVPN
- Mendukung RS485 dan RS232 transparent transmission
- Mendukung Modbus RTU to TCP
- Mendukung beberapa mode akses internet: automatic allocation, specified IP, PPPoE
- Dapat memonitor status perangkat jaringan pada port LAN dan melaporkannya ke platform
- Mendukung IPTABLES firewall
- Mendukung switching antara WAN dan 4G, dengan prioritas WAN kabel
- Mendukung MODBUS dan MQTT, serta MQTT SSL encryption
- Mendukung alarm melalui SMS atau email
- Mendukung one-time timer, periodic timer, dan cyclic timer
- Mendukung remote upgrade via web page
- Mendukung DDNS: peanut shell, 88IP, dynDNS
Technical Spesifikasi
Spesifikasi Utama
| Item |
Spesifikasi |
| Produk |
BLIIoT R10A |
| Tipe |
Industrial 4G Edge Router |
| Input Voltage |
9~36VDC |
| Input Current |
Normal 130mA@12V, maksimum 800mA@12V |
| Power Connection |
3.5mm wiring terminal |
| Protection Power |
Anti-reverse connection protection |
| CPU |
MIPS CPU, 580MHz |
| Storage |
128Mbits SPI Flash |
| RAM |
1024Mbits DDR2 |
| Enclosure |
Metal material |
| Size |
110 × 83 × 30 mm |
| Net Weight |
300 g |
| IP Level |
IP30 |
| Installation |
Wall mounted, DIN rail |
| Working Temperature |
-20℃ hingga +65℃ |
| Storage Temperature |
-40℃ hingga +85℃ |
| Humidity |
5–95%RH non-condensation |
Port dan Interface
| Item |
Spesifikasi |
| WAN |
1 x RJ45, 10/100Mbps, adaptive MDI/MDIX |
| LAN |
1 x RJ45, 10/100Mbps, adaptive MDI/MDIX |
| Serial Port |
1 channel RS485 atau RS232 |
| WiFi Antenna |
2 port |
| Cellular Antenna |
1 port |
| SIM Slot |
1, Nano SIM/UIM, 1.8V/3V |
| GPS |
Opsional |
| Micro USB |
Support |
WiFi
| Item |
Spesifikasi |
| Protocol |
802.11a/b/g/n mixed |
| Mode |
AP mode, client mode |
| Frequency |
2.4G |
| Channel |
1–13 |
| Security |
Open, WPA, WPA2 |
| Encryption |
AES, TKIP, TKIPAES |
| Connection Number |
Maks. 16 |
| Speed |
Maks. 300Mbps |
| Transmit Distance |
Maks. 20 meter di area terbuka |
Cellular Network
| Item |
Spesifikasi |
| 4G L-E |
GSM/EDGE 900,1800MHz; WCDMA B1,B5,B8; FDD B1,B3,B5,B7,B8,B20; TDD B38,B40,B41 |
| 4G L-AU |
GSM/EDGE 850,900,1800MHz; WCDMA B1,B2,B5,B8; FDD B1,B2,B3,B4,B5,B7,B8,B28; TDD B40 |
| 4G L-A |
WCDMA B2,B4,B5; FDD B2,B4,B12 |
| 4G L-V |
FDD B4,B13 |
| 4G L-J |
WCDMA B1,B3,B8,B18,B19,B26; FDD B2,B4,B12; TDD B41 |
| 4G L-CE |
GSM/EDGE 900,1800MHz; WCDMA B1,B8; TD-SCDMA B34,B39; FDD B1,B3,B8; TDD B38,B39,B40,B41 |
Software dan Security
| Item |
Spesifikasi |
| Network Protocol |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPS, DNS, ARP, NTP, SMTP, SSH2, DDNS |
| VPN |
IPsec, OpenVPN, L2TP |
| Firewall |
DMZ, DoS defense, IP packet, domain name and MAC filtering, port mapping, access control |
| Remote Management |
Web remote configuration |
| Firmware Update |
Serial local TFTP dan Web upgrade |
| Certificates |
CE, FCC, ROHS, 3C |
Model Selection
| Model |
SIM Card |
WiFi Mode |
RS232/RS485 |
GPS |
Micro USB |
Extend Function |
| R10 |
1 |
2 |
Multiplexing |
Optional |
Support |
Modbus Slave / MQTT |
| R10A |
1 |
2 |
Multiplexing |
Optional |
Support |
Modbus Master / Slave / MQTT |
| R10A-W |
X |
2 |
Multiplexing |
X |
Support |
Modbus Master / Slave / MQTT |
Manfaat dan aplikasi
Manfaat
- Menggabungkan fungsi router 4G dan edge gateway dalam satu perangkat
- Memudahkan pengiriman data Modbus ke cloud melalui MQTT
- Mendukung kontrol logika lokal, timer, dan event trigger
- Membantu menjaga perangkat tetap online dengan automatic redial dan failover jaringan
- Memberikan keamanan data lebih baik dengan TLS, SSL, X.509, dan VPN
- Cocok untuk integrasi sistem industri, energi, utilitas, dan monitoring jarak jauh
Aplikasi
- Smart grid
- Pumping stations / tank monitoring
- Oil & gas pipeline monitoring
- Transformer station remote management
- Valve control
- Streetlight energy-saving control systems
- Industrial automation
- Supply chain automation
- Pump station monitoring
- Unmanned equipment rooms
- Control room applications
- Intelligent transportation
- Smart buildings
- Fire protection systems
- Public safety
- Weather stations
- River monitoring & flood control
- Agriculture / forestry / water monitoring
- Corrosion protection
- Temperature / water leakage detection
- Mobile POS terminals
- Vending machine security
- Digital healthcare
- Remote medical monitoring
- BTS monitoring
- Security alarm systems
- Surveillance & monitoring alarm systems
- Wellhead / boat / vehicle tracking
- Remote sensing & surveying
- Petrochemical monitoring
- Automated system integration
Standart Paket
- 1 x Router device
- 1 x 7PIN 5mm Terminal
- 1 x Antenna untuk 2G/3G/4G cellular
- 2 x Antenna untuk WiFi 2.4G
- 2 x Bracket kit untuk wall-mounted
- 1 x Bracket kit untuk DIN rail mounted
- 1 x Instruction Manual (PDF version)
- 1 x Certificate of QC pass
- 1 x Warranty card
