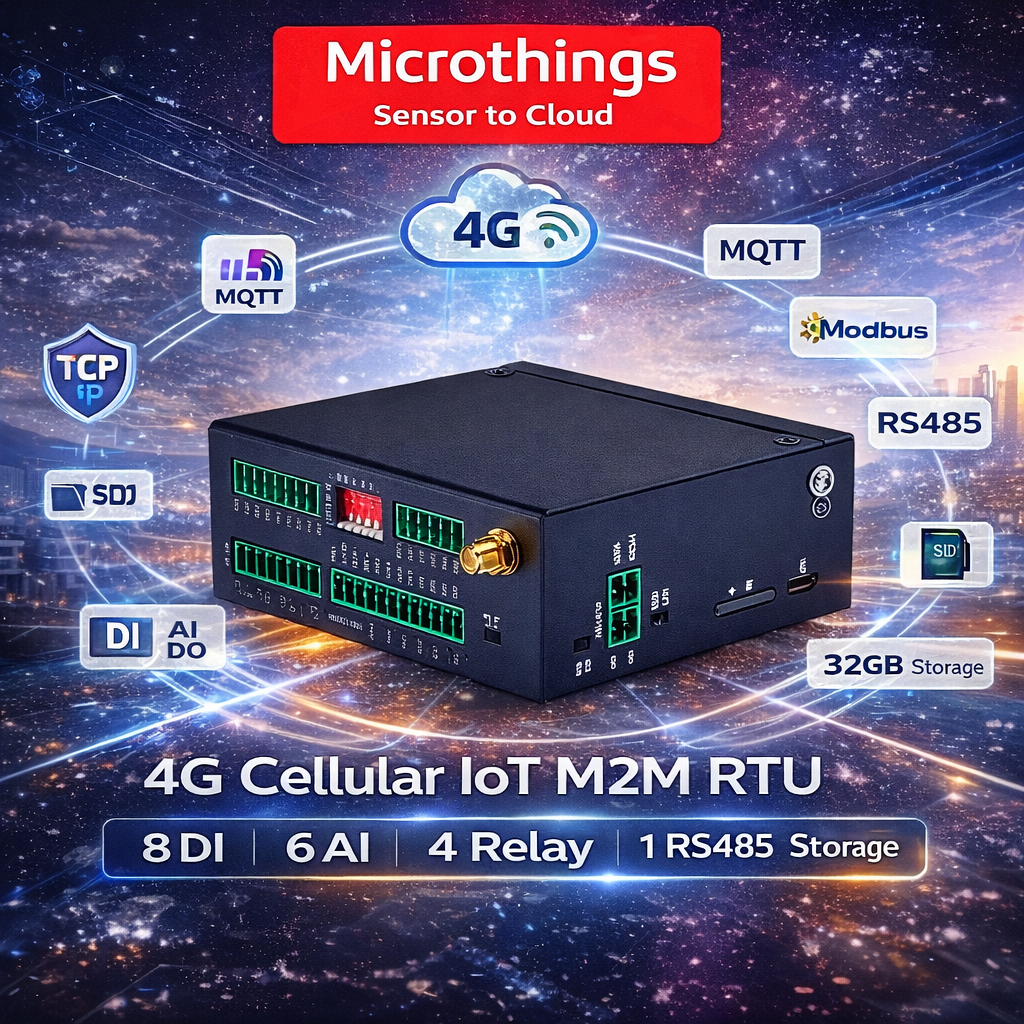

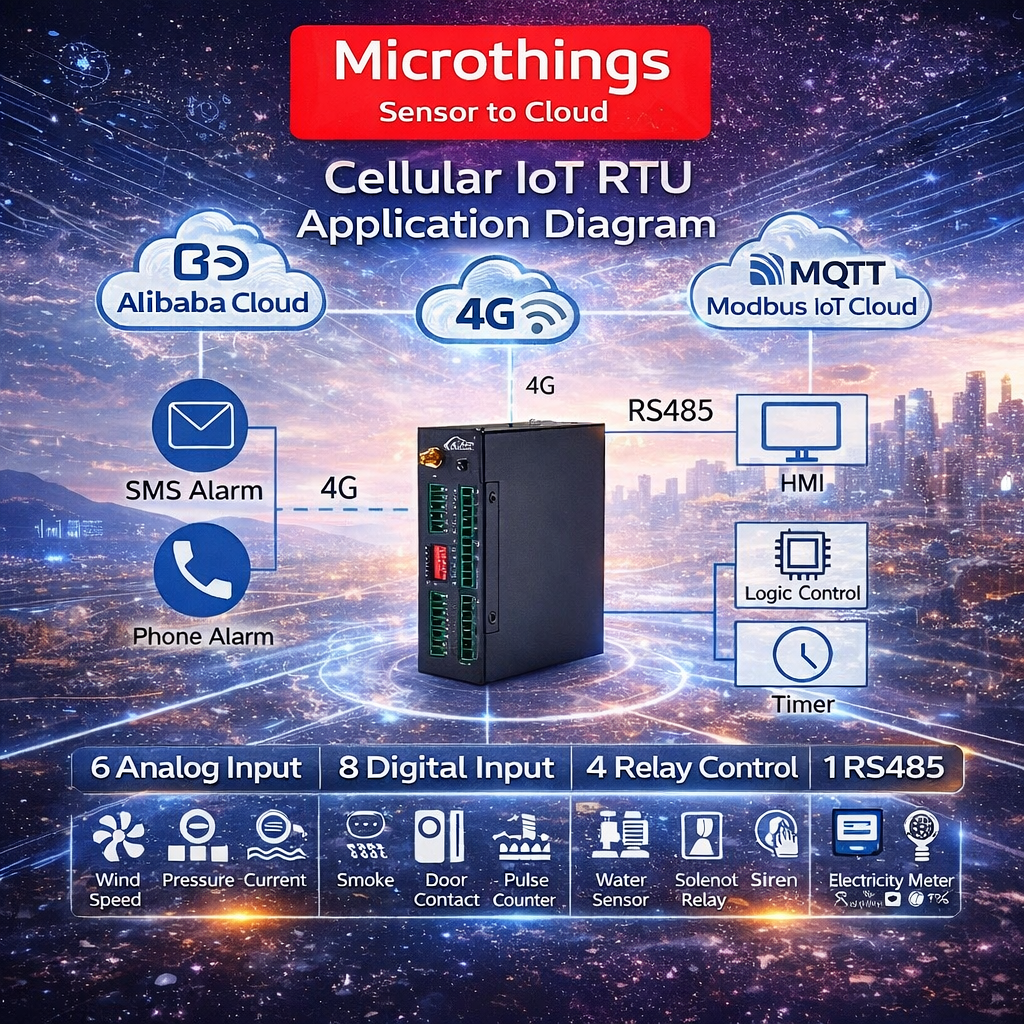

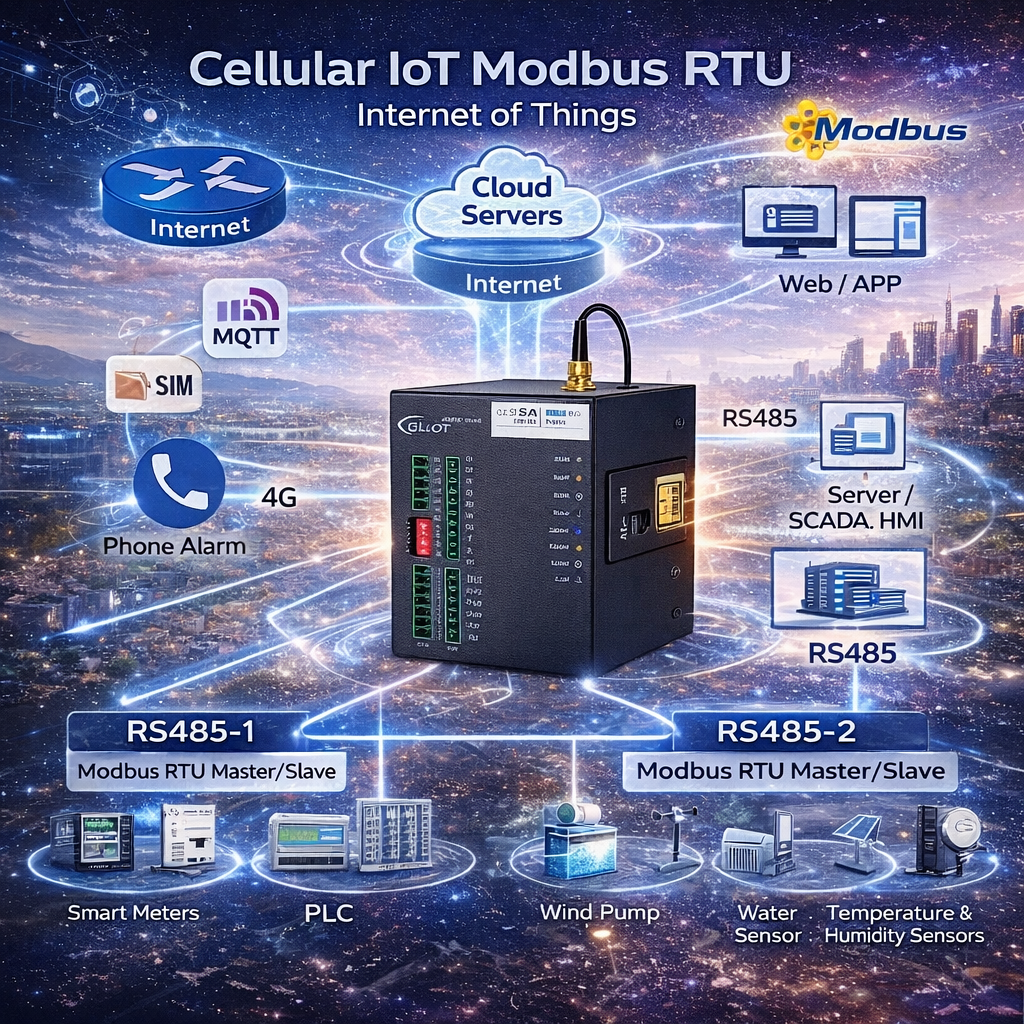

Cellular IoT RTU S275 adalah industrial programmable Remote Terminal Unit yang dirancang untuk kebutuhan remote monitoring, data acquisition, alarm, dan kontrol otomatis di lingkungan industri. Perangkat ini memiliki 8 digital input, 6 analog input, 4 relay output, 1 ambient sensor input untuk suhu dan kelembapan, serta 1 port RS485. Sebagai Modbus Master, RTU ini dapat terhubung ke expansion I/O module atau membaca data dari sensor air, sensor daya, PLC, dan instrumen lain. Produk ini merupakan solusi IoT yang efisien untuk industrial automation, security monitoring, measurement and control system, BTS monitoring, telemetry, dan remote data acquisition.
Fitur Utama
- Komunikasi 4G network untuk monitoring dan kontrol jarak jauh
- Power input 9–36VDC dengan proteksi over-voltage dan phase-reversal
- ARM Cortex-M4 32-bit RISC Core RTOS dengan watchdog bawaan
- 8 digital input mendukung wet contact dan dry contact
- 4 relay output untuk kontrol otomatis dan remote
- 6 analog input mendukung 0–5V, 0–20mA, dan 4–20mA
- 1 temperature & humidity input dengan sensor AM2301
- 1 RS485 port mendukung Modbus RTU slave dan Modbus RTU master
- Dapat menghubungkan hingga 16 Modbus slave dan 320 I/O tags

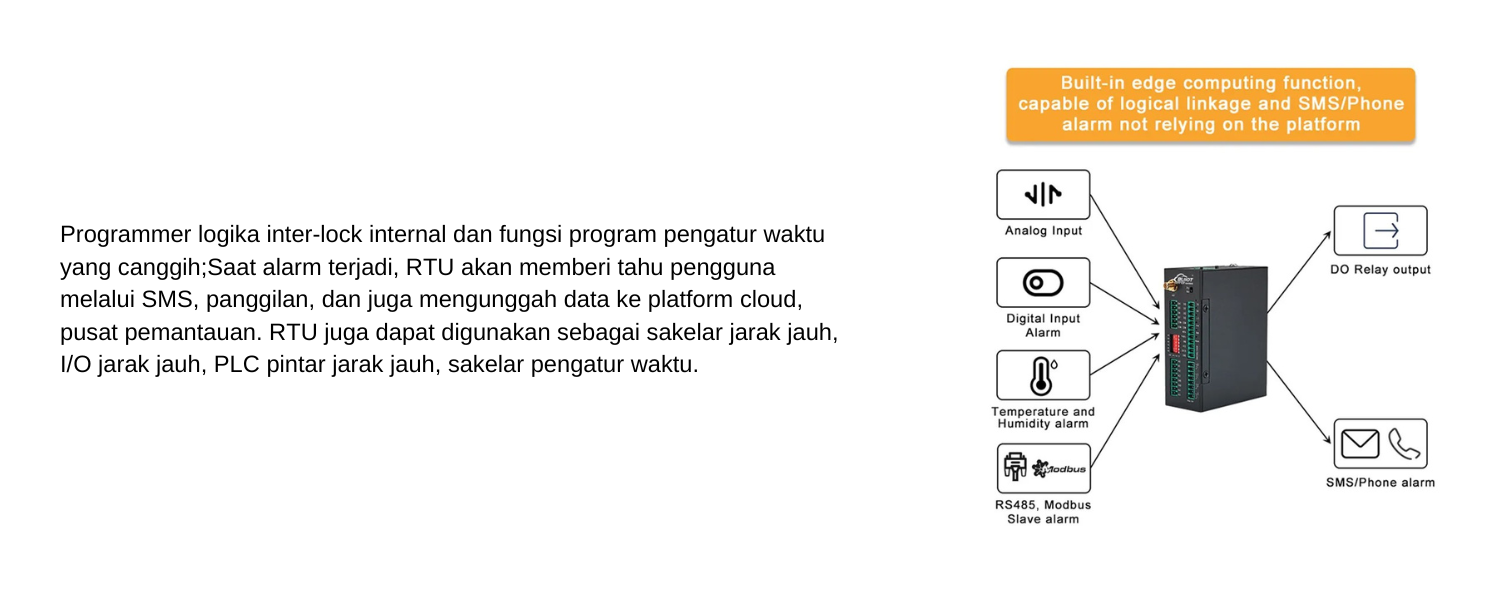

- Mendukung SMS alert, SMS command, remote restart, dan remote configuration
- Mendukung TCP/UDP, MQTT, Modbus TCP, Modbus RTU over TCP, BLIIoT IoT RTU
- 32G SD card built-in untuk penyimpanan historical records

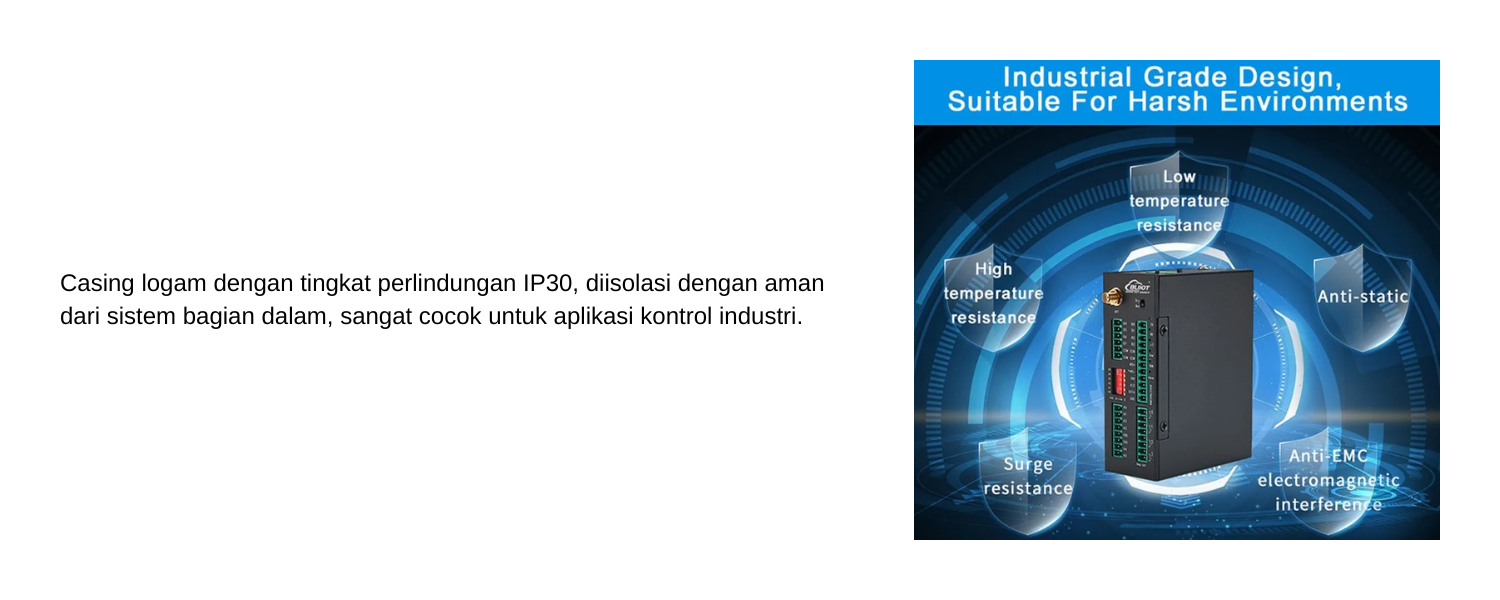

- Casing metal IP30
- Mendukung wall mounting dan DIN rail mounting

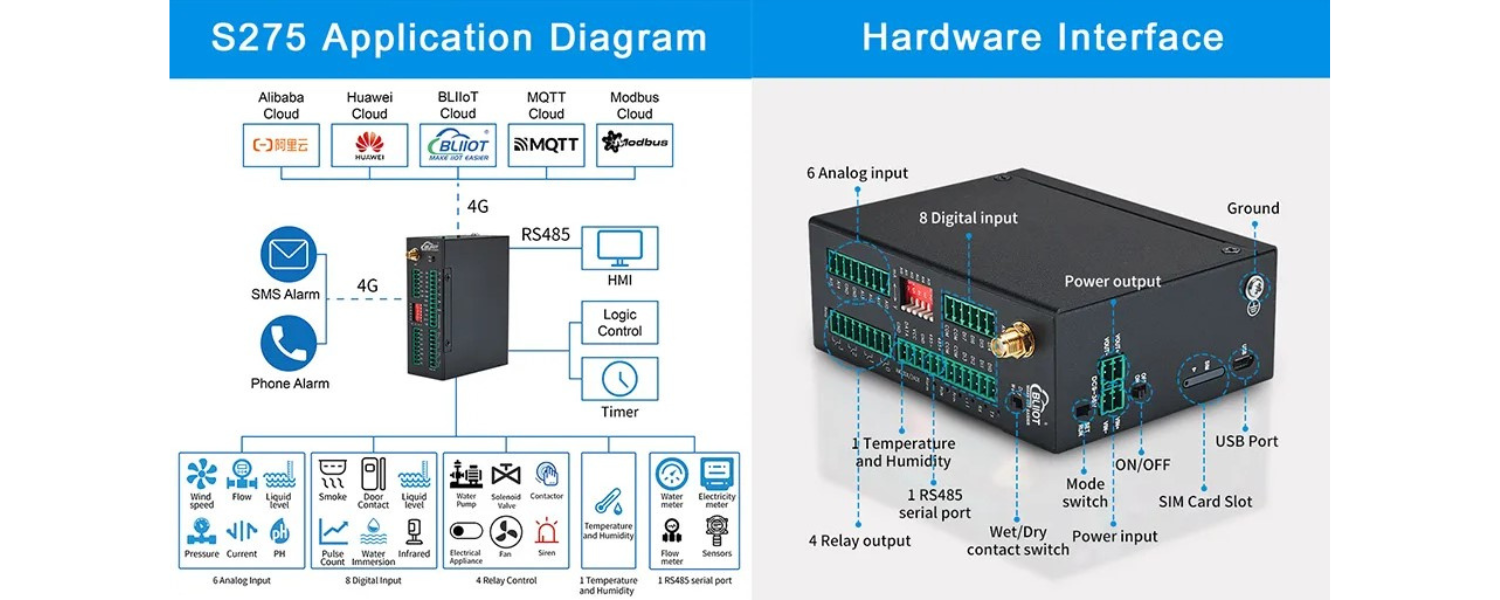

Technical Spesifikasi
| Parameter | Spesifikasi |
|---|---|
| Model | BLIIoT S275 |
| Tipe Produk | Cellular IoT M2M RTU |
| CPU | ARM Cortex-M4 32 Bit RISC Core RTOS |
| Komunikasi | 4G |
| Input Voltage | DC 9–36V |
| Power Consumption | Normal 50mA@12V, Max 150mA@12V |
| Output | 1 channel, 9–36V DC, 1500mA@12V max |
| USB | 1 x Mini USB |
| RS485 | 1 x RS485 |
| Digital Input | 8 channel |
| Digital Output | 4 relay output |
| Relay Rating | 5A@30VDC, 5A@250VAC |
| Analog Input | 6 channel |
| Analog Type | Differential input, 4–20mA / 0–20mA / 0–5V |
| Analog Resolution | 12-bit |
| Temperature & Humidity | 1 input, sensor AM2301 |
| Temperature Range | -40°C to +80°C |
| Temperature Accuracy | 0.5°C |
| Humidity Range | 0 to 99RH% |
| Humidity Accuracy | 3%RH |
| Storage | Built-in 32G SD Card |
| Historical Data | Up to 100,000 records |
| Slave Connection | 16 devices, max 320 I/O data points |
| Protocol Support | IPv4, TCP/UDP, Modbus RTU, Modbus TCP, MQTT, BLIIoT IoT RTU |
| Indicator | 4G signal, running, arming/disarming, 485 transmit-receive |
| MTBF | ≥100,000 hours |
| Certification | CE, FCC, RoHS |
| Protection | IP30 |
| Housing | Metal |
| Size | 108 × 82 × 40 mm |
| Installation | Wall-mounting / DIN Rail mounting |
| Working Temp | -45°C to 85°C |
| Storage Temp | -45°C to 105°C |
Manfaat dan aplikasi
Manfaat
- Memudahkan pemantauan data lapangan secara real-time
- Mendukung kontrol jarak jauh untuk relay dan perangkat eksternal
- Cocok untuk integrasi dengan SCADA, HMI, DSC, PLC, dan Modbus devices
- Mendukung alarm otomatis via SMS saat terjadi threshold, recovery, atau gangguan komunikasi
- Menyediakan data logging berkapasitas besar untuk kebutuhan histori dan audit
- Efisien untuk sistem industri di lokasi terpencil berkat konektivitas 4G dan RS485 Modbus
Aplikasi
- Industrial automation
- Security monitoring system
- Automatic measurement and control system
- BTS monitoring
- Remote data acquisition
- Telemetry systems
- Pumping station monitoring
- Tank level monitoring
- Oil & gas pipeline monitoring
- Corrosion protection
- Valve control
- Transformer station monitoring
- Unmanned equipment rooms
- Weather stations
- River monitoring & flood control
- Water leakage detection
- Energy-saving systems
- Smart streetlight control
- Building monitoring
- Wellhead monitoring
- Boat/vehicle tracking
- M2M communication
Standart Paket
- 1 x RTU
- 1 x Wiring terminal
- 1 x Mini USB
- 1 x SMA cellular antenna
- 1 x Power adaptor
- DIN-Rail mounting clip kit
- Product qualification certificate
- Warranty card
=======================================================================================================================
