Gas Leakage Detector


Compare

Gas Leakage Detector

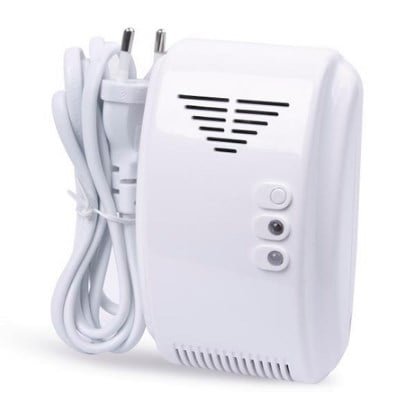

The Wired Gas Leakage Detector is an INPUT DEVICE designed for natural gas,LPG detection. It can use independently or as a front-end detector of an alarm system. Upon detection of natural gas and LPG, the GL-02 automatically generates an alarm signal to control panel and sound & flash alarm. The unit is RF and EMI Immunity to interferences produced by radio device.

Product Features
Newly-developed sensory sensor unit inside;
Independently or as a front-end detector of an alarm system;
Wired transmitting digital signal to control panel;
Intelligent logic control, eliminate false alarm;
Microcontroller temperature analysis and Automatic temperature compensation for best summertime detection;
Tightly-mated bug guard to protect the sensor optics from insects, spiders and dust, Worm, it is dustproof, mothproof and anti-white light;
Strong adaptability to circumstance requirements;
SMT adopted, RF and EMI Immunity;
Manual test, auto-reset, and low power consumption;

Rp198,000

Gas Leakage Detector

The Wired Gas Leakage Detector is an INPUT DEVICE designed for natural gas,LPG detection. It can use independently or as a front-end detector of an alarm system. Upon detection of natural gas and LPG, the GL-02 automatically generates an alarm signal to control panel and sound & flash alarm. The unit is RF and EMI Immunity to interferences produced by radio device.

Product Features
Newly-developed sensory sensor unit inside;
Independently or as a front-end detector of an alarm system;
Wired transmitting digital signal to control panel;
Intelligent logic control, eliminate false alarm;
Microcontroller temperature analysis and Automatic temperature compensation for best summertime detection;
Tightly-mated bug guard to protect the sensor optics from insects, spiders and dust, Worm, it is dustproof, mothproof and anti-white light;
Strong adaptability to circumstance requirements;
SMT adopted, RF and EMI Immunity;
Manual test, auto-reset, and low power consumption;



SKU: GL-02 Category: Tag:
Weight 500 g

Specifications:
Operating Voltage : DC12V-24V
Standby Current : 110mA@12V ; 60mA@24V
Alarm Current : 160mA@12V ; 90mA@24V
RF Immunity : > 20 V/m 10 1000 MHz
Alarm Sensitivity : 10%+/-5 LEL
White Light Immunity : > 8000 lux
Noise(Vp-p) : 200mV , (mVp-p)(25C)
Alarm Output : NC or NO, sound & flash alarm
Temperature Range : -10C to +50C
Relative Humidity : Less than 95% (25 )
Installation Mode : Wall Mounted
Housing : High-impact ABS
Dimensions : 115mm x 72mm x41mm (HxWxD)
Applications : For indoor use.
