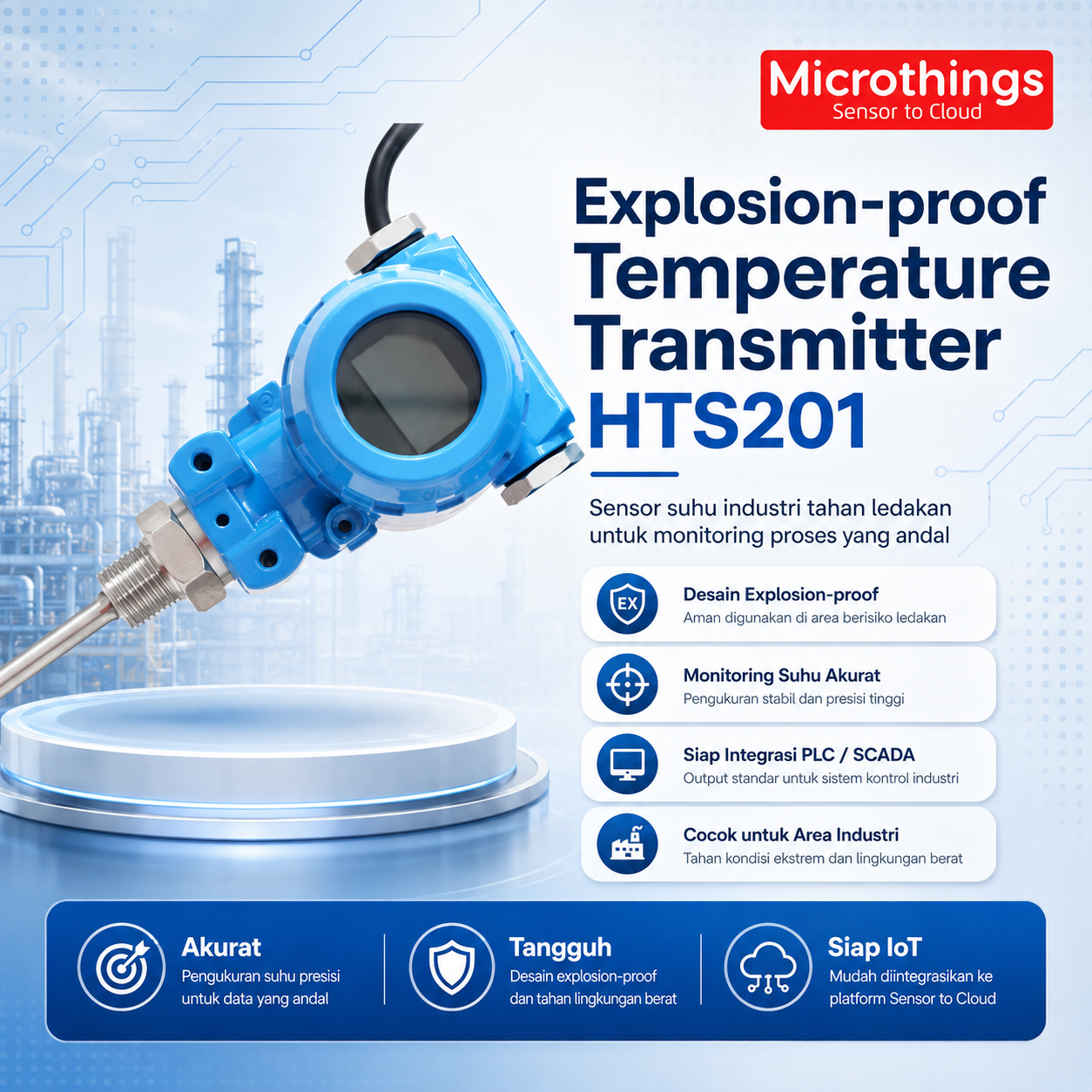

Explosion-proof Temperature Transmitter HTS201


Explosion-proof Temperature Transmitter HTS201 adalah Transmitter suhu terintegrasi termokopel HTS201 (resistensi). Ini terdiri dari termokopel, resistansi termal dan moduTransmitter suhu. Ini menggunakan sistem dua kawat dengan sirkuit koreksi nonlinier untuk secara langsung mengukur cairan, media gas.

Rp4,600,000 Rp4,800,000

Explosion-proof Temperature Transmitter HTS201 adalah Transmitter suhu terintegrasi termokopel HTS201 (resistensi). Ini terdiri dari termokopel, resistansi termal dan moduTransmitter suhu. Ini menggunakan sistem dua kawat dengan sirkuit koreksi nonlinier untuk secara langsung mengukur cairan, media gas.

Spesifikasi Teknis :
Parameter:HTS201
Measurement Range (Degree C/ ℃):-50~0;-50~50;0~80;0~100;0~120;0~150; 0~200; 0~250;0~300;optional
Installation Type:Insert type
Probe length:50 mm or customized
Probe Dimension:Φ8
Sensor Type:PT100; Pt1000
Signal Output:4-20 mA + HART or 4-20 mA +RS485 optional
Signal wires type:2 to 4 wires
Power supply:24Vdc
Accuracy:±0.5%F.S.
Working pressure:40Bar (standard); 300 Bar (customized)
Long time stability:0.1%F.S.
Response time:T=50 2.3S; T=90 5.4S
Electronic proof:Reverse polarity protection; Overload voltage protection (standard);surge protection (customized)
Environment temp:-40~85 Degree C
Storage temp:-40~125 Degree C
Materials of housing:316L Stainless Steel
Materials of process:316L Stainless Steel
Water proof grade:IP67
Explosion Proof:Yes
Display Units:LED Indicator Local Display Temp and Panel with 3 keys for Zero and Span setting

Keuntungan
Sirkuit kompensasi sambungan dingin presisi tinggi dengan akurasi kompensasi ±0,5°C pada rentang suhu penuh.
Rangkaian koreksi nonlinier yang unik, sinyal keluaran linier dengan suhu yang diukur.
Sistem kalibrasi mandiri drift internal menjamin akurasi di seluruh rentang suhu pengoperasian.

Aplikasi:
Minyak bumi
Kimia
Metalurgi
Tenaga listrik
Industri ringan
Tekstil
Makanan dan industri lainnya.

Weight 2 kg

Spesifikasi Teknis :
Parameter:HTS201
Measurement Range (Degree C/ ℃):-50~0;-50~50;0~80;0~100;0~120;0~150; 0~200; 0~250;0~300;optional
Installation Type:Insert type
Probe length:50 mm or customized
Probe Dimension:Φ8
Sensor Type:PT100; Pt1000
Signal Output:4-20 mA + HART or 4-20 mA +RS485 optional
Signal wires type:2 to 4 wires
Power supply:24Vdc
Accuracy:±0.5%F.S.
Working pressure:40Bar (standard); 300 Bar (customized)
Long time stability:0.1%F.S.
Response time:T=50 2.3S; T=90 5.4S
Electronic proof:Reverse polarity protection; Overload voltage protection (standard);surge protection (customized)
Environment temp:-40~85 Degree C
Storage temp:-40~125 Degree C
Materials of housing:316L Stainless Steel
Materials of process:316L Stainless Steel
Water proof grade:IP67
Explosion Proof:Yes
Display Units:LED Indicator Local Display Temp and Panel with 3 keys for Zero and Span setting
