Power Meter Transducers
Direct Current Voltage Transducer
Availability:
100 in stock

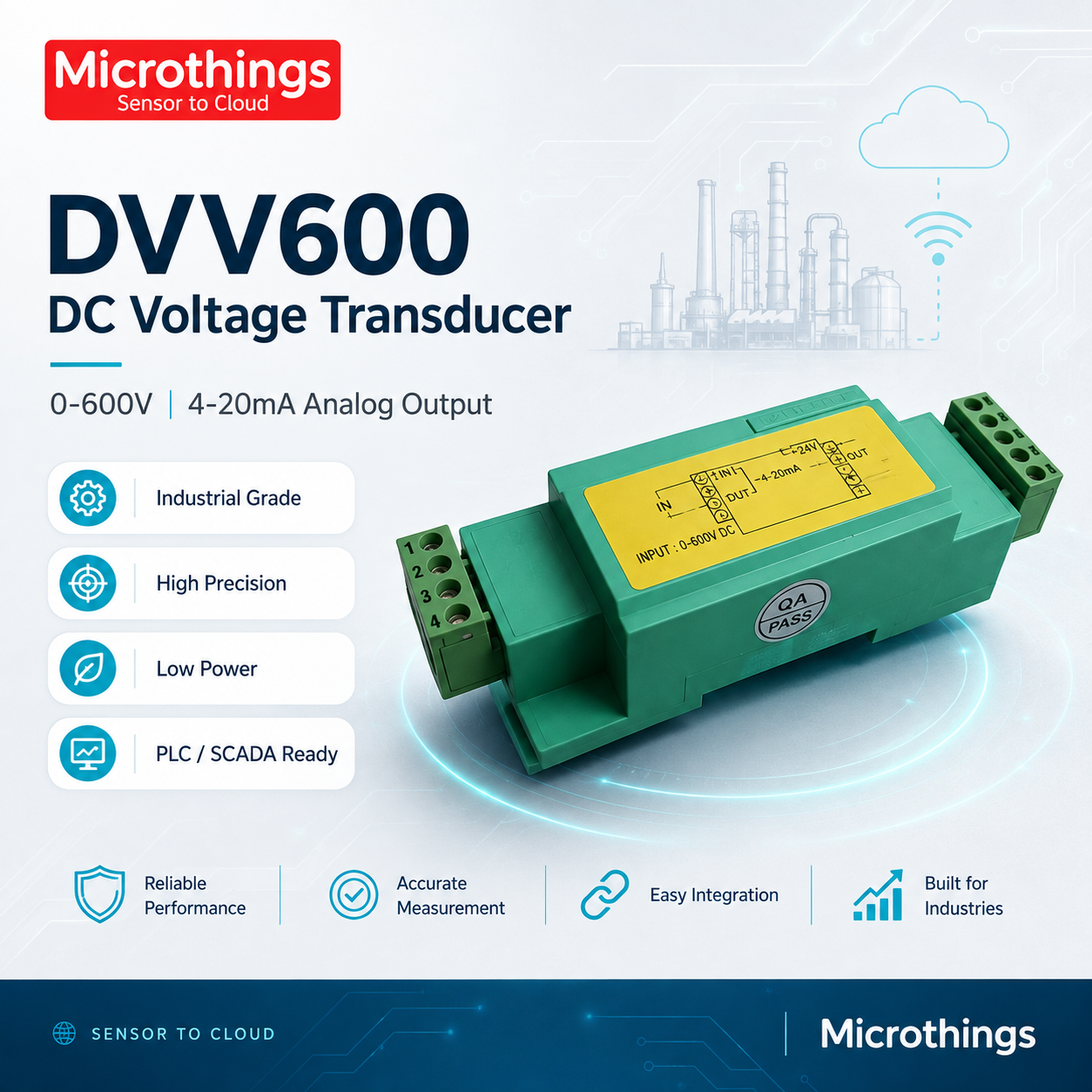

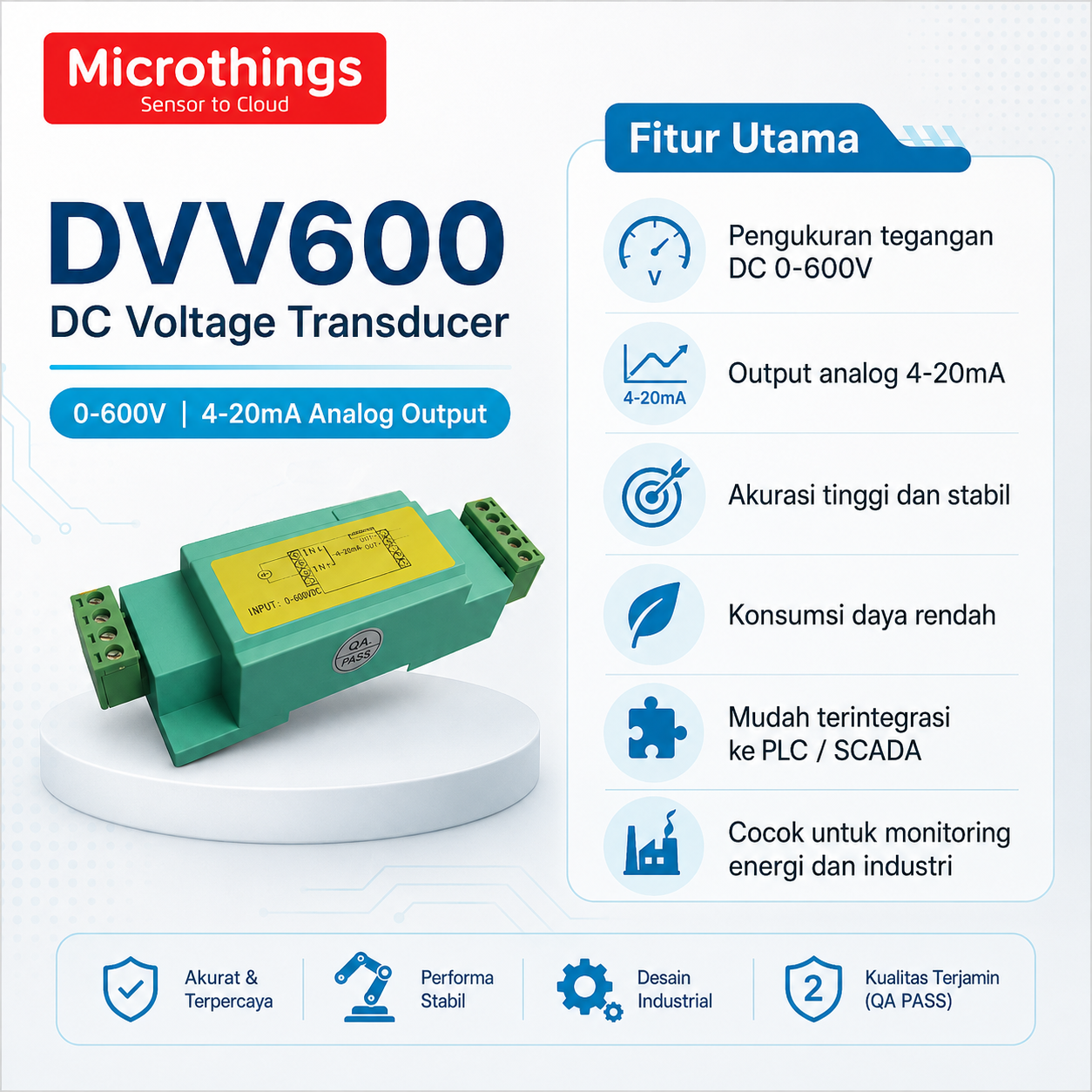

Direct Current Voltage Transducer
Model:DVV600
The DVV600 is special for measuring 0～600V direct current voltage. It is an industrial class, high reliability, low-power consumption, high stability and high precision analog transducer.
Rp2,220,000
100 in stock
CompareDirect Current Voltage Transducer
Model:DVV600
The DVV600 is special for measuring 0～600V direct current voltage. It is an industrial class, high reliability, low-power consumption, high stability and high precision analog transducer.
Introduction:
The DVV600 is special for measuring 0～600V direct current voltage. It is an industrial class, high reliability, low-power consumption, high stability and high precision analog transducer.

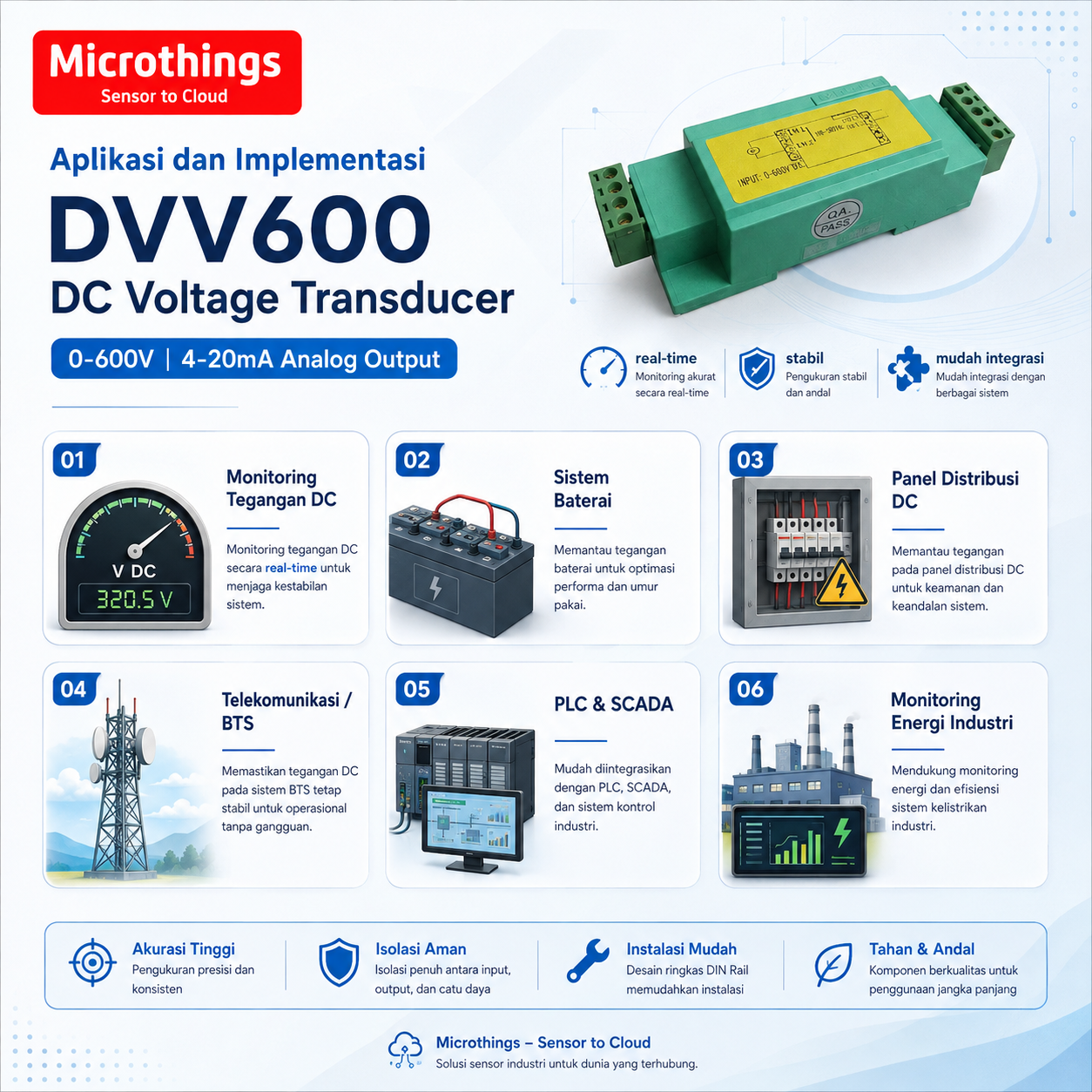

The DVV600 is used widely as a direct current voltage measure of Base Transceiver Station, diesel generator rooms, engine room, transformer substations, telecommunication equipment rooms, power supply systems and so on.
| Weight | 500 kg |
|---|
Spesification:
Rated Power Input:12VDC
Measurement Range:0～600VDC
Output Voltage:0～5V
Precision:+/-1%;
Relative Humidity:10~90%RH.;
Operation Temperature:-30~80℃;
Power Consumption:<20mA
Dimension:(HxWxD) 98x56x42mm;
Net Weight:98g.
Based on 0 reviews
Be the first to review “Direct Current Voltage Transducer”
You must be logged in to post a review.
Related products
- Power Meter Transducers
Single phase Smart Electric Transducer
Single phase Smart Electric Transducer
Spesification :
Special for single-phase AC power voltage,current,active power,reactive power,power factor measurement,can choose 1~3 parameters output;
Voltage range: 100V,260V,450V optional;
Current range: 1A,5A optional,higher than 5A need external transformer;
Output: 0~20mA,4~20mA,0~5V,0~10V;
Working Power: 12V or 24V DC.SKU: PTA100 - Power Meter Transducers
Single phase Voltage Transducer With Analog Ouput 4-20mA
VTI100 khusus untuk pengukuran tegangan daya AC satu fase. Ini adalah kelas industri, keandalan tinggi, konsumsi daya rendah, stabilitas tinggi dan transduser analog presisi tinggi.
VTI100 digunakan secara luas sebagai pengukur tegangan Base Transceiver Station, ruang generator diesel, ruang mesin, gardu transformator, ruang peralatan telekomunikasi, sistem catu daya, dan sebagainya.SKU: VTI100 - Power Meter Transducers
AC Power Failure Detector
AC Power Failure Detector
Deskripsi:
Tegangan pemantauan: AC380V ± 20%, sistem empat fase tiga fase.
Jika terdeteksi satu fase matikan, itu akan mengeluarkan sinyal alarm ke panel alarm;
Produk ini memiliki kehandalan tinggi, anti gangguan, sensitivitas tinggi, respon cepat dan sebagainya
Berlaku: kamar, stasiun pangkalan, gudang, laboratorium, dan acara listrik anti-mati penting lainnya.
Alarm Daya: Input, output, dan daya sepenuhnya terisolasi, aman dan andal;
Sensitivitas tinggi: deteksi akurat, tidak ada laporan kesalahan;
Bentuk keluaran: keluaran alarm kontak kering, NO atau NC opsional.
Instalasi: Pemasangan lubang jangkar
Arus diam: <45mA;
Alarm saat ini: <65mA;
Lingkungan kerja: -10 ~ 55 ℃, 10 ~ 98% RH;SKU: AVD300
