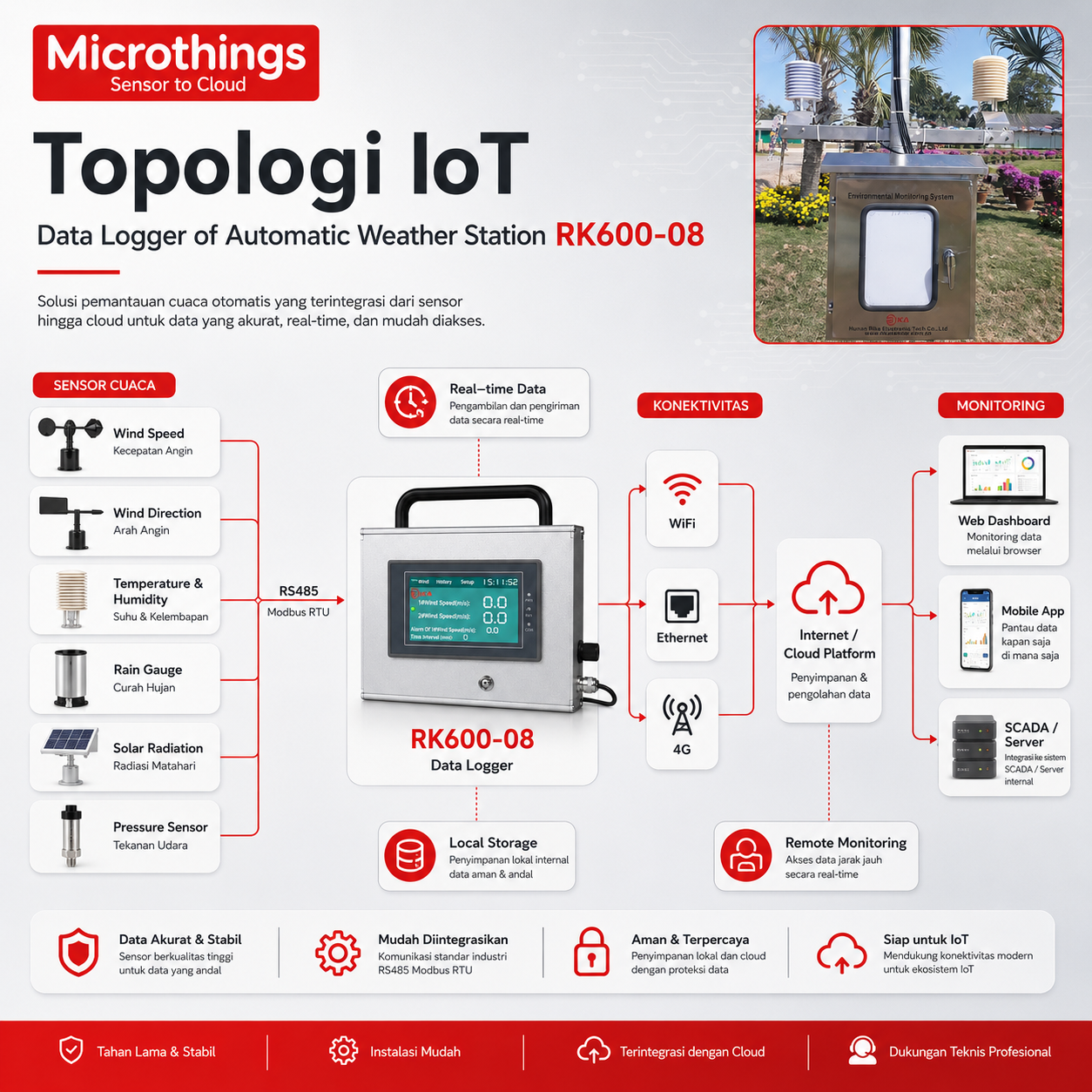

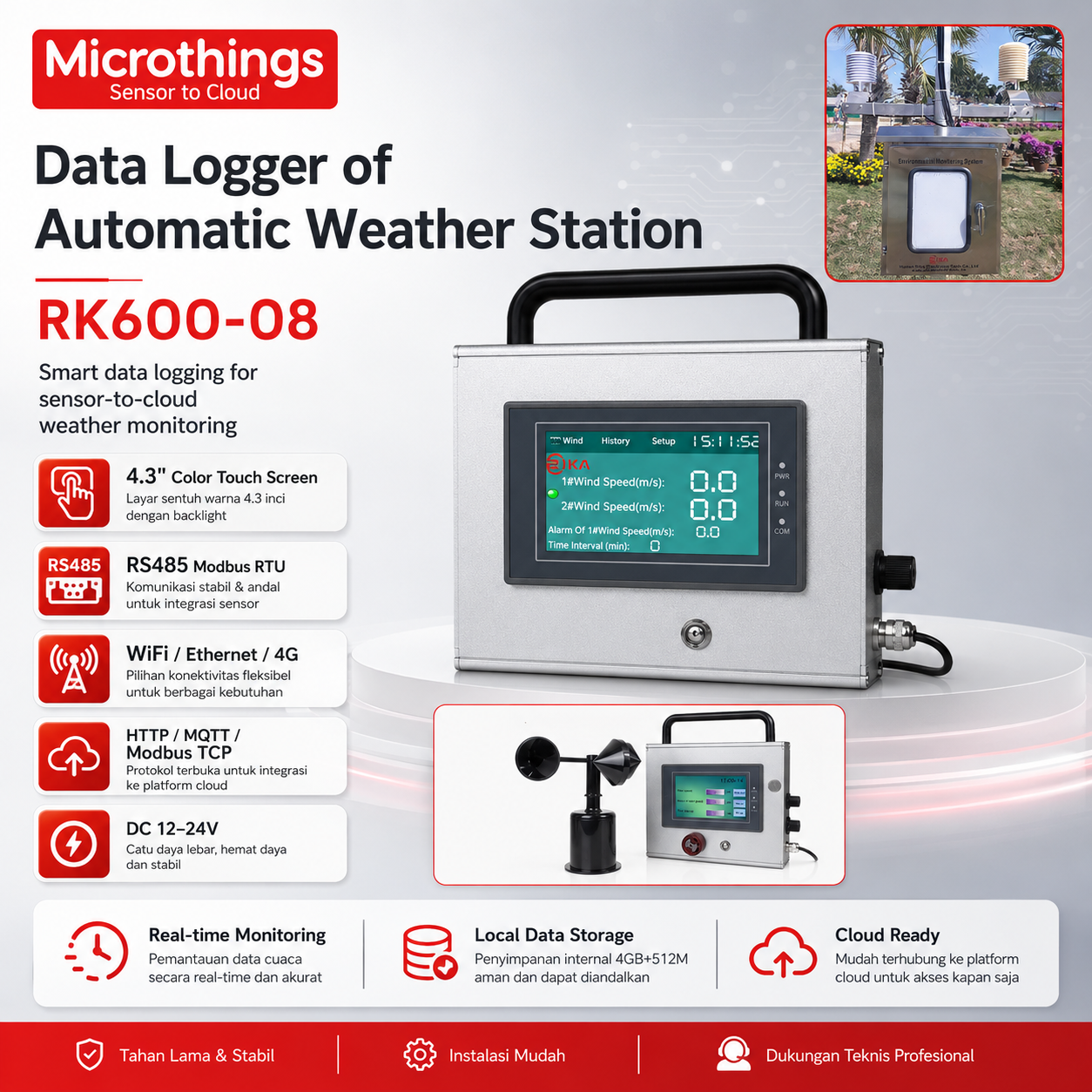

RK600-08 Data Logger dengan akuisisi data, penyimpanan, transmisi dan manajemen, dan fungsi lainnya, adalah komponen inti dari stasiun cuaca otomatis, yang dapat menghubungkan 32 parameter pada saat yang sama, memiliki pengaturan dan layar LCD warna, dapat berkomunikasi dengan PC melalui kabel atau koneksi nirkabel , menyediakan protokol komunikasi, nyaman untuk pengembangan sekunder.
Specifications
LCD: 4.3” color touch screen
Storage type: Internal storage or external U_disk is optional
Internal storage: 65000 pieces of data can be stored.
Data interface: RS232 or RS485(customized)
Communication mode (Select communication mode): 48M
Communication protocol: MODBUS-RTU(Open communication protocol, the user can convenient for secondary development)
Supply: 12VDC with 100-240VAC adapter, solar power supply system optional
Record interval: 1min-240min adjustable
Measurement parameters: 32 Max.
Power consumption: <4W
Operating temperature: -40-+75℃
Internal protection: Built-in power isolation protection
HMI processor: ARM RISC 528MHz
Data cloud platform: Upload data to cloud platform through GPRS module or WiFi module.
Relay and alarm output: Customized alarm and relay control output
