Battery Monitoring System

Sistem Pemantauan Baterai (BMS) merupakan komponen penting yang digunakan untuk mengelola dan melindungi baterai isi ulang (seperti pada kendaraan listrik, penyimpanan energi terbarukan, elektronik portabel, dll.).

Fitur Battery Monitoring System :

Desain Khusus untuk Sistem Telekomunikasi , Data Centre, Battery Storage 28V atau 48V
24/7/365 Pemantauan Online & Notifikasi Alarm Jarak Jauh

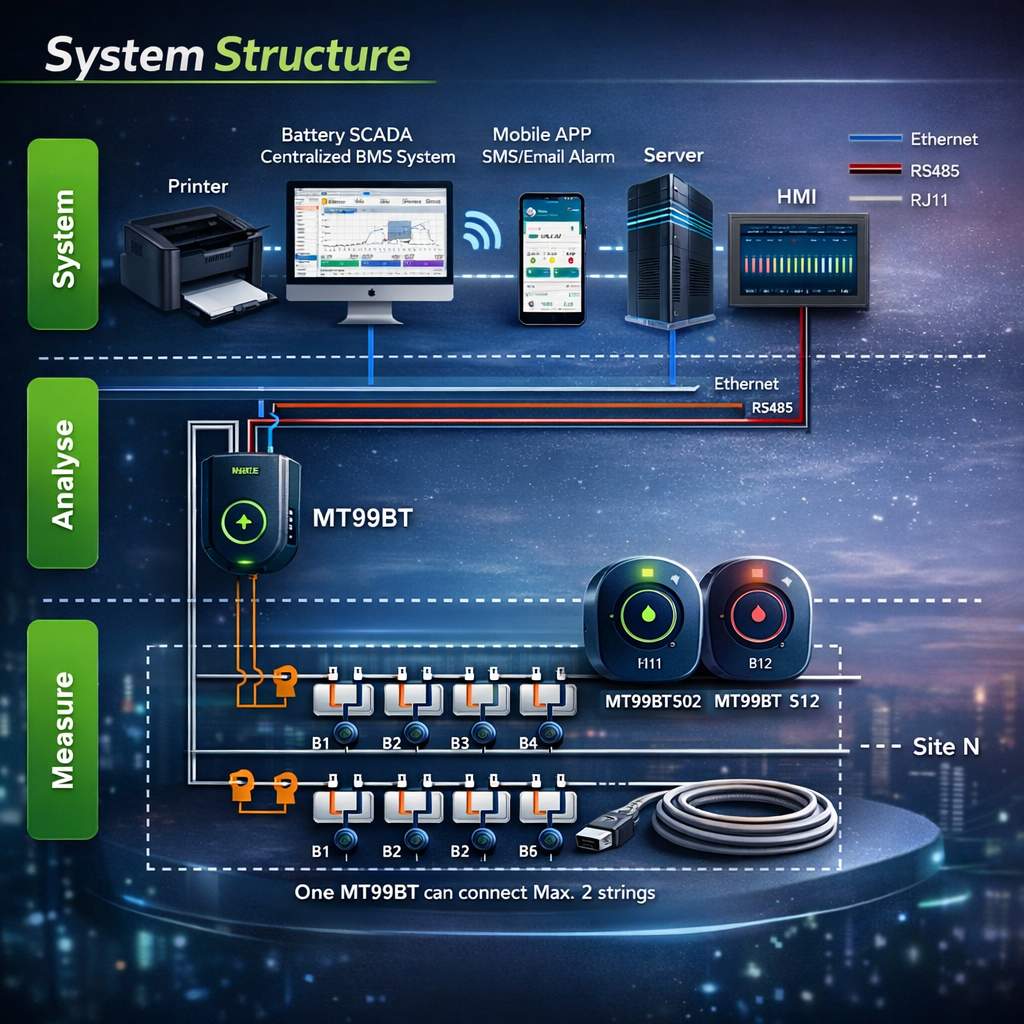

Solusi Kompetitif Biaya, Dukungan Maks. 2 Senar Baterai, Setiap Senar Mendukung Maks. 60pcs Baterai
Protokol Multi Komunikasi (Modbus-RTU, MODBUS-TCP, SNMP)
Mematuhi IEEE 1188-2005

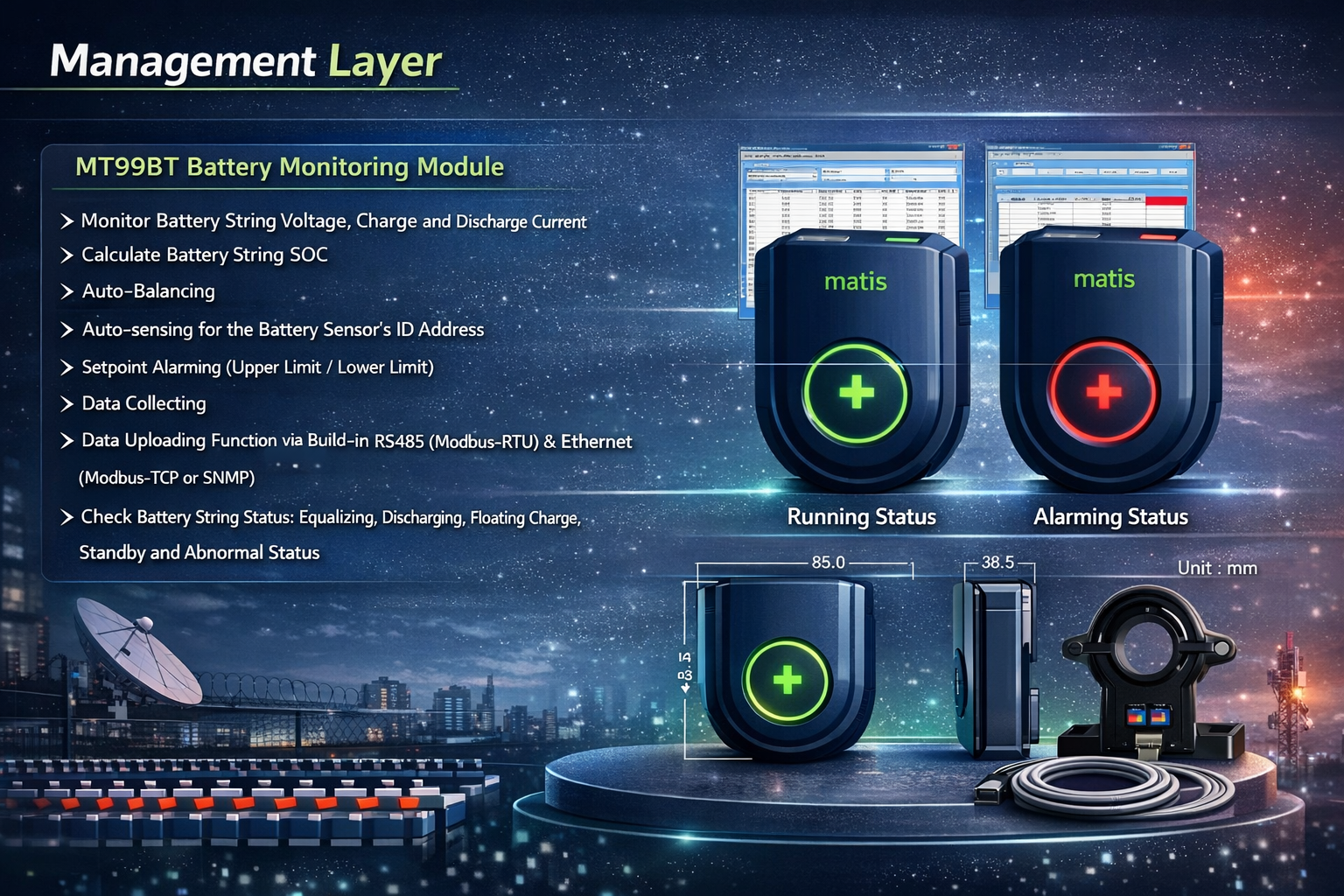

Spesification MT99BT Battery Monitoring Module :
1. Monitor battery string voltage, charge, and discharge current
2. Calculate the battery string SOC.
3. Auto-Balancing
4. Auto-sensing for the Battery Sensor’s ID Address
5. Setpoint Alarm (Upper Limit and Lower Limit)
6. Data Collection
7. Data Uploading Function via Build-in RS485 (Modbus-RTU) and Ethernet (Modbus-TCP or SNMP)
8. Check Battery String Stat

Technology Parameter
Application : DC Power system (Telecome)
Rated Iput Voltage : 24VDC or 48VDC, Range: 20V-60VDC
Measuring Voltage : 0-800V (Accuracy:±0.5%)
Measuring Current :-1000A – +1000AV (by Hall Sensor,Accuracy:±2.0%)
Power Consumption :＜2W

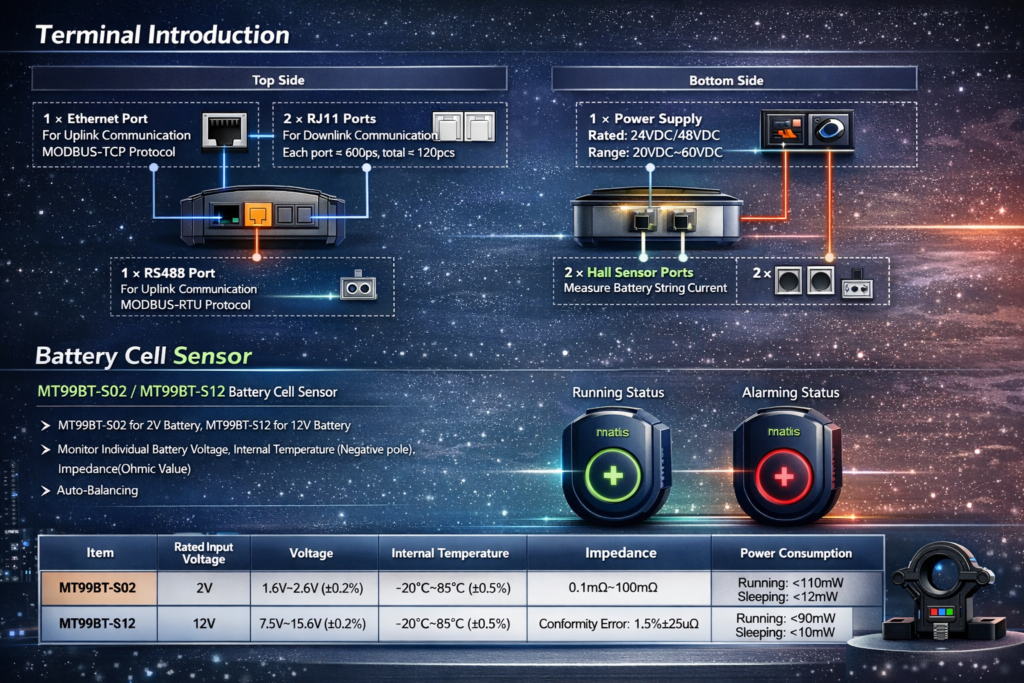

Up-link Communication : 1 Ethernet port(10/100M),Modbus-TCP /SNMP protocal; 1 RS485 port, Modbus-RTU protocal,Baudrate:9600bps,19200bps,38400bps
Down-link Communication : 2RJ11 ports, each port connect Max.60pcs batterirs, total Max.120pcs batteries

Standart Package :
1. Battery String Sensor MT99BM‐SS 1 Unit = https://www.microthings.id/product/battery-string-sensor-mt99bm%e2%80%90ss/
2. Battery Cell Sensor MT99BT‐CS02 8 Unit = https://www.microthings.id/product/battery-cell-sensor-mt99bt%e2%80%90cs02/
3. Auxiliary Hall Sensor MT99BMHS050EK1T5 1 Unit = https://www.microthings.id/product/auxiliary-hall-sensor-mt99bmhs050ek1t5/
4. Auxilary‐Power Supply MT99BM‐PS 1 Unit = https://www.microthings.id/product/auxilary%e2%80%90power-supply-mt99bm%e2%80%90ps/
