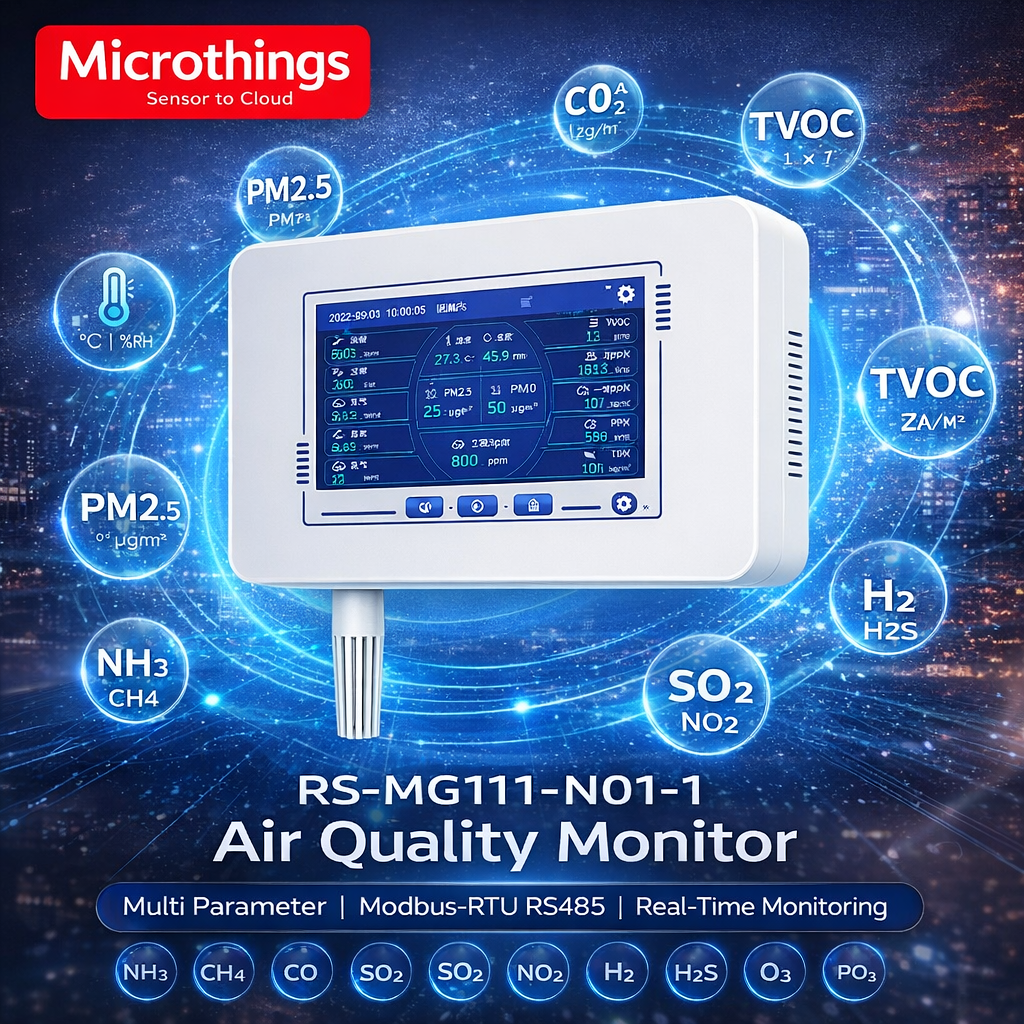

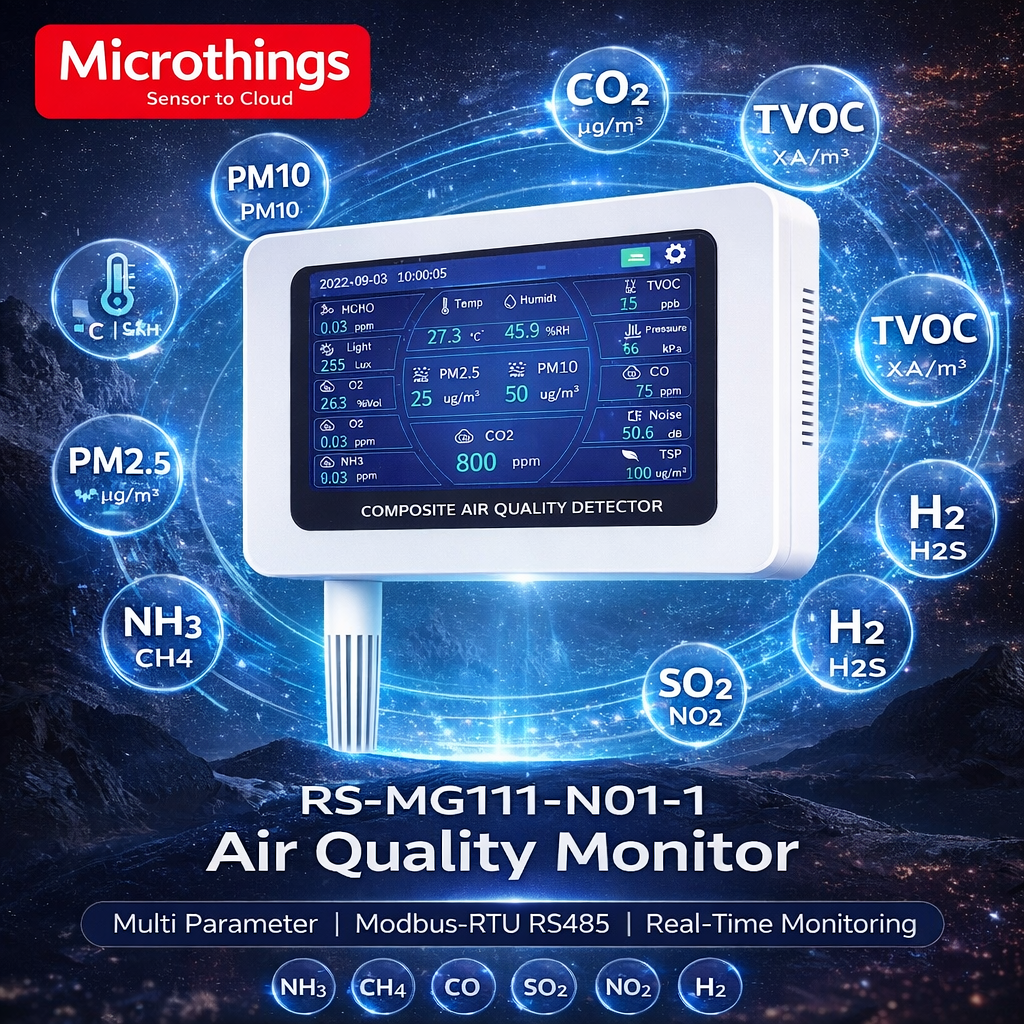

Air Quality Monitor

Availability:

100 in stock


Monitor kualitas udara terintegrasi ini dapat memantau suhu, kelembaban, PM2.5, PM10, TSP, tekanan atmosfer, cahaya, kebisingan, bau, TVOC, CO2, formaldehida, O3, CO, CH4, O2, SO2, NO2 , H2, H2S, NH3 dan indikator kualitas udara lainnya. Pengunggahan data melalui RS485, wifi, dan Ethernet. Ponsel atau komputer untuk mewujudkan tampilan data jarak jauh.

Rp21,000,000 Rp23,830,400

100 in stock

Compare

Monitor kualitas udara terintegrasi ini dapat memantau suhu, kelembaban, PM2.5, PM10, TSP, tekanan atmosfer, cahaya, kebisingan, bau, TVOC, CO2, formaldehida, O3, CO, CH4, O2, SO2, NO2 , H2, H2S, NH3 dan indikator kualitas udara lainnya. Pengunggahan data melalui RS485, wifi, dan Ethernet. Ponsel atau komputer untuk mewujudkan tampilan data jarak jauh.

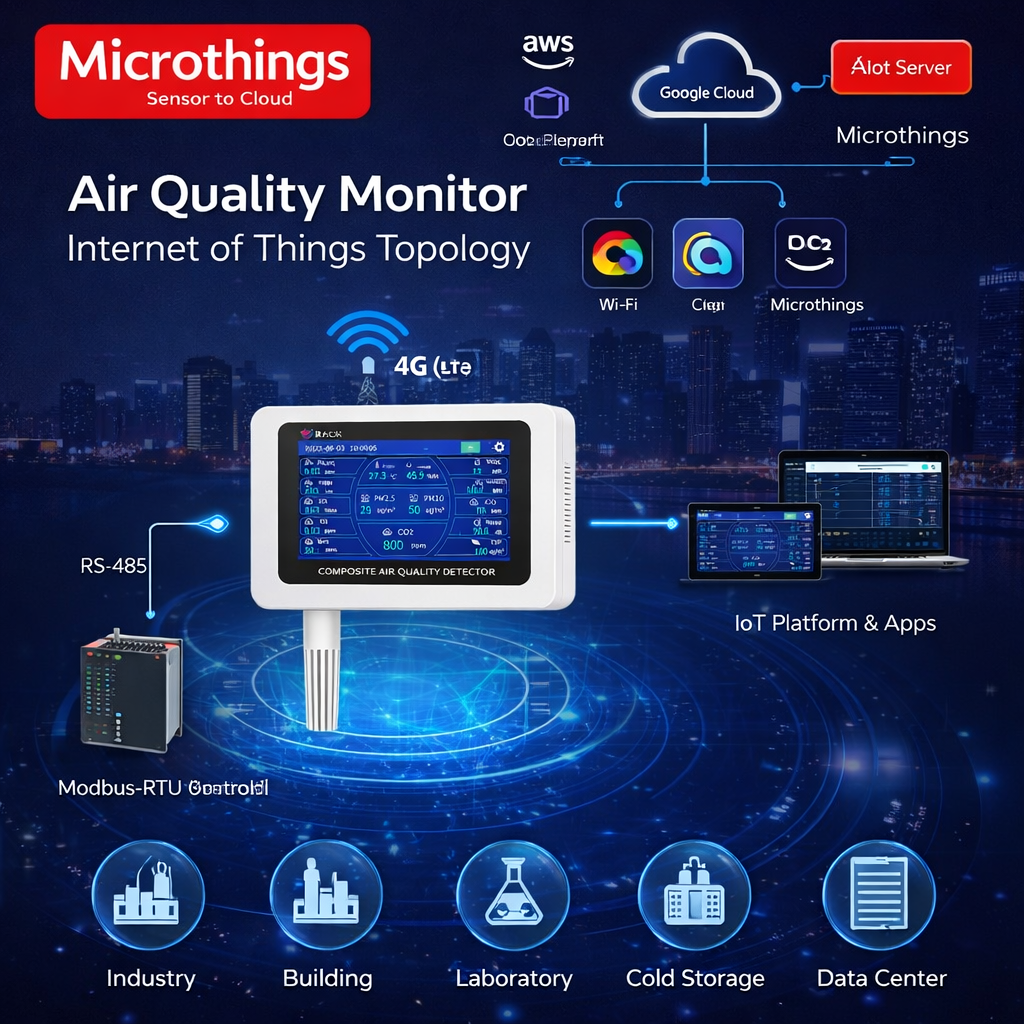

Monitor kualitas udara kami menggunakan layar LCD layar besar bawaan, yang dapat memantau 11 indikator udara dalam ruangan. Data terukur dapat diunggah ke platform data gratis melalui RS485, WIFI, atau Ethernet, sehingga pengguna dapat melihatnya secara real-time. Monitor kualitas udara ini banyak digunakan di gedung HVAC, gedung hemat energi, rumah pintar, sekolah, stasiun bandara, dan tempat lainnya.

Patameters & Datasheets :
Model: RS-MS111
Power supply: DC 10-30V
Detection parameters: Temperature, Humidity, PM2.5, PM10, TSP, Air Pressure, Light, Noise, Odor, TVOC, CO2, Formaldehyde, O3, CO, CH4, O2, SO2, NO2, H2, H2S, NH3
Working environment: -10℃-55℃, 0~95%RH without condensation
Signal output: RS485/WIFI/Ethernet
Product material: ABS
Installation method: wall hanging, ceiling

Fitur monitor kualitas udara
Detektor kualitas udara adalah produk yang dapat mendeteksi formaldehida, PM2.5, TVOC, iluminasi, kebisingan, suhu dan kelembapan serta gas lainnya secara real-time. Ukuran kecil, mudah dipindahkan. Melalui sensor internalnya, ia dapat secara akurat mengukur konsentrasi berbagai polutan. Alarm ketika konsentrasi melebihi standar.

Measurment Range :
Detect item;Range;Resolution; Accuracy
PM2.5:0~1000ug/m3 ;1ug/m3;±3%FS(@100μg/m3,25℃,50%RH)
PM10: 0~1000ug/m3
TSP: 0~20000ug/m3;1ug/m3;±%25 or ±40μg/m3, whichever is greater (@1000ug/m3, 25℃, 50%RH)
Temperature:-40℃~+80℃; 0.1℃ ;±0.5℃(25℃)
Humidity: 0%RH-100%RH;0.1%RH;±3%RH (60%RH, 25℃)
Atmospheric pressure: 0~120Kpa; 0.1Kpa; ±0.15Kpa@25℃101Kpa
Illumination:0~200,000 Lux;1Lux;±7%(25℃)
TVOC: 0~60000ppb; 1ppb; 8%FS(@C2H6O,0.5ppm,25℃,50%RH)
CO2: 0~5000ppm; 1ppm ±(50ppm+ 3%F·S)0~5ppm ;0.01ppm ;±5%FS (@1ppm, 25℃, 50%RH)
O3: 0~10ppm; 0.01ppm; ±6%FS (@5ppm, 25℃, 50%RH)
O2: 0~25%Vol; 0.1%Vol; ±2%FS
H2S: 0~100ppm; 1ppm ;±2ppm or ±10%
CH4: 0~100%LEL; 1%LEL; ±5%FS
CO: 0~1000ppm; 1ppm; ±5ppm or ±10%
NO2: 0~20ppm; 0.1ppm; ±5%FS
SO2: 0~20ppm; 0.1ppm; ±5%FS
H2: 0~1000ppm; 1ppm; ±5%FS
NH3: 0~100ppm; 1ppm ±8%
Noise:30~130db 0.1db;±0.5dB (94dB@1kHz)

Table Air Quality Monitoring
Table Air Quality Monitoring

Catatan : Silahkan Hubungi Team Sales Engineer Kami Untuk Order Sensor ( Customized )

SKU: RS-MS111 Category: Tag:
Weight2 kg

Patameters & Datasheets :
Model: RS-MS111
Power supply: DC 10-30V
Detection parameters: Temperature, Humidity, PM2.5, PM10, TSP, Air Pressure, Light, Noise, Odor, TVOC, CO2, Formaldehyde, O3, CO, CH4, O2, SO2, NO2, H2, H2S, NH3
Working environment: -10℃-55℃, 0~95%RH without condensation
Signal output: RS485/WIFI/Ethernet
Product material: ABS
Installation method: wall hanging, ceiling
