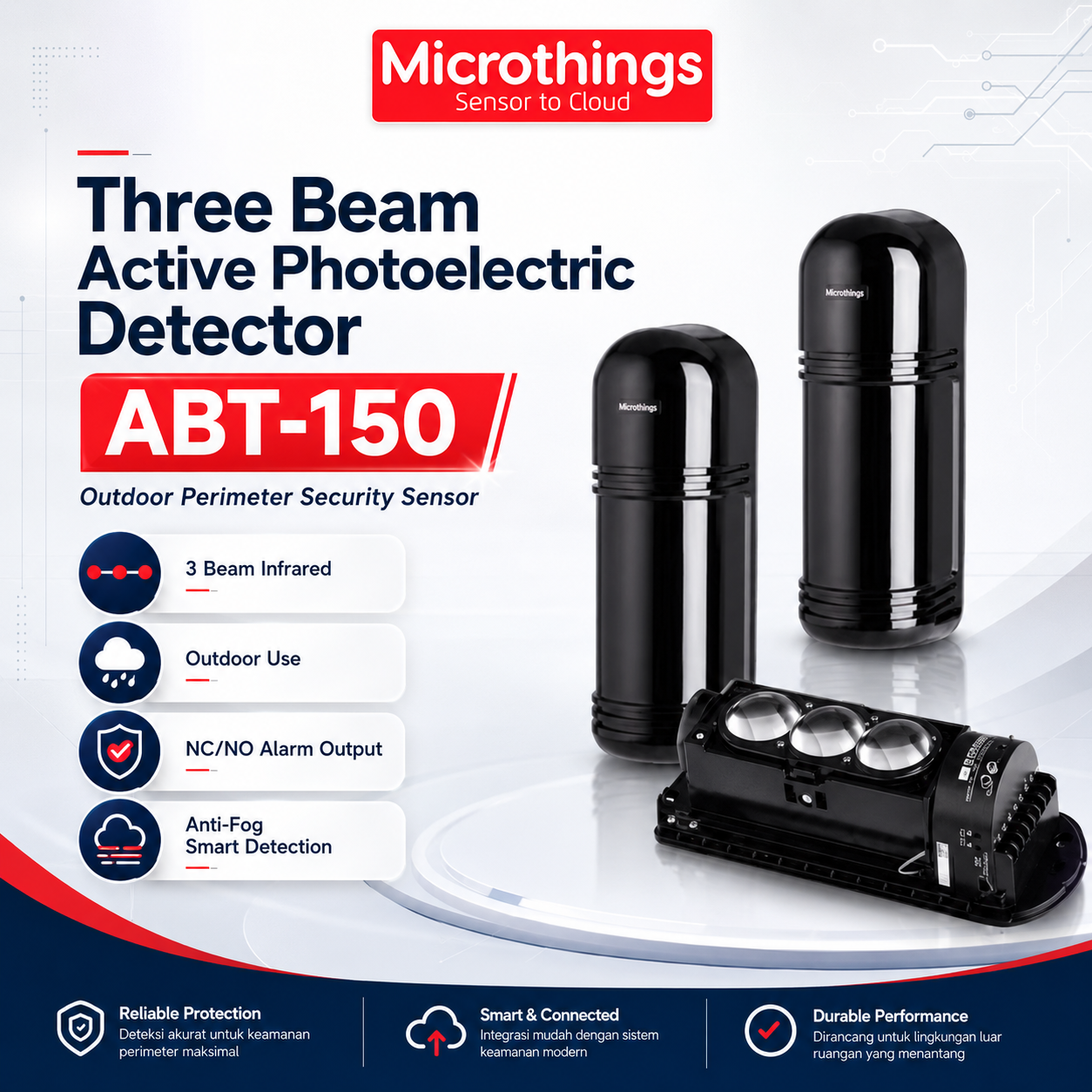

Three Beam Active Photoelectric Detector


Compare

Introduction:
The Active photoelectric Beam detectors are perimeter intrusion detector for outdoor application, E.g.: fence, wall, outside.
In standby mode, the photoelectric beams will create some invisible infrared rays. Once anybody pass through them, the invisible infrared rays will be block, and create alarm signal then send to the alarm control panel.

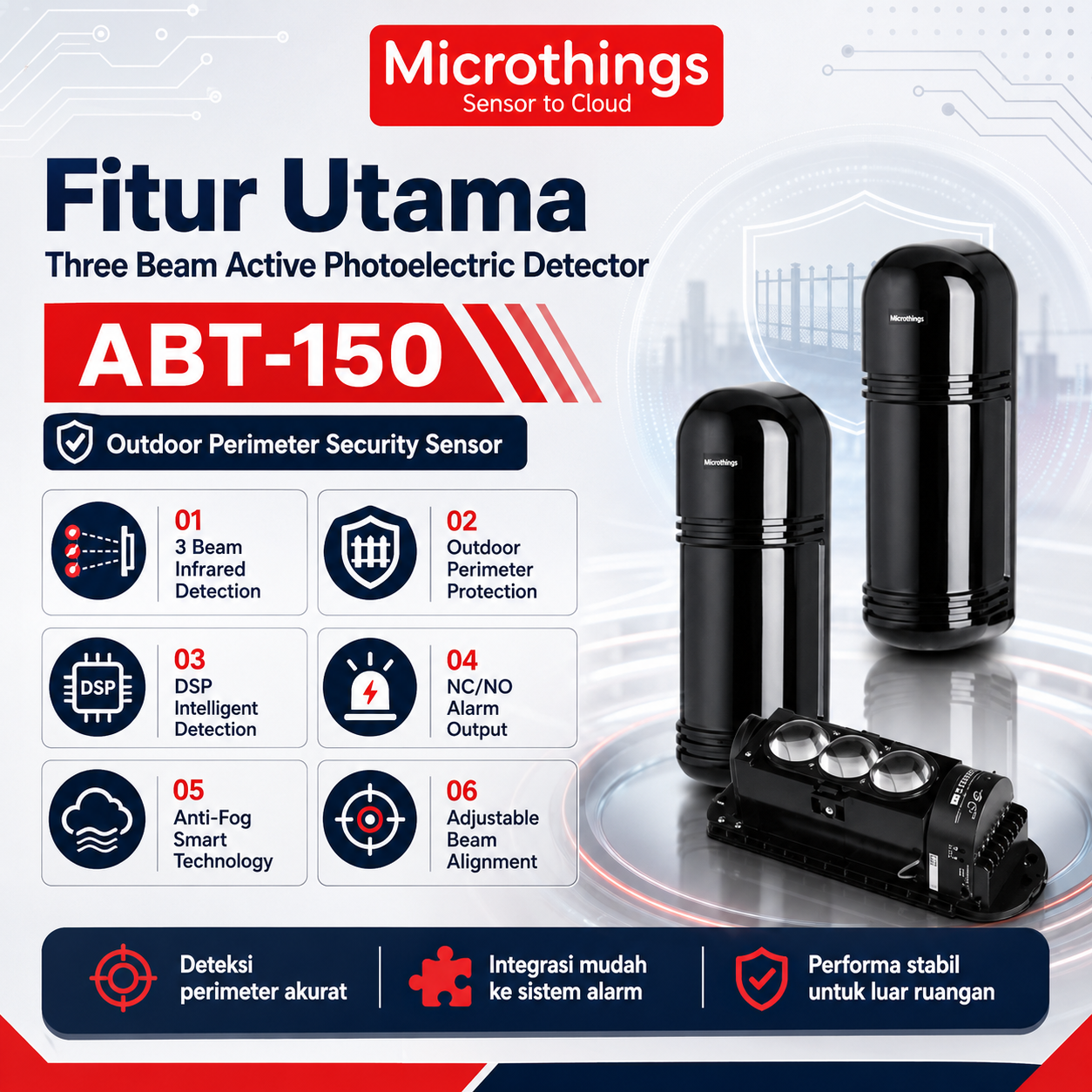

Features :
Integrated DSP chip, patented multi-dimensional fault-tolerant, true detection alarm technology.
Wired/BUS compatible, 8 sections digital frequency conversion;
Dynamic frequency analysis, intelligent alarm linkage;
Unique displacement receiving, strong power digital filter;
Intelligent power transmission, intelligent anti-fog;
Adopt coaxial aspherical dual-focus exact optical focusing lens;
Can adjust beams without opening outer case.

Rp1,290,000

Three Beam Active Photoelectric Detector

3-Beam Active Photoelectric Detector. The Active photoelectric Beam detectors are perimeter intrusion detector for outdoor application, E.g.: fence, wall, outside.

Introduction:
The Active photoelectric Beam detectors are perimeter intrusion detector for outdoor application, E.g.: fence, wall, outside.
In standby mode, the photoelectric beams will create some invisible infrared rays. Once anybody pass through them, the invisible infrared rays will be block, and create alarm signal then send to the alarm control panel.

Features :
Integrated DSP chip, patented multi-dimensional fault-tolerant, true detection alarm technology.
Wired/BUS compatible, 8 sections digital frequency conversion;
Dynamic frequency analysis, intelligent alarm linkage;
Unique displacement receiving, strong power digital filter;
Intelligent power transmission, intelligent anti-fog;
Adopt coaxial aspherical dual-focus exact optical focusing lens;
Can adjust beams without opening outer case.

SKU: ABE-250 Category:
Weight 2000 g

Spesification :
Type :ABT-150
Outdoor detection distance :250
Indoor detection distance 400m
Number of beams :2
Response speed :50~700m/s
Alarm output-normal :Normally close and normally open(NC&NO)contact capacity AV/DC 30V/0.5mA
Alarm linkage :√
Working voltage :DC 13.8~24V; AC 11~18V
Working current :65mA
Long-life mode :35mA
Environment :temperature:-25℃~65℃; humidity: 5%—95% (RH)
Tamper output :Normally close(NC) contact capacity AV/DC 24V/0.5mA
Adjust angle :Horizontal:180°(±90°) ; Vertical:±10°
Case material :Germany PC
