Submersible Ceramic Capacitance Level Sensor HPT613-D


Submersible Ceramic Capacitance Level Sensor

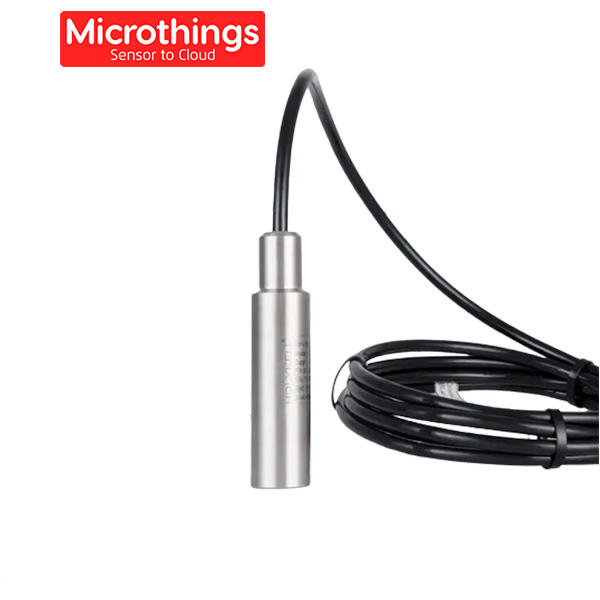

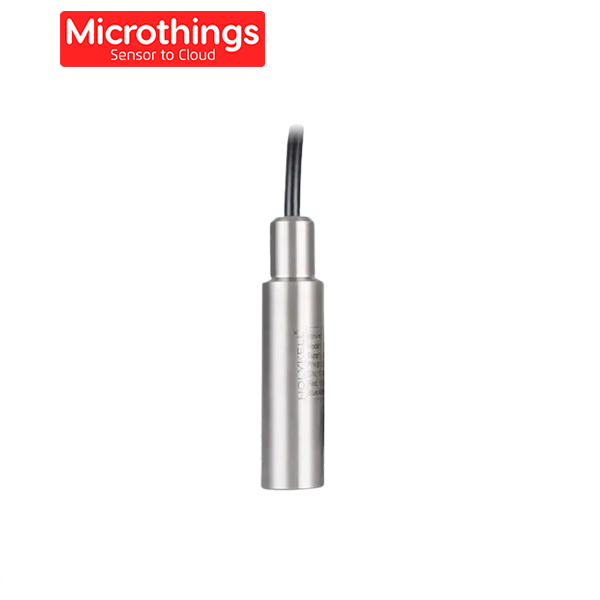

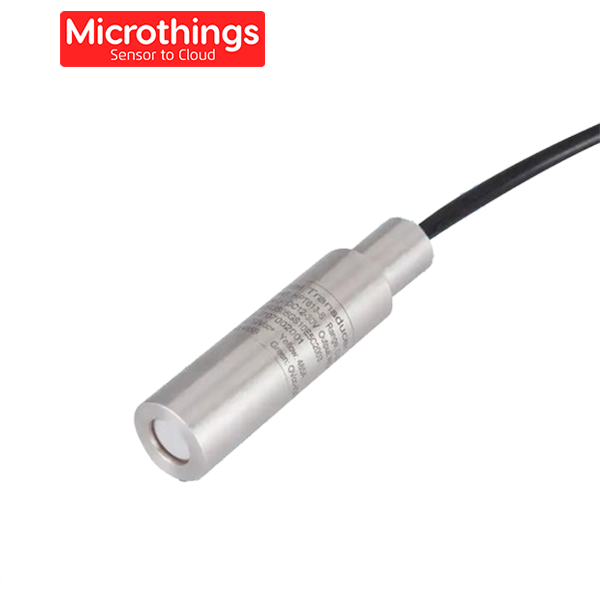

Model : HPT613-D Submersible Ceramic Capacitance Level Sensor

HPT613-D Submersible ceramic capacitance level sensor is a liquid level measuring instrument with high stability and precision. It adopts fully sealed 316SS stainless steel body and ceramic core body, high explosion-proof and easy to clean.

Submersible Ceramic Capacitance Level Sensor
Model : HPT613-D Submersible Ceramic Capacitance Level Sensor

HPT613-D Submersible ceramic capacitance level sensor is a liquid level measuring instrument with high stability and precision. It adopts fully sealed 316SS stainless steel body and ceramic core body, high explosion-proof and easy to clean.

Technical Data
Range: 0~1 M…200 M H2O optional
Output: RS485 RTU Modbus; 4-20mA + Digital Hart
Power supply :12VDC~30VDC
Medium Compatible :316L Flush diaphragm, 316 SST, Titanium Alloy
Process connection :Flange or throw-in type
Temperature output :4~20mA or resistance signal; Range: -10…100 degree C
Accuracy: 0.15%F.S;0.25%F.S optional
Working temperature :-20°C~+80°C
Certificate: CE, ExiaII CT6 Ga, ATEX, RoHS

Application
Corrosive medium
Water level measure
Corrosive liquid level measurement
Level measurement in telecom base station
Oil level measurement

Order information
Level range : 0-0.5m , Output : 4-20mA , Power supply : 12~36VDC ,1m directly cable : IP68

Noted :
If Need Customized Please contact Us.
