Pressure Sensors

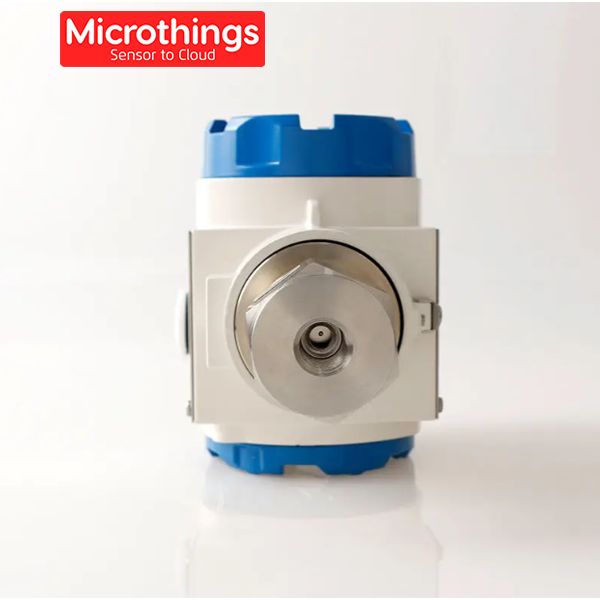

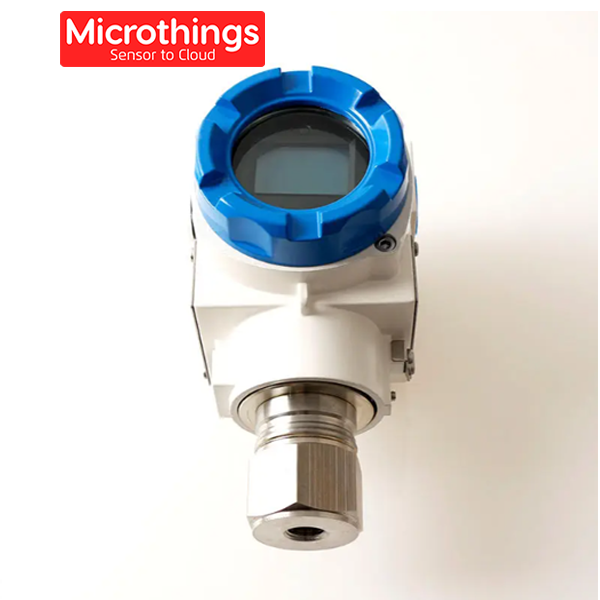

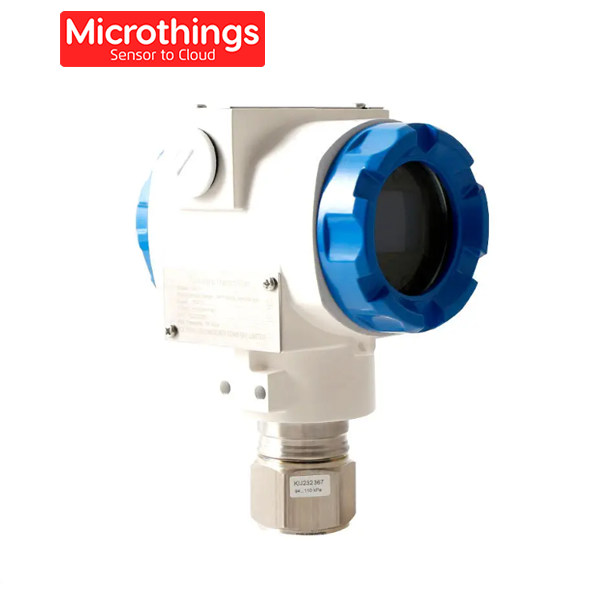

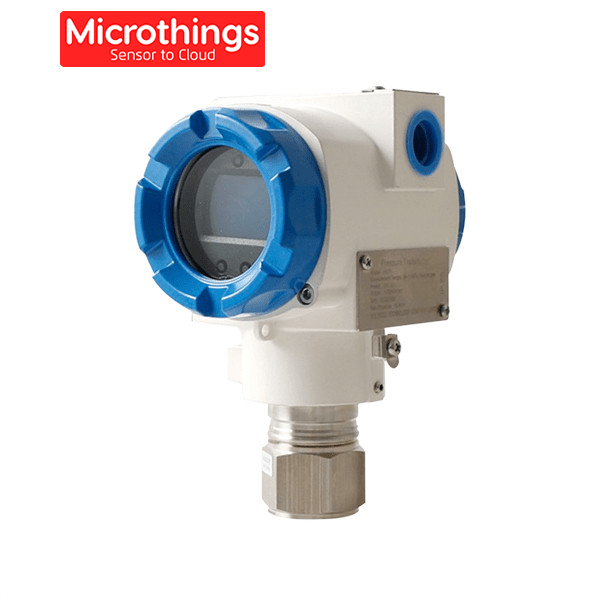

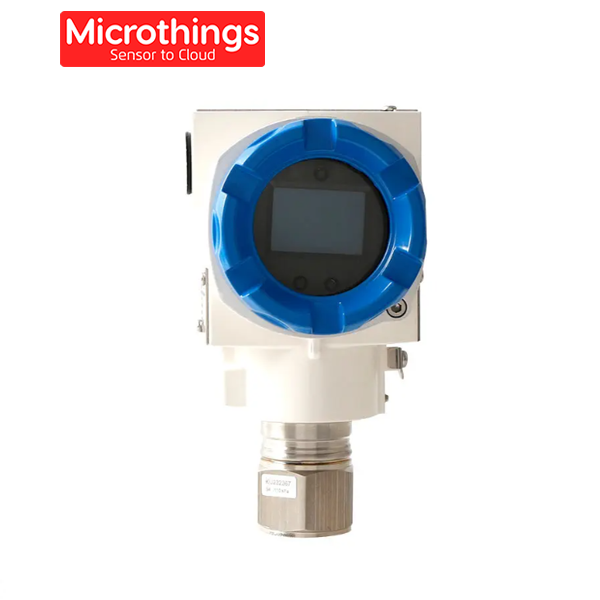

Smart Mono crystalline Silicon Pressure Transmitter HK51
Availability:
100 in stock
Smart Mono crystalline Silicon Pressure Transmitter HK51 dengan sinyal keluaran 4 … 20 mA, 4 … 20 mA HART, PROFIBUS PA atau FOUNDATION Fieldbus, dikombinasikan dengan perlindungan pengapian yang aman secara intrinsik atau tahan api (sesuai dengan ATEX).
Rp5,800,000
100 in stock
CompareSmart Mono crystalline Silicon Pressure Transmitter HK51 dengan sinyal keluaran 4 … 20 mA, 4 … 20 mA HART, PROFIBUS PA atau FOUNDATION Fieldbus, dikombinasikan dengan perlindungan pengapian yang aman secara intrinsik atau tahan api (sesuai dengan ATEX).
Spesifikasi Teknis :
Pressure range :0- 5Kpa…100Mpa
Output : 4~20mA,Hart Protocol
Display : LCD
Power supply : 12VDC~36VDC
Pressure port : M20*1.5
Accuracy : 0.075 %F.S
Working temperature : -40°C~+125°C
Certificate : CE,ExiaII CT6 Ga ,ATEX,RoHS
Keuntungan
Akurasi tinggi
Pemancar tekanan diferensial (aliran) dapat mengukur akurasi tinggi dalam rentang pengukuran 0,1~40000kPa. Migrasi titik nol positif dan negatif tidak diperlukan untuk penyesuaian linearitas.
Kemampuan beradaptasi lingkungan yang sangat baik
Kompensasi tekanan statis cerdas dan kompensasi suhu melindungi pemancar dari efek suhu, tekanan statis dan tekanan berlebih, dan meminimalkan kesalahan pengukuran komprehensif di tempat.
Aplikasi:
Area berbahaya
Tekanan absolut dan pengukur dalam gas, uap
Pengukuran level, volume, atau massa dalam cairan
Antariksa
Otomotif
Peralatan medis
HVAC
<
p style=”text-align: justify”>
| Weight | 3 kg |
|---|---|
| Dimensions | 0.0000 × 0.0000 × 0.0000 cm |
Spesifikasi Teknis :
Pressure range :0- 5Kpa…100Mpa
Output : 4~20mA,Hart Protocol
Display : LCD
Power supply : 12VDC~36VDC
Pressure port : M20*1.5
Accuracy : 0.075 %F.S
Working temperature : -40°C~+125°C
Certificate : CE,ExiaII CT6 Ga ,ATEX,RoHS
Keuntungan
Akurasi tinggi
Pemancar tekanan diferensial (aliran) dapat mengukur akurasi tinggi dalam rentang pengukuran 0,1~40000kPa. Migrasi titik nol positif dan negatif tidak diperlukan untuk penyesuaian linearitas.
Kemampuan beradaptasi lingkungan yang sangat baik
Kompensasi tekanan statis cerdas dan kompensasi suhu melindungi pemancar dari efek suhu, tekanan statis dan tekanan berlebih, dan meminimalkan kesalahan pengukuran komprehensif di tempat.
