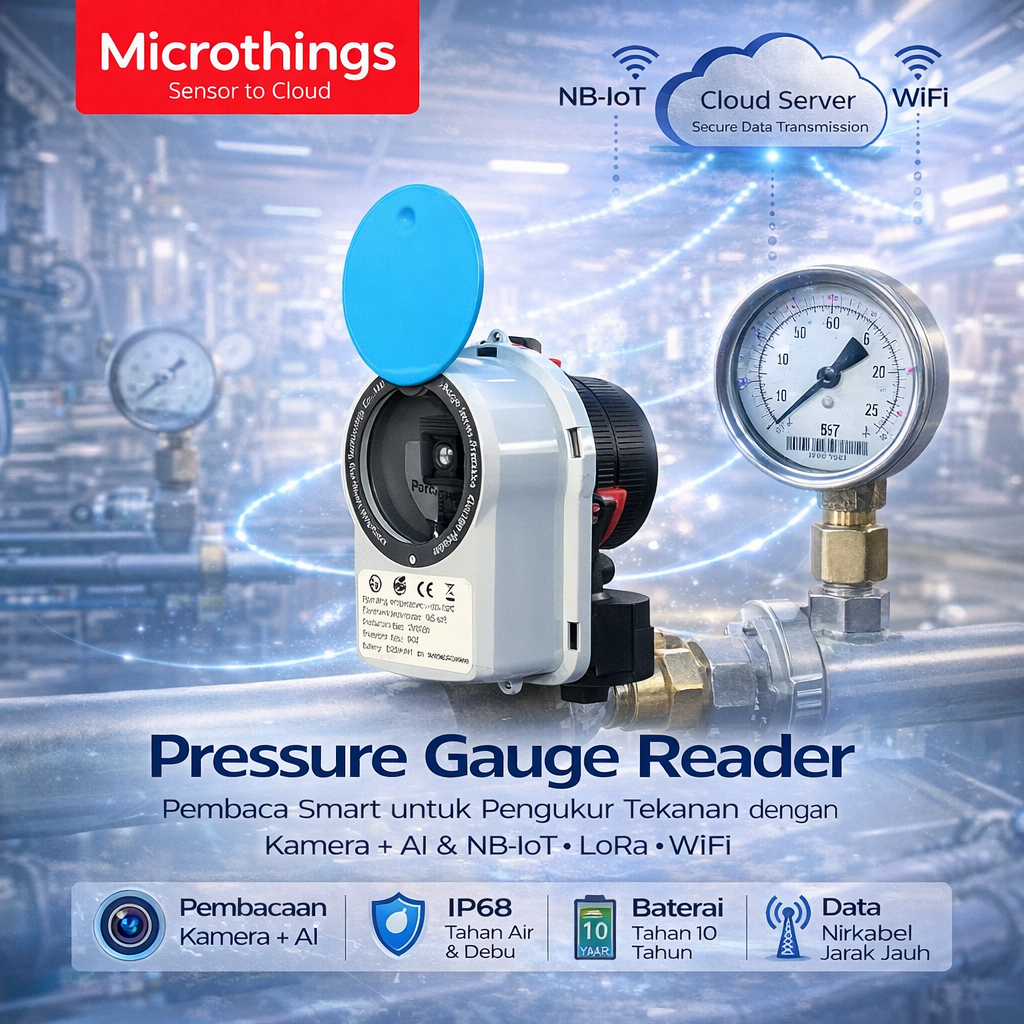

Pressure Gauge Reader


Series smart reader is designed as an effective add-on device to the current water meter.
By direct camera reading, together with the AI chip deep learning/ recognition mode, it can recognize the number/ pointer position on the met er offline, and transmit the numerical results wirelessly.
Supporting NB-loT, LoRa and other communication modules for data remote transmission, it enables the centraliz ed management of water consumption data.

Rp999,000

Pressure Gauge Reader
Model : Pressure

Introduction :
Series smart reader is designed as an effective add-on device to the current water meter.
By direct camera reading, together with the AI chip deep learning/ recognition mode, it can recognize the number/ pointer position on the met er offline, and transmit the numerical results wirelessly.
Supporting NB-loT, LoRa and other communication modules for data remote transmission, it enables the centraliz ed management of water consumption data.

Technical Spesification:
Name : Auge Series Water Meter Reader

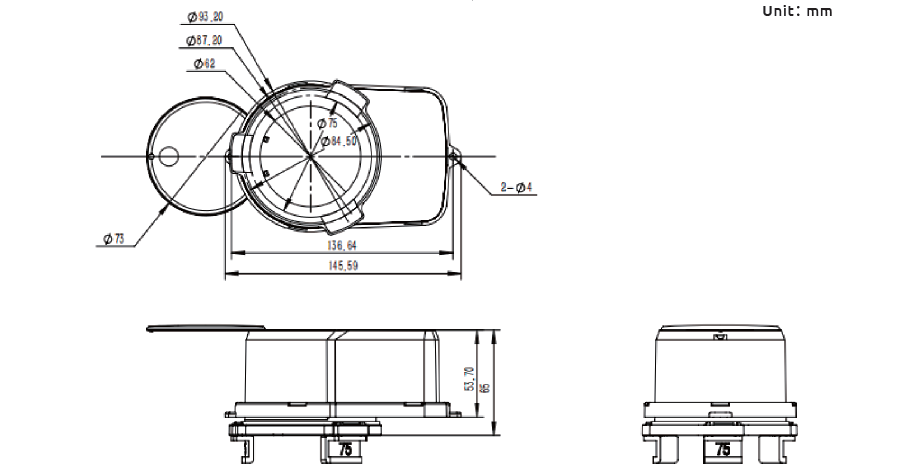

Size : 135mm*95mm*55mm
Weight : 200g
Protection Level : IP68
Battery Capacity : 8500mAh
Technology : Camera + AI Recognition
Power Supply : Lithium Battery Supply
Voltage : 3.6 V
Communication Mode : NB-loT, LoRa, WiFi, Sigfox
Standby Power : ≤7uA
Electromagnetic field : E1
Working Current : ≤200mA
Installation Environment : Class B, no strong magnetic environment
Battery Life : 10 years
ESDProtection Level : > 10 kv
Product List : Smart Reader x1, Instruction for use x1, Warranty Card x1, Desiccant x 1

Noted :
If Need Customized Please Contact Us.

Weight 500 kg

Technical Spesification:
Name : Auge Series Water Meter Reader
Size : 135mm*95mm*55mm
Weight : 200g
Protection Level : IP68
Battery Capacity : 8500mAh
Technology : Camera + AI Recognition
Power Supply : Lithium Battery Supply
Voltage : 3.6 V
Communication Mode : NB-loT, LoRa, WiFi, Sigfox
Standby Power : ≤7uA
Electromagnetic field : E1
Working Current : ≤200mA
Installation Environment : Class B, no strong magnetic environment
Battery Life : 10 years
ESDProtection Level : > 10 kv
Product List : Smart Reader x1, Instruction for use x1, Warranty Card x1, Desiccant x 1
