OBD GPS Tracker 4G

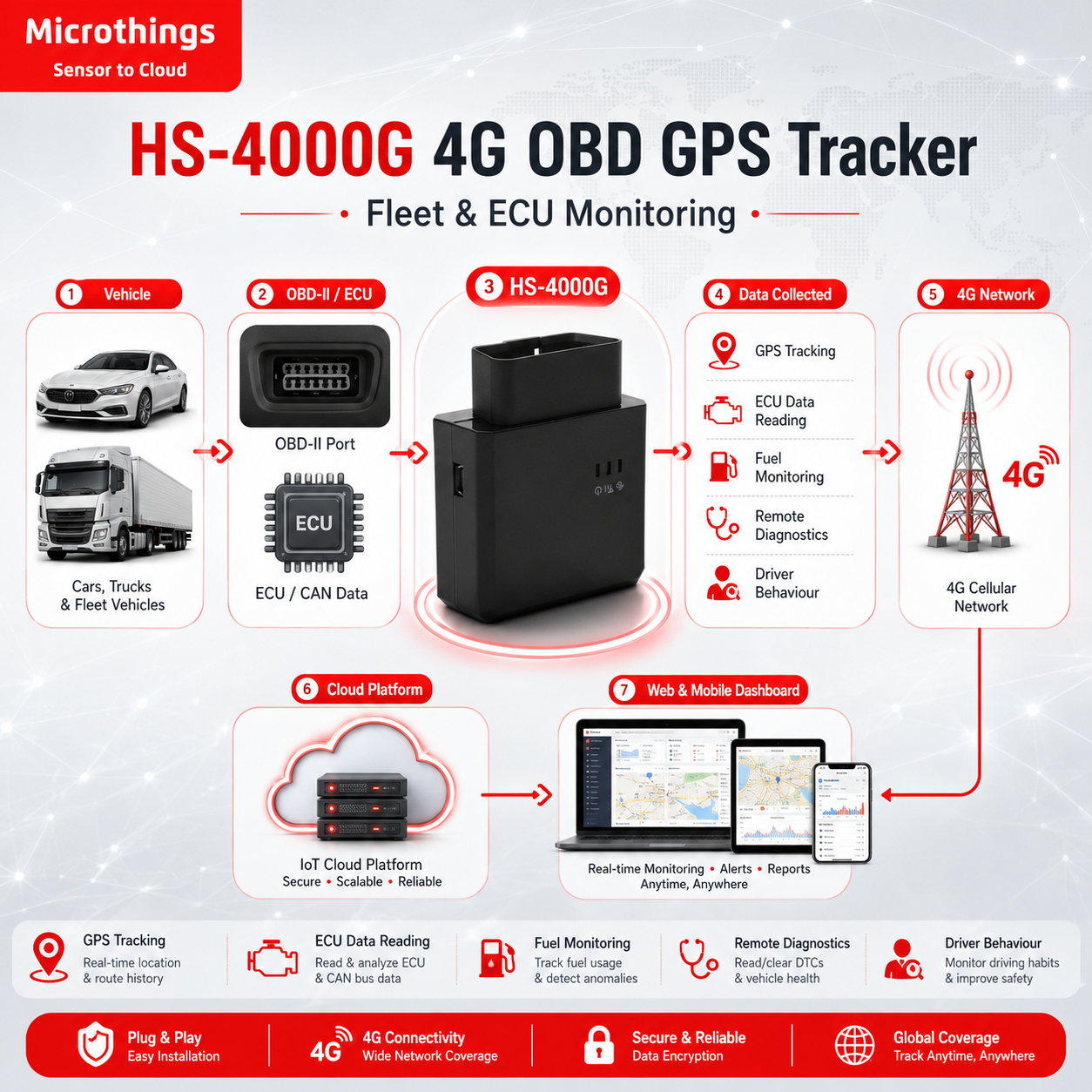

HS-4000G is a plug & play 2G + 3G + 4G LTE OBD gps tracker that can install in cars & trucks, it reads data from car ECU, including mileage, fuel consumption, fuel level, engine temperature, DTC code, VIN & others. It can record driving behavior data & send to server for analysis. It is widely used in fleet management & insurance telematics.

Rp1,980,000

OBD GPS Tracker 4G
Model : HS-4000G

Introduction:
HS-4000G is a plug & play 2G + 3G + 4G LTE OBD gps tracker that can install in cars & trucks, it reads data from car ECU, including mileage, fuel consumption, fuel level, engine temperature, DTC code, VIN & others. It can record driving behavior data & send to server for analysis. It is widely used in fleet management & insurance telematics.

Features:
OBDII and CANBUS protocol, DC 12V and 24V;
2G GSM/GPRS quad-band, 3G UMTS quad-band;
4G LTE network (covering all 4G bands world-wide);
4G CAT M1/NB-IoT network (all countries);
Support WiFi Hotspot, up to 8 users;
Support A-GPS (make GPS locating much faster);
Plug and play, Small size, no installation cost;
Collect fuel consumption data, meter speed (RPM);
Very accurate mileage data (accuracy>99%);
Collect DTC (Diagnostic Trouble Code) for remote diagnostic;
Collect VIN, engine temperature;
Internal GSM and GPS antennas;
TCP and UDP protocol;
Update firmware over the air;
Illegal start-up, impact and rollover alarm;
Detect harsh acceleration, braking, turn and high revolution;
Driving behavior recording and analysis;
Store break points data in non-volatile memory;
Track on google map and other maps;
Android, iOS APP & telematics software free for ever;
Auto sleep mode to save automotive power;
Wide working temperature range: -30 to +80℃.

GPS Specifications
GPS Module : U-blox
Channel : 50 pararrel channels
Position Accuracy : ≤ 2.5m
Speed Accuracy : ≤0.1m/s
Sensitivity : Tracking: -162dBm
Acquisition Time
Cold Start: 29s
Warm Start: 29s
Hot Start: 1s

Communication
Quectel EC25 4G module
Including 2G, 3G quad-bands;
4G LTE network:
EC25-AU: B1/B2/B3/B4/B5/B7/B8/B28
EC25-A: B2/B4/B12
EC25-E: B1/B3/B5/B7/B8/B20

MCU
NXP ARM Cortex M3

Interface
Mini USB Port : 1
GPS Antenna : Internal
GSM Antenna : Internal
OBDII Connector : SAE J1962

Air Interface Protocol
Transmit Protocol : TCP, UDP, SMS

Vehicle Protocol
ISO 15765-4 (CAN)
ISO 14230-4 (Keyword Protocol 2000)
ISO 9141-2 (Asian, European, Chrysler vehicles)
SAE J1850 VPW (GM vehicles)
SAE J1850 PWM (Ford vehicles)
ISO 15765
ISO 11898 (raw CAN)
SAE J1939 OBD protocol

Non-legislated OBD protocols (can be added according to customer’s needs):
Single Wire CAN (SW-CAN) – GM proprietary network
Medium Speed CAN (MS-CAN) – Ford proprietary network

General Specifications
Sensor : Accelerator sensor and shock sensor
Case Material : ABS
Operation Voltage : DC 12 or 24V
Active current : 70mA
Operation Temperature : -30 to +80℃
Operating Humidity : 5% to 95%, non-condensing
Dimension : 624820mm
Weight : 60g

SKU: HS-4000G Category: Tag:
Weight 1000 kg

OBDII and CANBUS protocol, DC 12V and 24V;
2G GSM/GPRS quad-band, 3G UMTS quad-band;
4G LTE network (covering all 4G bands world-wide);
4G CAT M1/NB-IoT network (all countries);
Support WiFi Hotspot, up to 8 users;
Support A-GPS (make GPS locating much faster);
Plug and play, Small size, no installation cost;
Collect fuel consumption data, meter speed (RPM);
Very accurate mileage data (accuracy>99%);
Collect DTC (Diagnostic Trouble Code) for remote diagnostic;
Collect VIN, engine temperature;
Internal GSM and GPS antennas;
TCP and UDP protocol;
Update firmware over the air;
Illegal start-up, impact and rollover alarm;
Detect harsh acceleration, braking, turn and high revolution;
Driving behavior recording and analysis;
Store break points data in non-volatile memory;
Track on google map and other maps;
Android, iOS APP & telematics software free for ever;
Auto sleep mode to save automotive power;
Wide working temperature range: -30 to +80℃.

GPS Specifications
GPS Module : U-blox
Channel : 50 pararrel channels
Position Accuracy : ≤ 2.5m
Speed Accuracy : ≤0.1m/s
Sensitivity : Tracking: -162dBm
Acquisition Time
Cold Start: 29s
Warm Start: 29s
Hot Start: 1s

Communication
Quectel EC25 4G module
Including 2G, 3G quad-bands;
4G LTE network:
EC25-AU: B1/B2/B3/B4/B5/B7/B8/B28
EC25-A: B2/B4/B12
EC25-E: B1/B3/B5/B7/B8/B20

MCU
NXP ARM Cortex M3

Interface
Mini USB Port : 1
GPS Antenna : Internal
GSM Antenna : Internal
OBDII Connector : SAE J1962

Air Interface Protocol
Transmit Protocol : TCP, UDP, SMS

Vehicle Protocol
ISO 15765-4 (CAN)
ISO 14230-4 (Keyword Protocol 2000)
ISO 9141-2 (Asian, European, Chrysler vehicles)
SAE J1850 VPW (GM vehicles)
SAE J1850 PWM (Ford vehicles)
ISO 15765
ISO 11898 (raw CAN)
SAE J1939 OBD protocol

Non-legislated OBD protocols (can be added according to customer’s needs):
Single Wire CAN (SW-CAN) – GM proprietary network
Medium Speed CAN (MS-CAN) – Ford proprietary network

General Specifications
Sensor : Accelerator sensor and shock sensor
Case Material : ABS
Operation Voltage : DC 12 or 24V
Active current : 70mA
Operation Temperature : -30 to +80℃
Operating Humidity : 5% to 95%, non-condensing
Dimension : 62*48*20mm
Weight : 60g
