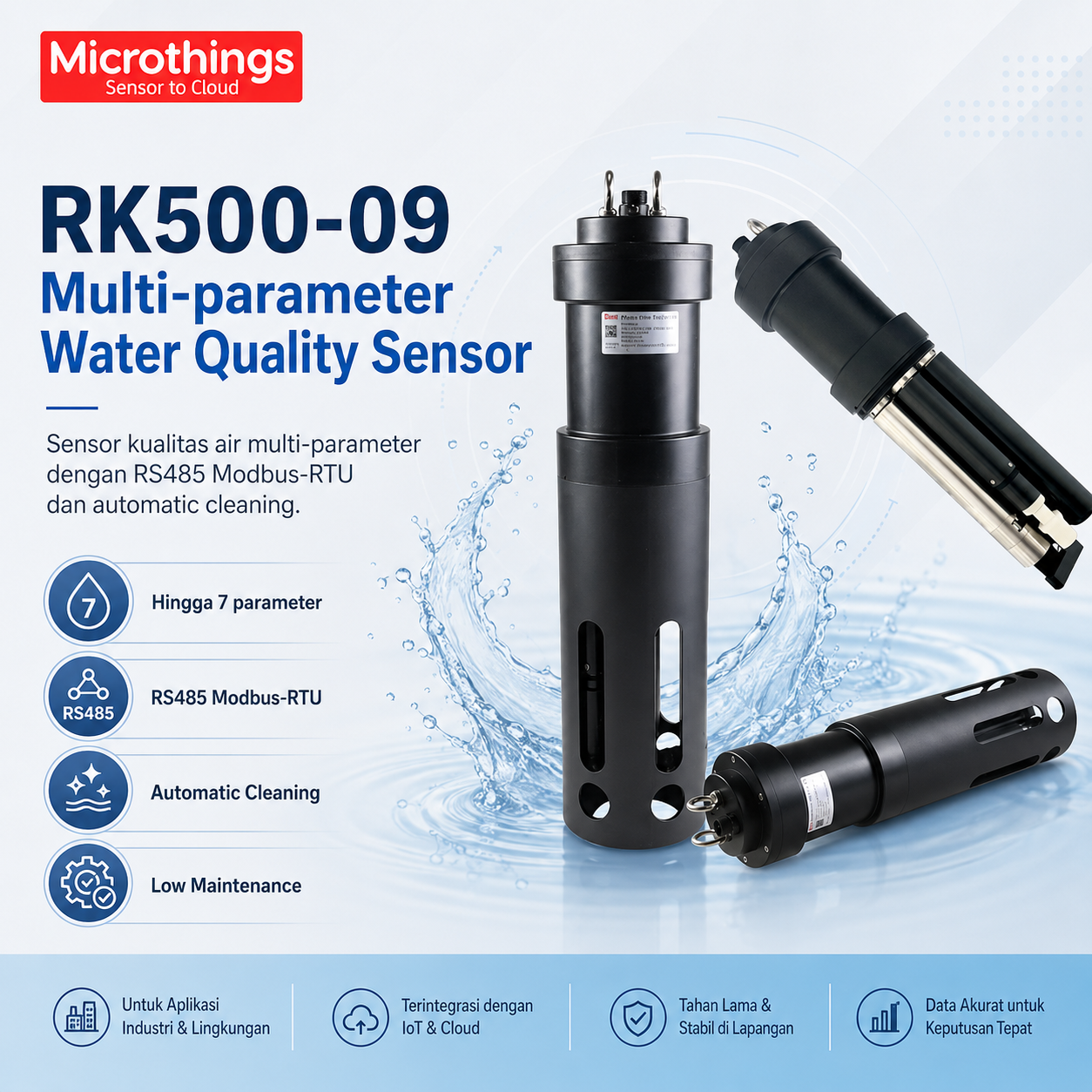

Multi parameter water quality sensor RK500-09

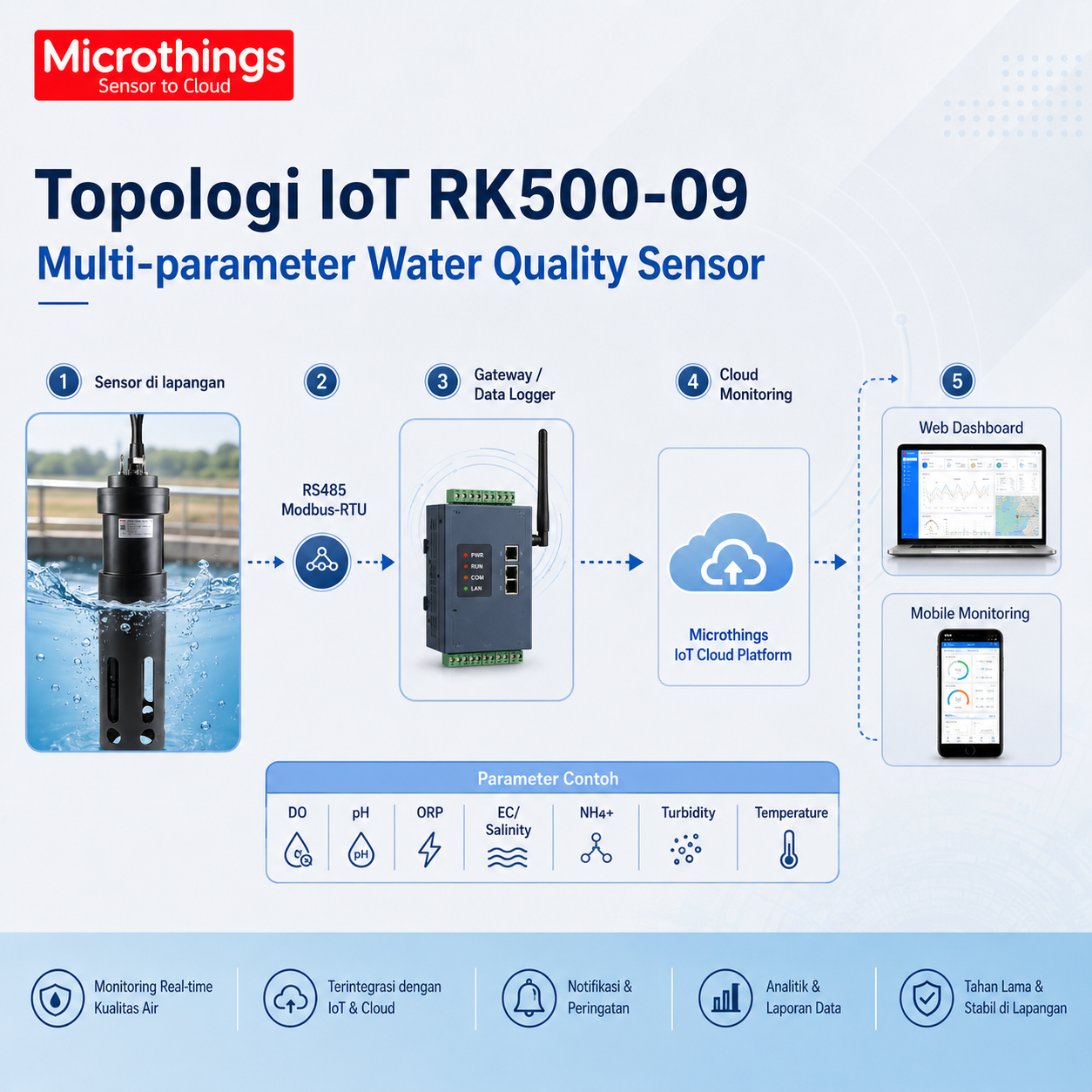

RK500-09 multi-parameter water quality sensor mengadopsi desain terintegrasi dan dapat mengukur hingga 8 parameter secara bersamaan. Anda dapat memilih DO, COD, pH, ORP, EC/salinity, NH4+, turbidity, dll. Dengan menggunakan output RS-485, protokol komunikasi Modbus-RTU, data dapat langsung dikirimkan ke platform akuisisi.
Sensor kualitas air multi-parameter dilengkapi dengan perangkat pembersihan otomatis, interval waktu pembersihan otomatis dan jumlah siklus pembersihan otomatis dapat diatur untuk menyesuaikan dengan kualitas air dengan tingkat kebersihan yang berbeda. Perangkat pembersih otomatis dapat secara efektif membersihkan permukaan sensor, mencegah adhesi mikroorganisme, dan sangat mengurangi biaya perawatan. Setiap sensor dilengkapi dengan konektor tahan air colokan cepat, yang mudah dibongkar dan dipasang.

Rp86,000,000 Rp89,000,000

RK500-09 multi-parameter water quality sensor mengadopsi desain terintegrasi dan dapat mengukur hingga 8 parameter secara bersamaan. Anda dapat memilih DO, COD, pH, ORP, EC/salinity, NH4+, turbidity, dll. Dengan menggunakan output RS-485, protokol komunikasi Modbus-RTU, data dapat langsung dikirimkan ke platform akuisisi.
Sensor kualitas air multi-parameter dilengkapi dengan perangkat pembersihan otomatis, interval waktu pembersihan otomatis dan jumlah siklus pembersihan otomatis dapat diatur untuk menyesuaikan dengan kualitas air dengan tingkat kebersihan yang berbeda. Perangkat pembersih otomatis dapat secara efektif membersihkan permukaan sensor, mencegah adhesi mikroorganisme, dan sangat mengurangi biaya perawatan. Setiap sensor dilengkapi dengan konektor tahan air colokan cepat, yang mudah dibongkar dan dipasang.

Specifications

Dissolved oxygen sensor
Measuring range 0~20mg/L
Accuracy ±0.4mg/L
Resolution 0.01mg/L
Turbidity sensor
Measuring range 0~100NTU 0~1000NTU
Accuracy ±3% or ±2NTU ±5% or ±3NTU
Resolution 0.1NTU
EC / salinity sensor
Measuring range 0~5000uS/cm 0~200mS/cm 0~70PSU
Resolution 1uS/cm 0.1mS/cm 0.1PSU
Accuracy ±1.5% F.S.
COD sensor
Measuring range COD Turbidity
0~200mg/L equiv. KHP 0~100NTU
0~500mg/L equiv. KHP 0~200NTU
Accuracy (COD) ±5%F.S.
Resolution (COD) 0.1mg/L
Accuracy (Turbidity) ±5%F.S.
Resolution (Turbidity) 0.1NTU
pH sensor
Measuring range 0~14pH
Accuracy ±0.1pH
Resolution 0.01pH
ORP sensor
Measuring range -1500mV~+1500mV
Accuracy ±6mV
Resolution 1mV
HN4+ sensor
Measuring range 0~100mg/L 0~1000mg/L
Accuracy ±10% or ±2mg/L
Resolution 0.1mg/L
Temperature
Measuring range 0~50℃
Accuracy ±0.5℃
Resolution 0.1℃
Other Information of Multi-parameter sensor
Output RS-485(Modbus/RTU)
Cleaning method Automatic cleaning
Power consumption 5W@12V
power supply 12VDC±5%
Cable length 5m(default), other lengths can be customized
Temperature
Measuring range 0~50℃
Accuracy ±0.5℃
Resolution 0.1℃
Other Information of Multi-parameter sensor
Output RS-485(Modbus/RTU)
Cleaning method Automatic cleaning
Power consumption 5W@12V
power supply 12VDC±5%
Cable length 5m(default), other lengths can be customized
Weight 4 kg

Specifications

Dissolved oxygen sensor
Measuring range 0~20mg/L
Accuracy ±0.4mg/L
Resolution 0.01mg/L

Turbidity sensor
Measuring range 0~100NTU 0~1000NTU
Accuracy ±3% or ±2NTU ±5% or ±3NTU
Resolution 0.1NTU

EC / salinity sensor
Measuring range 0~5000uS/cm 0~200mS/cm 0~70PSU
Resolution 1uS/cm 0.1mS/cm 0.1PSU
Accuracy ±1.5% F.S.

COD sensor
Measuring range COD Turbidity
0~200mg/L equiv. KHP 0~100NTU
0~500mg/L equiv. KHP 0~200NTU
Accuracy (COD) ±5%F.S.
Resolution (COD) 0.1mg/L
Accuracy (Turbidity) ±5%F.S.
Resolution (Turbidity) 0.1NTU

pH sensor
Measuring range 0~14pH
Accuracy ±0.1pH
Resolution 0.01pH

ORP sensor
Measuring range -1500mV~+1500mV
Accuracy ±6mV
Resolution 1mV

HN4+ sensor
Measuring range 0~100mg/L 0~1000mg/L
Accuracy ±10% or ±2mg/L
Resolution 0.1mg/L

Temperature
Measuring range 0~50℃
Accuracy ±0.5℃
Resolution 0.1℃

Other Information of Multi-parameter sensor
Output RS-485(Modbus/RTU)
Cleaning method Automatic cleaning
Power consumption 5W@12V
power supply 12VDC±5%
Cable length 5m(default), other lengths can be customized

Temperature
Measuring range 0~50℃
Accuracy ±0.5℃
Resolution 0.1℃

Other Information of Multi-parameter sensor
Output RS-485(Modbus/RTU)
Cleaning method Automatic cleaning
Power consumption 5W@12V
power supply 12VDC±5%
Cable length 5m(default), other lengths can be customized
