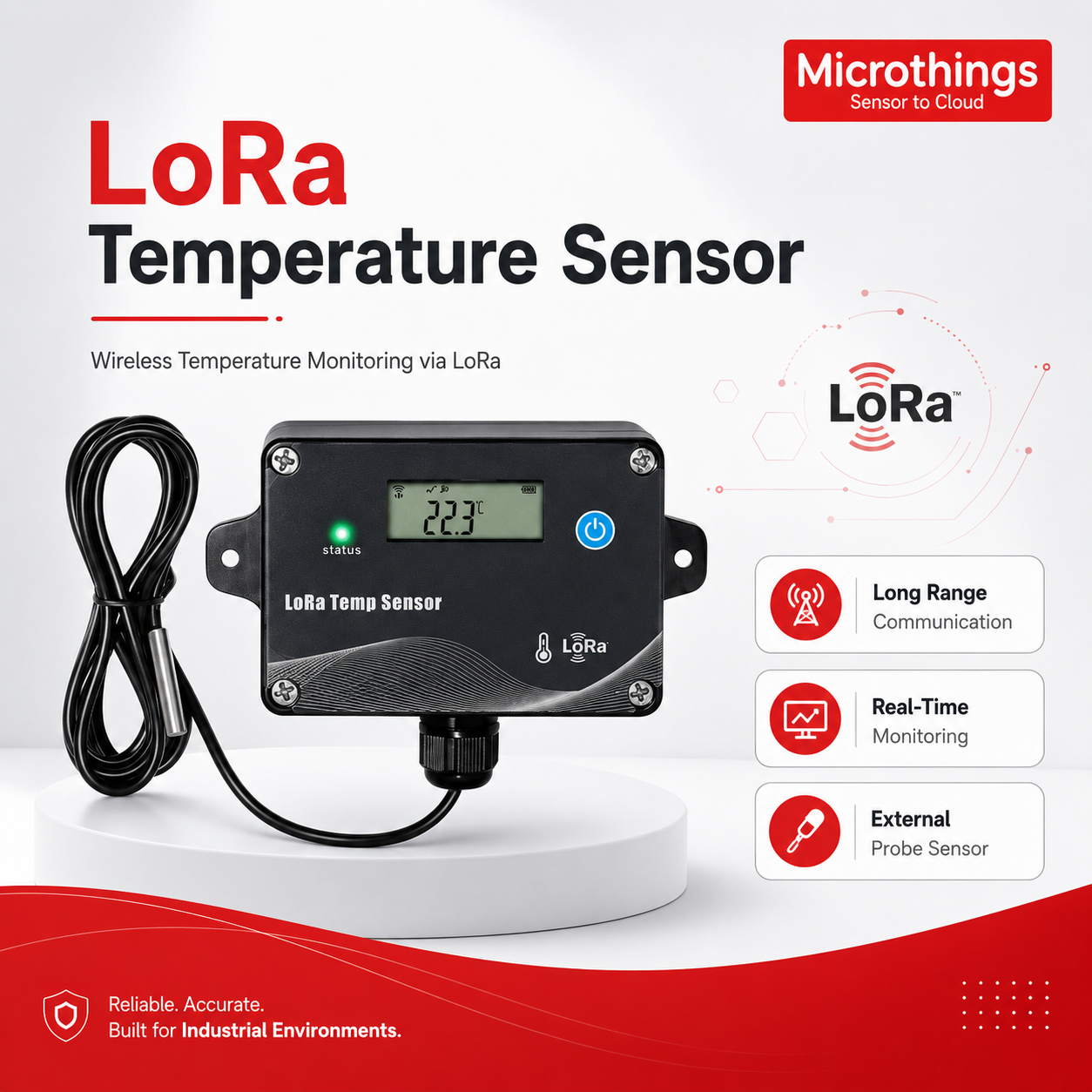

LoRa Temperature Sensor


TZ-Tag06  temperature transmitter is designed with the ambient temperature detecting function. With sensitive temperature response time and a large range of measured temperature value,with 433 embedded RF communication module, and DS18B20 temperature sensor,temperature value will be sent out through the communication module 433, if the receiver receives the signal, it can parse out the ambient temperature. 433 communication module has a strong transmitting power, long transmission distance,strong diffracting and penetrating ability, and low transmission attenuation and so on characteristics. Unique ID was fixed on each Tag06 by configuration, which used to uniquely identify an object with this transmitter. For temperature monitoring on cable connectors, switchgear busbar, contacts, busbar splice,and so on.

Rp900,000

LoRa Temperature Sensor
Model :TZ-Tag06/LoRa Temperature Sensor

Introduction :
TZ-Tag06  temperature transmitter is designed with the ambient temperature detecting function. With sensitive temperature response time and a large range of measured temperature value,with 433 embedded RF communication module, and DS18B20 temperature sensor,temperature value will be sent out through the communication module 433, if the receiver receives the signal, it can parse out the ambient temperature. 433 communication module has a strong transmitting power, long transmission distance,strong diffracting and penetrating ability, and low transmission attenuation and so on characteristics. Unique ID was fixed on each Tag06 by configuration, which used to uniquely identify an object with this transmitter. For temperature monitoring on cable connectors, switchgear busbar, contacts, busbar splice,and so on.

Features:
Large battery work for up to 3 years
High precise temperature and humidity sensor
Temperature and humidity alarm notification
Low battery level notification
Communication distance between receiver and sensor maximum up to 300 meters

Specifications Tag06 Sensor:
Dimension :63mm*38mm*31mm
N.W :80g
Inner lithium battery Built-in :3.6V/1200mAh(Non Rechargeable)
Working life : 3years(in 60s interval)
Measure range of temp and humidity sensor Temp: -40℃ ~ +125℃,Humidity 0%RH ~ 100%RH
Accuracy of temp and humidity sensor Temp: ±0.3℃/±0.5℃,Humidity ±3%RH
Exterior sensing sensor: Collect data accurately
Maximum range in open area :300 meters
Operating temperature conditions :-30 °C to +60°C
Operating humidity conditions: Up to 85% (non-condensing)
RF frequency :433MHz
Modulation :GFSK
Transmit power :20dbm(Adjustable)
Transmit interval :1s-60mins (User definable)
Low voltage alarm :Yes (User definable)
Temperature alarm :Yes (User definable)
Stand-by currents :<1uA
Waterproof level :IP66

Applications:
1. Warehouse, supermarket management
2. Building environment control
3. Medical laboratory environment control

SKU: TZ-Tag06 Category: Tag:
Weight 500 kg

Specifications Tag06 Sensor:
Dimension :63mm*38mm*31mm
N.W :80g
Inner lithium battery Built-in :3.6V/1200mAh(Non Rechargeable)
Working life : 3years(in 60s interval)
Measure range of temp and humidity sensor Temp: -40℃ ~ +125℃,Humidity 0%RH ~ 100%RH
Accuracy of temp and humidity sensor Temp: ±0.3℃/±0.5℃,Humidity ±3%RH
Exterior sensing sensor: Collect data accurately
Maximum range in open area :300 meters
Operating temperature conditions :-30 °C to +60°C
Operating humidity conditions: Up to 85% (non-condensing)
RF frequency :433MHz
Modulation :GFSK
Transmit power :20dbm(Adjustable)
Transmit interval :1s-60mins (User definable)
Low voltage alarm :Yes (User definable)
Temperature alarm :Yes (User definable)
Stand-by currents :<1uA
Waterproof level :IP66
