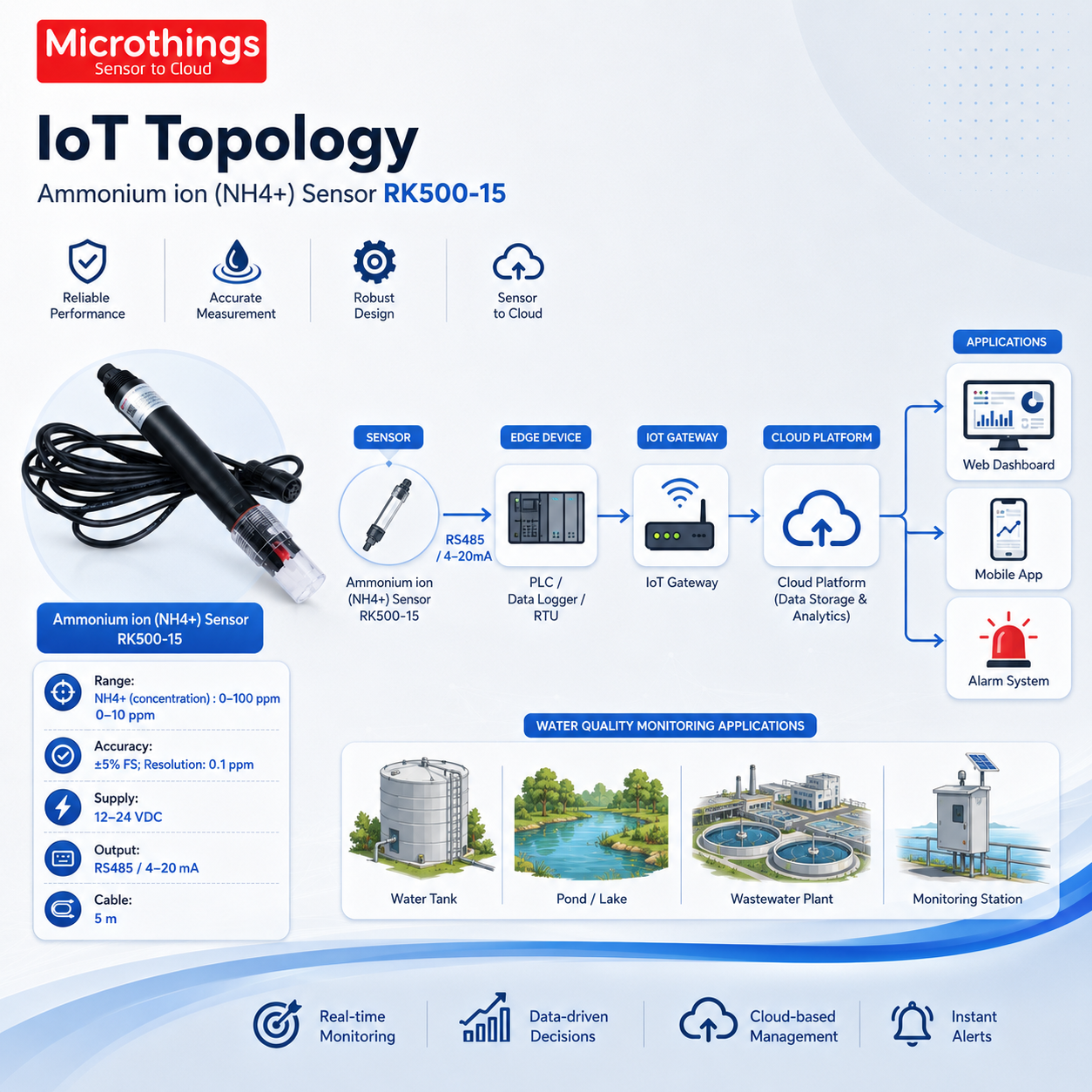

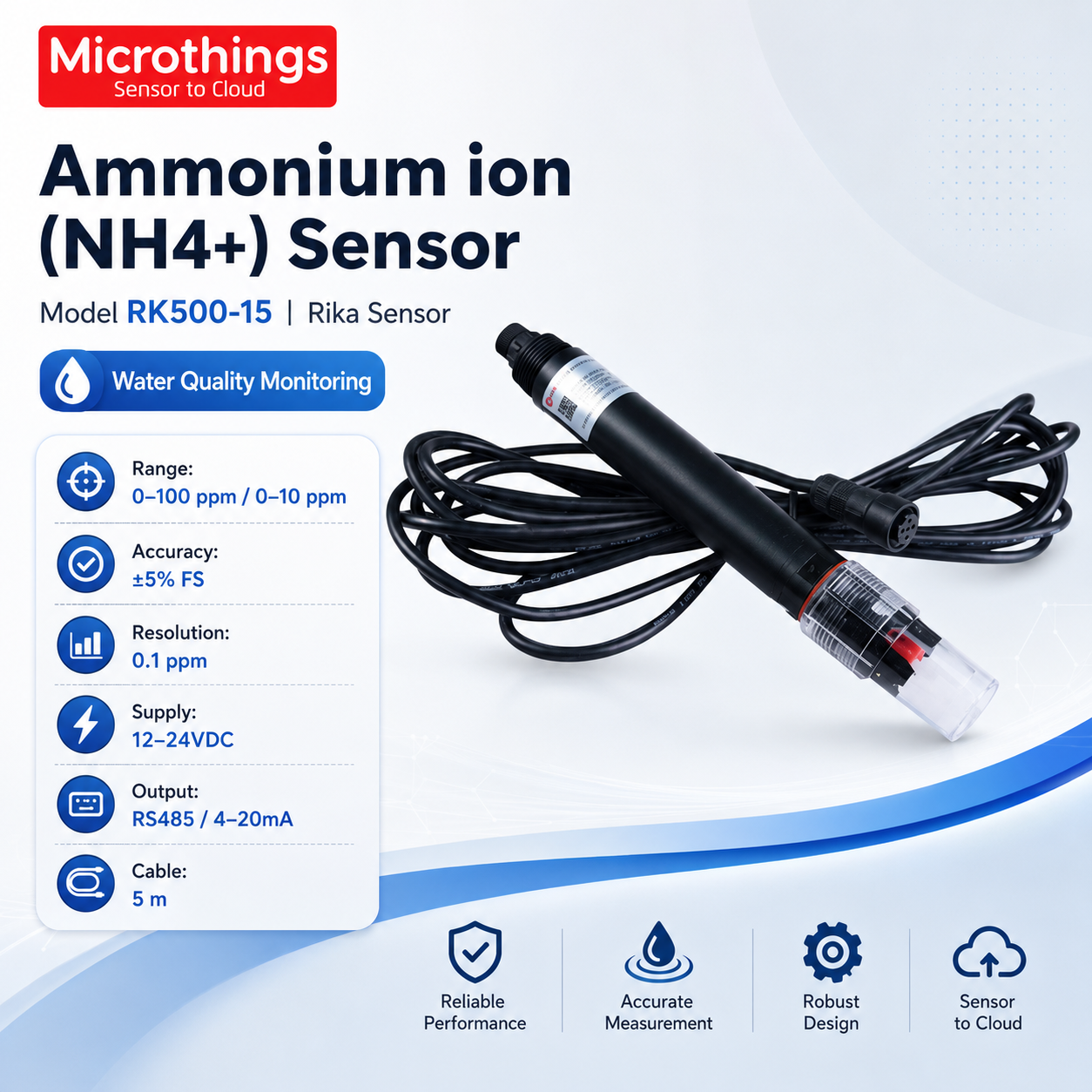

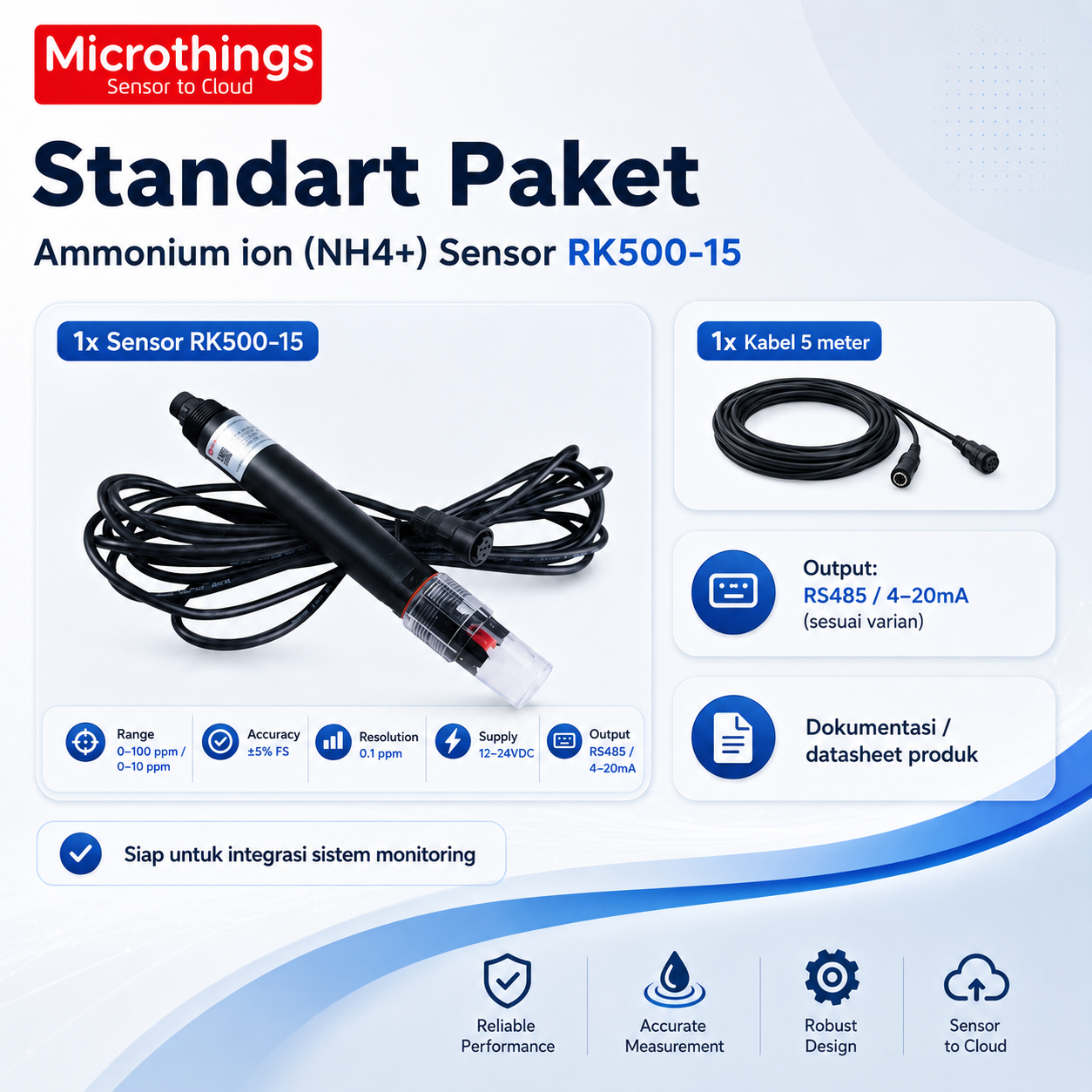

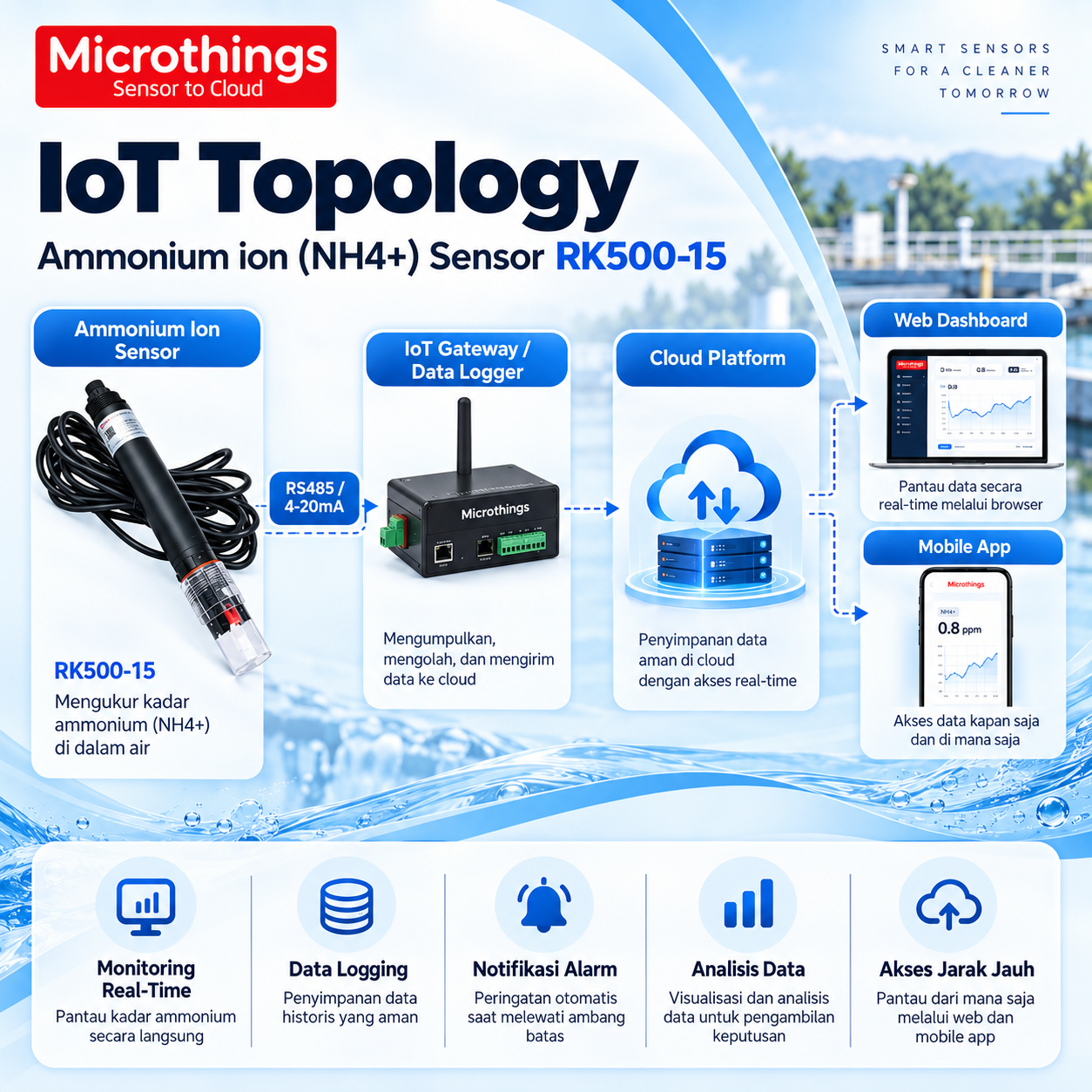

Ammonium ion(NH4+) Sensor RK500-15

Availability:

100 in stock


RK500-15 Ammonium Ion(NH4+) Sensor The RK500-15 ammonia nitrogen sensor Adalah elektroda selektif ion anamonium berdasarkan film PVC. Digunakan untuk menguji kandungan amonium dalam air dengan kompensasi suhu untuk memastikan pengujian yang cepat, sederhana, akurat dan ekonomis. Probe ion amonium yang dipatenkan, larutan referensi internal mengalir sangat lambat dari jembatan garam berpori mikro pada tekanan setidaknya 100 kPa(1Bar), dan aliran ke depan berlanjut selama lebih dari 20 bulan. Sistem referensi tersebut sangat stabil dan memiliki umur elektroda yang lebih lama dibandingkan elektroda industri konvensional.

Rp22,900,000 Rp23,400,000

100 in stock

Compare

Ammonium Ion(NH4+) Sensor RK500-15 adalah elektroda selektif ion anamonium berdasarkan film PVC. Digunakan untuk menguji kandungan amonium dalam air dengan kompensasi suhu untuk memastikan pengujian yang cepat, sederhana, akurat dan ekonomis. Probe ion amonium yang dipatenkan, larutan referensi internal mengalir sangat lambat dari jembatan garam berpori mikro pada tekanan setidaknya 100 kPa(1Bar), dan aliran ke depan berlanjut selama lebih dari 20 bulan. Sistem referensi tersebut sangat stabil dan memiliki umur elektroda yang lebih lama dibandingkan elektroda industri konvensional.

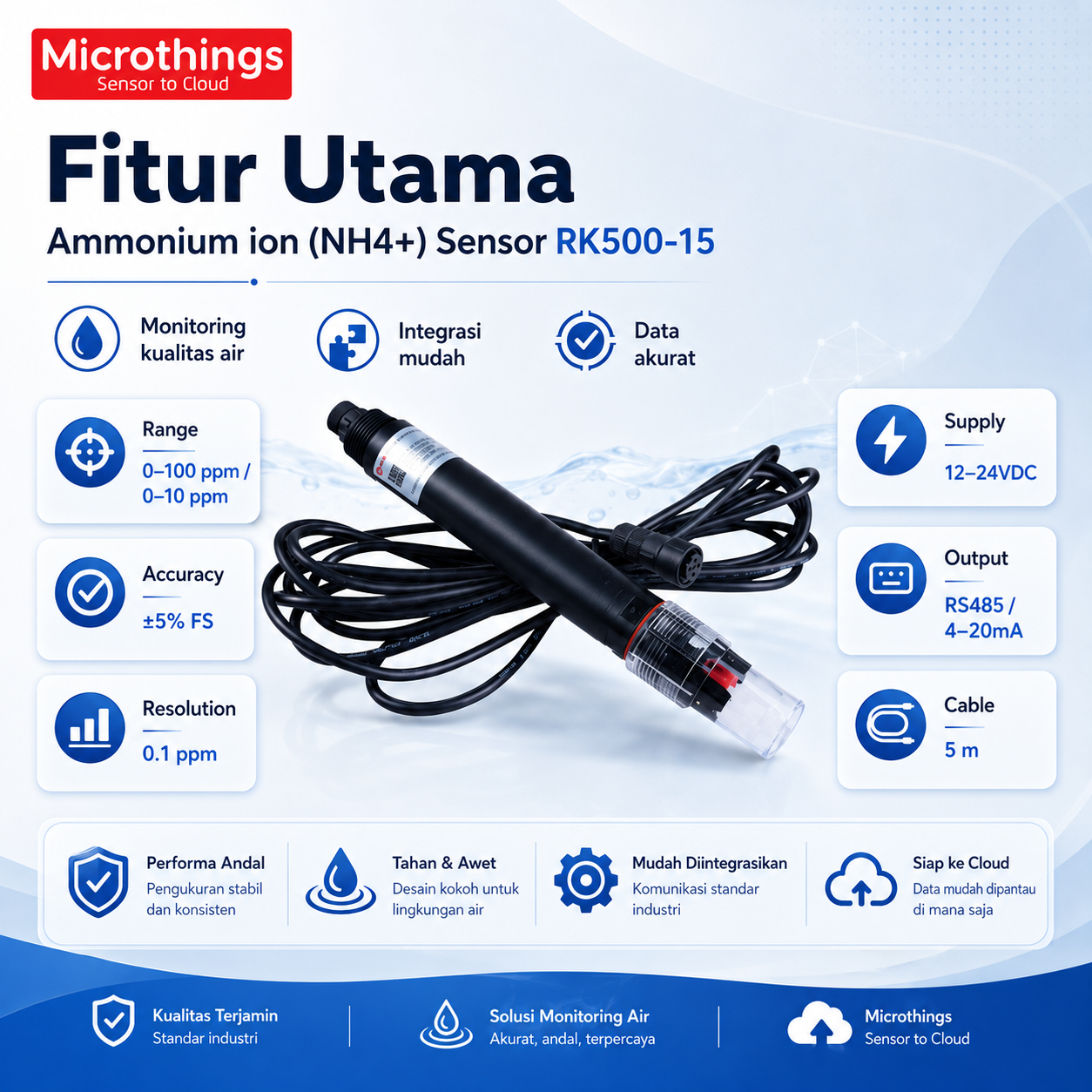

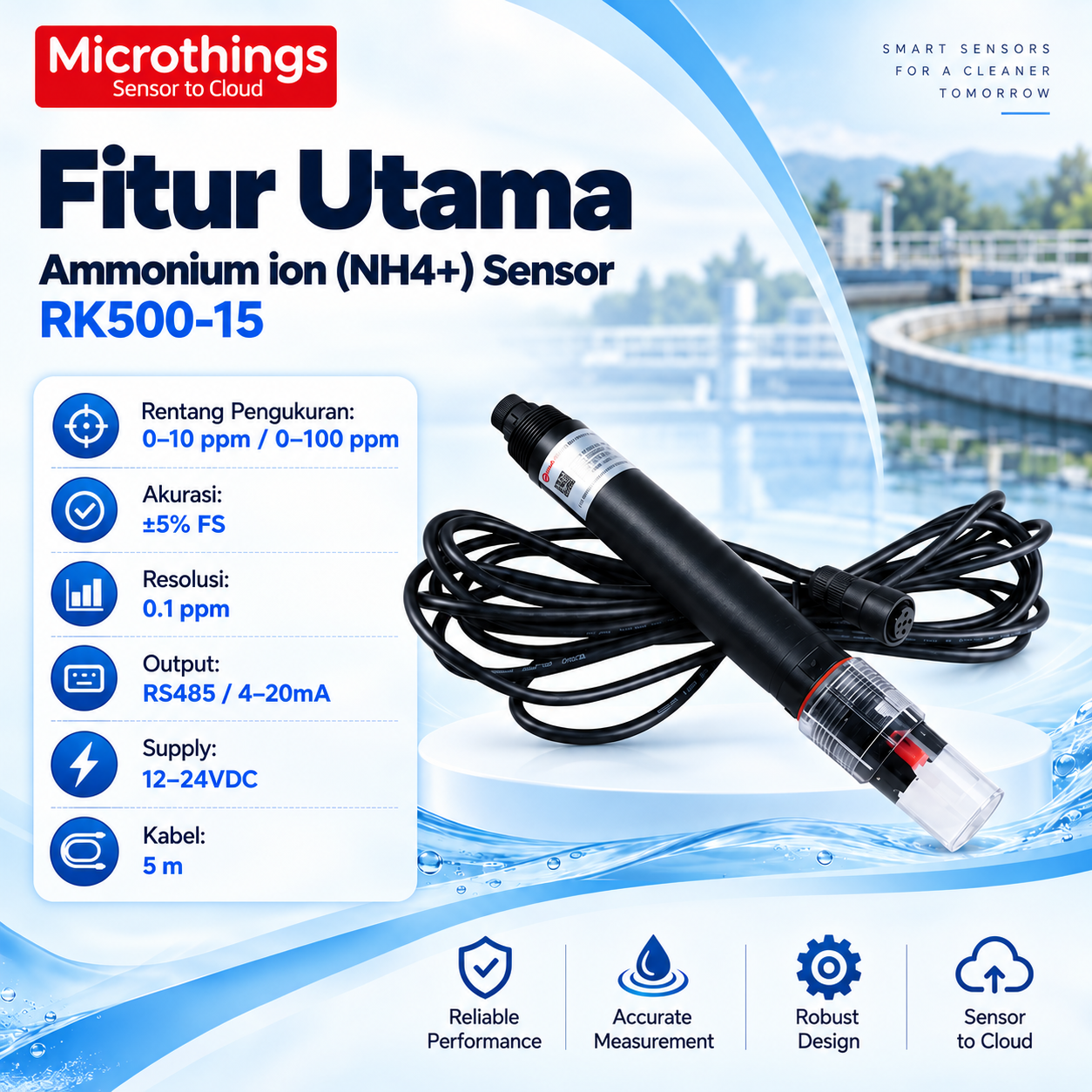

Features :
High performance sensitive film
Automatic temperature compensation
PVC and POM housing
Simple operation and high reliability
No external module, integrid design
NH4+ and temperoture measurement at the same time
Immersion in water or pipe installation

ItemTechnical Specification
NH4+(concentration)(4-10PH)Temperature
Range0-100mg/L0-40℃
Supply12-24VDC
Accuracy±10%FS±0.3℃
Resolution0.1mg/L0.1℃
OutputAutomatic temperature compensation
Temperature compensationRS485
Pressure resistance<0.1MPa
Power consumption<0.4W
Operating temperature0-+40℃
Probe materialPVC+POM
Storage10-60℃@20%-90%RH
Cable length5m default,other length optional
Ingress protectionIP68
Weight1 kg

Technical Specification
NH4+(concentration)(4-10PH) Temperature
Range 0-100mg/L 0-40℃
Supply 12-24VDC
Accuracy ±10%FS ±0.3℃
Resolution 0.1mg/L 0.1℃
Output Automatic temperature compensation
Temperature compensation RS485
Pressure resistance <0.1MPa
Power consumption <0.4W
Operating temperature 0-+40℃
Probe material PVC+POM
Storage 10-60℃@20%-90%RH
Cable length 5m default,other length optional
Ingress protection IP68
