Air Quality Sensor DT320


Air Quality Sensor DT320 adalah sensor kualitas udara dalam ruangan canggih yang dapat dikonfigurasi yang ditujukan untuk otomatisasi bangunan. Pengguna dapat memantau tingkat metanal, amonia, etanol, rokok dari jarak jauh melalui modul nirkabel NB-IoT bawaan. Outputnya adalah 4 level PPM. Berlaku luas untuk rumah sakit, sekolah, kampus, asrama, kantor, pabrik, pusat perbelanjaan, hotel, restoran, kafe, stadion, ruang publik, dll.

Rp2,680,000 Rp2,840,000

Air Quality Sensor DT320 adalah sensor kualitas udara dalam ruangan canggih yang dapat dikonfigurasi yang ditujukan untuk otomatisasi bangunan. Pengguna dapat memantau tingkat metanal, amonia, etanol, rokok dari jarak jauh melalui modul nirkabel NB-IoT bawaan. Outputnya adalah 4 level PPM. Berlaku luas untuk rumah sakit, sekolah, kampus, asrama, kantor, pabrik, pusat perbelanjaan, hotel, restoran, kafe, stadion, ruang publik, dll.

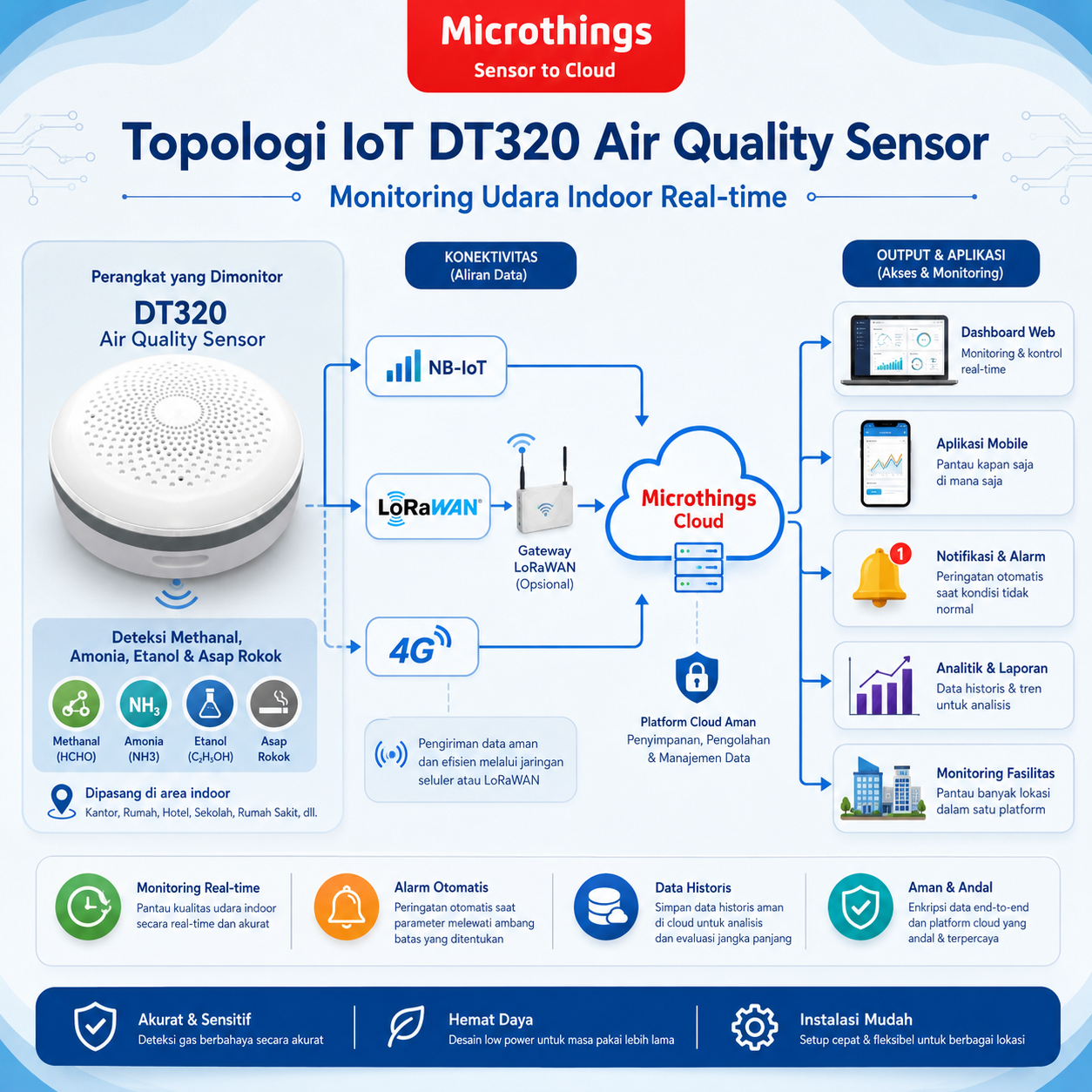

Network Diagram
Sensor → Base Station/Gateway → Cloud Server → Application

Spesifcation :
Dimension : 808038mm
Measurement Elements : Methanal, Ammonia, Ethanol & Cigarette
Output Level : Level 0: 0-1PPM; Level 1: 1-2PPM; Level 2: 2-5PPM; Level 3: 5-9PPM
Power Consumption : Upload ≤600mA; Detection≤100mA
Internal Battery : 1000mAh@ 3.7V Lithium Battery, Life time 10 days.
Recharge Interface : Micro-USB 500mA@5V
Recharge LED : Red: not full battery; Blue : Full battery.
Air Quality LED : Level 0: Green flash, Blue off; Level 1: Green on, Blue off; Level 2: Green off, Blue flash; Level 3: Green off, Blue on;
Wireless : NB-IoT/LoRaWAN/Sigfox
Frequency : NB-IoT: B3/B5/B8/B20/B28; LoRaWAN: CN470/EU868/AU915 /US915/AS923; Sigfox: RCZ1/RCZ2/RCZ3/RCZ4
Working Environment : -40 ~ 85℃, 5~95%RH

SKU: DT320 Category: Tag:
Weight 1 kg

Spesifcation :
Dimension : 80*80*38mm
Measurement Elements : Methanal, Ammonia, Ethanol & Cigarette
Output Level : Level 0: 0-1PPM; Level 1: 1-2PPM; Level 2: 2-5PPM; Level 3: 5-9PPM
Power Consumption : Upload ≤600mA; Detection≤100mA
Internal Battery : 1000mAh@ 3.7V Lithium Battery, Life time 10 days.
Recharge Interface : Micro-USB 500mA@5V
Recharge LED : Red: not full battery; Blue : Full battery.
Air Quality LED : Level 0: Green flash, Blue off; Level 1: Green on, Blue off; Level 2: Green off, Blue flash; Level 3: Green off, Blue on;
Wireless : NB-IoT/LoRaWAN/Sigfox
Frequency : NB-IoT: B3/B5/B8/B20/B28; LoRaWAN: CN470/EU868/AU915 /US915/AS923; Sigfox: RCZ1/RCZ2/RCZ3/RCZ4
Working Environment : -40 ~ 85℃, 5~95%RH
