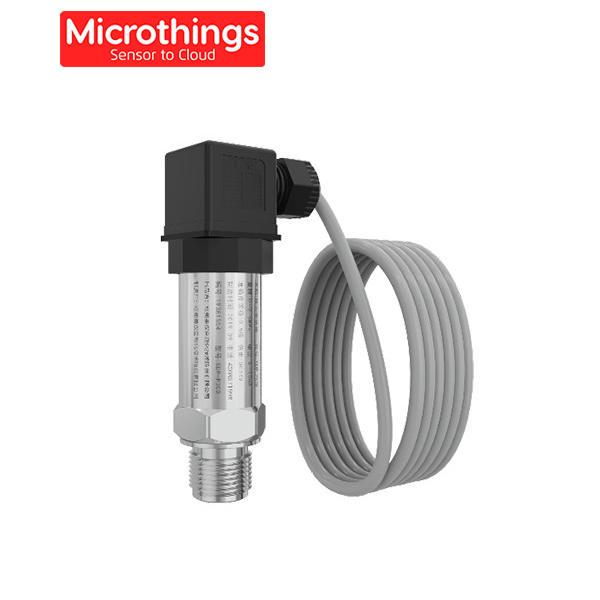

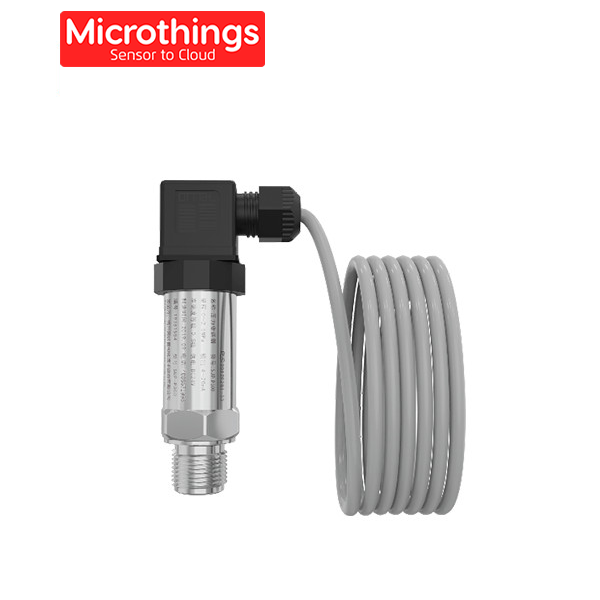

The pressure sensitive core of SUP-P300 series pressure transmitter adopts high-performance silicon piezoresistive pressure oil-filled core.
The internal special integrated circuit converts the sensor millivolt signal into standard voltage, current or frequency signal, which can be directly connected with The computer circuit interface card, control instrument, intelligent instrument and PLC, etc. are easily connected.
Long-distance transmission can adopt current output mode. It has a small size, light weight, all-stainless steel sealed structure, and can work in corrosive environments.
The product is easy and simple to install, and has extremely high seismic and impact resistance.
Features
-Small structure and easy installation.
-Advanced diaphragm / oil-filled isolation technology.
-High stability and high reliability.
-Anti- vibration and anti-radio frequency interference.
-316L stainless steel isolation diaphragm structure.
-High- precision, all-stainless steel structure.
-Micro amplifier, voltage, current, RS485 signal output.
-Strong anti-interference and good long-term stability.
-Diversified forms and structures, easy to install and use.
-Wide range, can measure absolute pressure, gauge pressure and sealing reference pressure.
– Vibration and shock resistance.
Specifications
Model: SUP-P300
Power supply: 12~36VDC
Output signal: 4~20mA, 1~5V, 0~20mA, 0~5V, etc.
Pressure range: -0.1~100MPa
Temperature compensation: -10~70°C
Storage temperature: -40~125°C
Medium temperature: -20~85°C
Ingress protection: IP65
Pressure type: Gauge pressure, absulute pressure, sealed pressure
Accuracy: 0.1%, 0.3%, 0.5% optional
Zero temperature drift: ±0.03%F.S/°C
Sensitivity temperature drift: ±0.03%F.S/°C
Overload pressure: 200%F.S
Long-term stability: ±0.2%F.S/y
Frequency: 5kHz~650kHz
Electrical connections: Direct lead/ aerial linker/ Din connector (customizable)
Measuring medium: Oil, water, gas etc.
Process connections: Threaded/ sanitary/ flange
