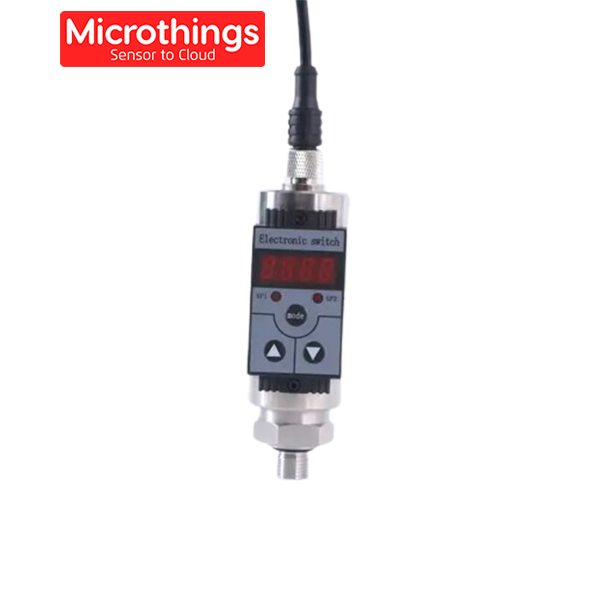

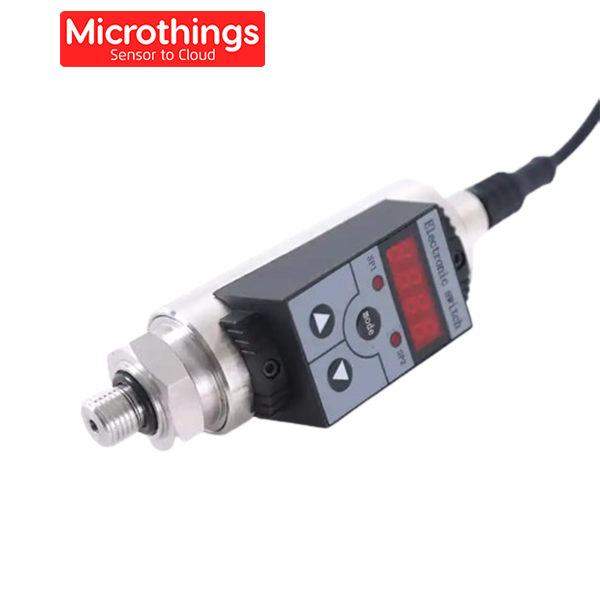

Electronic Pressure Switch PS300


Electronic Pressure Switch PS300 adalah sakelar pengukuran tekanan dengan tampilan LED. Diafragma berisi minyak silikon berbasis isolasi digunakan sebagai komponen penginderaan. Ini memiliki keunggulan presisi tinggi, ukuran kecil, pengoperasian mudah dan pemasangan sederhana. Oleh karena itu, banyak digunakan dalam kontrol tekanan dan sistem kontrol proses otomatis dalam sistem kimia, mekanik dan listrik.

Rp4,800,000

Electronic Pressure Switch PS300 adalah sakelar pengukuran tekanan dengan tampilan LED. Diafragma berisi minyak silikon berbasis isolasi digunakan sebagai komponen penginderaan. Ini memiliki keunggulan presisi tinggi, ukuran kecil, pengoperasian mudah dan pemasangan sederhana. Oleh karena itu, banyak digunakan dalam kontrol tekanan dan sistem kontrol proses otomatis dalam sistem kimia, mekanik dan listrik.

Spesifikasi Teknis :
Model:PS300S/ PS300M/PS300A1/PS300R
Pressure Range:-1 Bar-1 Bar; 0-0.1 Bar…..1000 Bar / 0-2 Psi…15000 Psi Optional
Pressure Type:Gauge pressure; Absolute pressure; Sealed gauge pressure optional.
Safe Overload:150% F.S.
Burst Pressure:300% F.S.
Accuracy:≤ ±0.5%F.S Including non-lin., rep. and hys. Optional
Display Units Accuracy:≤ ±0.1%F.S
Display Units Span:-1999~9999
Total Error Band:0…50 °C max. ±0.5 %FS -10…70 °C max. ±1.0 %FS
Long Stability:Standard: 0.1%F.S±0.05%
Working/Storage Temp:-20℃~80℃
Tempe Compensation:-10℃~60℃(standard)
Medium compatible:Compatible with 316 Stainless Steel or 1Cr18Ni9Ti stainless steel
Output:Two switches output;One switch with 4~20mA or RS485 as output signal;Two switches with 4~20mA or RS485 as output signaloptional
Power Supply:12~32V DC
Switch type:PNP, NPN optional
Load Resistance:<24Vdc 1.2A
Max powerconsumption:<1w
Zero Temp. Drift:0.03%FS/℃(≤100kPa), 0.02%FS/℃(>100kPa)
Body materials:304 stainless steel; 1Cr18Ni9Ti stainless steel optional
Material of diaphragm:316L Stainless steel
Filling oil:Silicon oil; Fluorocarbon oil (Oxygen Services)
Electronic connection:Plug: M12 (4-poles) Type IP65; M12*1-5P; DIN43650 optional
Mechanical vibration:±20g
Pressure connect port:G1/4″male, G1/2″male, 1/8″NPT male, 1/4″NPT male, 1/2″NPT male and female optional. (by customized)
Dimension:See below drawing
Water Proof:IP65
Response time:≤5ms
Endurance:≥1 million cycles, 0…100 %FS at 25℃

Keuntungan
Ini menggunakan diafragma berisi minyak silikon isolasi sebagai komponen penginderaan dengan akurasi tinggi.
2 saluran keluaran sakelar, kapasitas beban 1,2 A.
Antarmuka tekanan dapat berputar 330 °, yang nyaman digunakan.
Dilengkapi dengan led aksi simpul, nyaman untuk observasi.

Aplikasi:
Pengontrol tekanan hidrolik
Kontrol otomasi industri
Kontrol Level Cairan Tangki
Industri petrokimia
Pemeliharaan air
Sistem deteksi otomatis

SKU: PS300 Category:
Weight 2 kg

Spesifikasi Teknis :
Model:PS300S/ PS300M/PS300A1/PS300R
Pressure Range:-1 Bar-1 Bar; 0-0.1 Bar…..1000 Bar / 0-2 Psi…15000 Psi Optional
Pressure Type:Gauge pressure; Absolute pressure; Sealed gauge pressure optional.
Safe Overload:150% F.S.
Burst Pressure:300% F.S.
Accuracy:≤ ±0.5%F.S Including non-lin., rep. and hys. Optional
Display Units Accuracy:≤ ±0.1%F.S
Display Units Span:-1999~9999
Total Error Band:0…50 °C max. ±0.5 %FS -10…70 °C max. ±1.0 %FS
Long Stability:Standard: 0.1%F.S±0.05%
Working/Storage Temp:-20℃~80℃
Tempe Compensation:-10℃~60℃(standard)
Medium compatible:Compatible with 316 Stainless Steel or 1Cr18Ni9Ti stainless steel
Output:Two switches output;One switch with 4~20mA or RS485 as output signal;Two switches with 4~20mA or RS485 as output signaloptional
Power Supply:12~32V DC
Switch type:PNP, NPN optional
Load Resistance:<24Vdc 1.2A
Max powerconsumption:<1w
Zero Temp. Drift:0.03%FS/℃(≤100kPa), 0.02%FS/℃(>100kPa)
Body materials:304 stainless steel; 1Cr18Ni9Ti stainless steel optional
Material of diaphragm:316L Stainless steel
Filling oil:Silicon oil; Fluorocarbon oil (Oxygen Services)
Electronic connection:Plug: M12 (4-poles) Type IP65; M12*1-5P; DIN43650 optional
Mechanical vibration:±20g
Pressure connect port:G1/4″male, G1/2″male, 1/8″NPT male, 1/4″NPT male, 1/2″NPT male and female optional. (by customized)
Dimension:See below drawing
Water Proof:IP65
Response time:≤5ms
Endurance:≥1 million cycles, 0…100 %FS at 25℃
