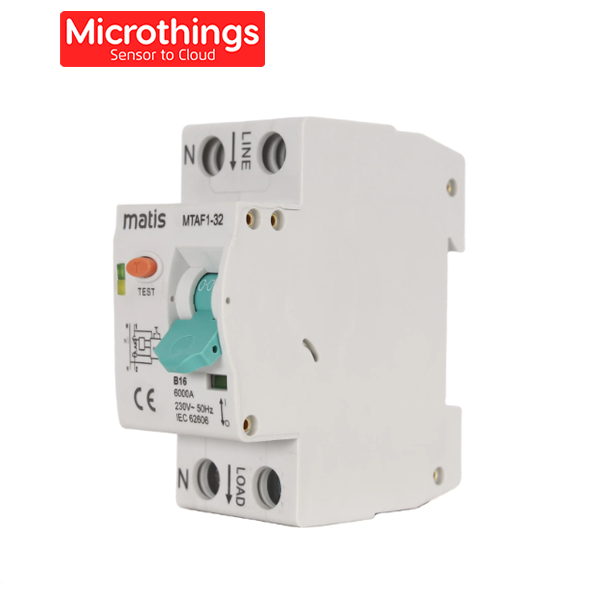

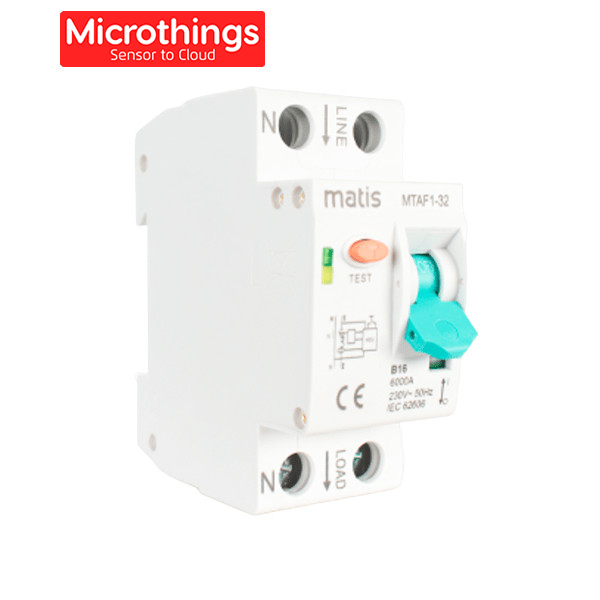

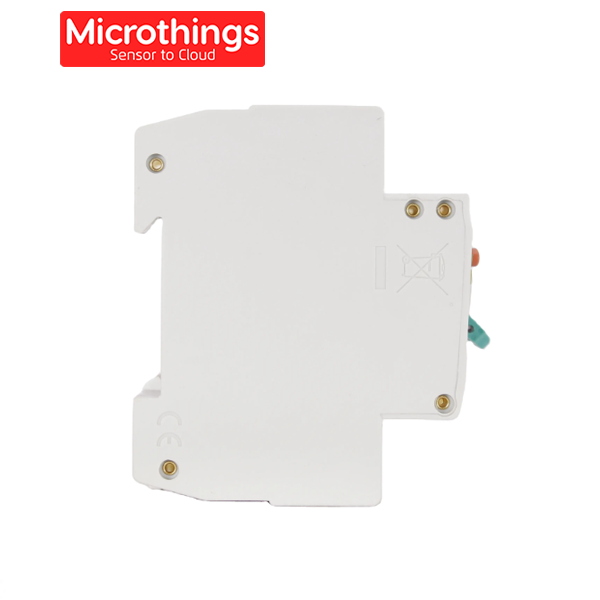

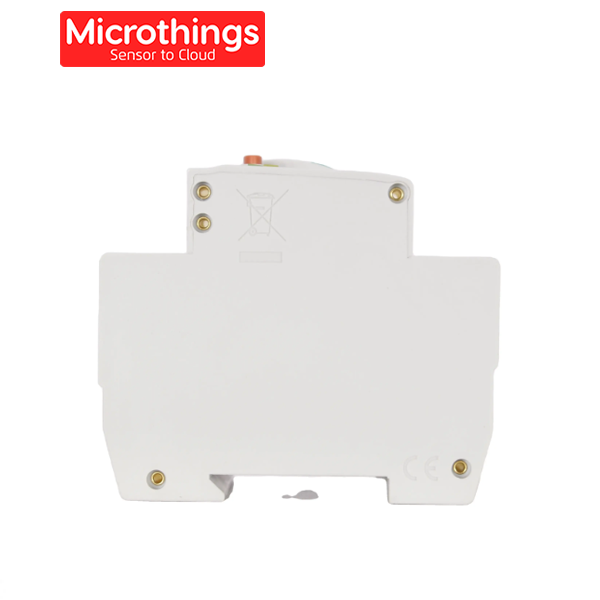

MTAF1-32 Arc fault Detection Devices is consist of small circuit breaker, tripping mechanism and arc detection module. MTAF1-32 Arc Fault Detection Devices has the function of short circuit protection,overload protection and arc fault protection.

Spesification :
Main technical parameters of the product
1)Rated working voltageAC 230V
2)Rated working frequency:50Hz2%
3)Rated insulation voltage:400V
4) Rated impact withstand voltage:4kV
5)Rated current:6A10A16A20A25A32A.
6)Number of poles:1P+N
7)Type of Instantaneous trip:B,C
8)Short circuit capability:6kA

Weight 1 kg

Main technical parameters of the product
Rated working voltageAC 230V
Rated working frequency:50Hz2%
Rated insulation voltage:400V
Rated impact withstand voltage:4kV
Rated current:6A10A16A20A25A32A.
Number of poles:1P+N
Type of Instantaneous trip:B,C
Short circuit capability:6kA
