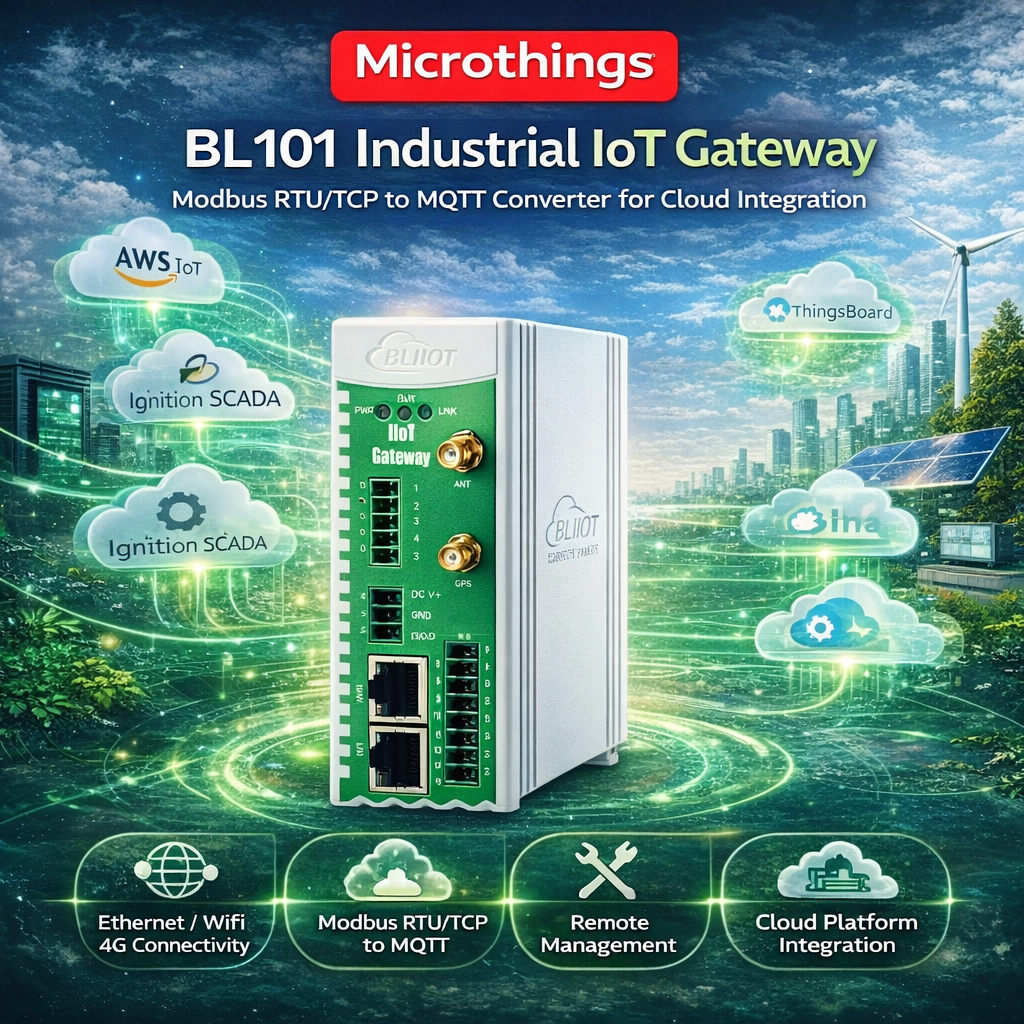

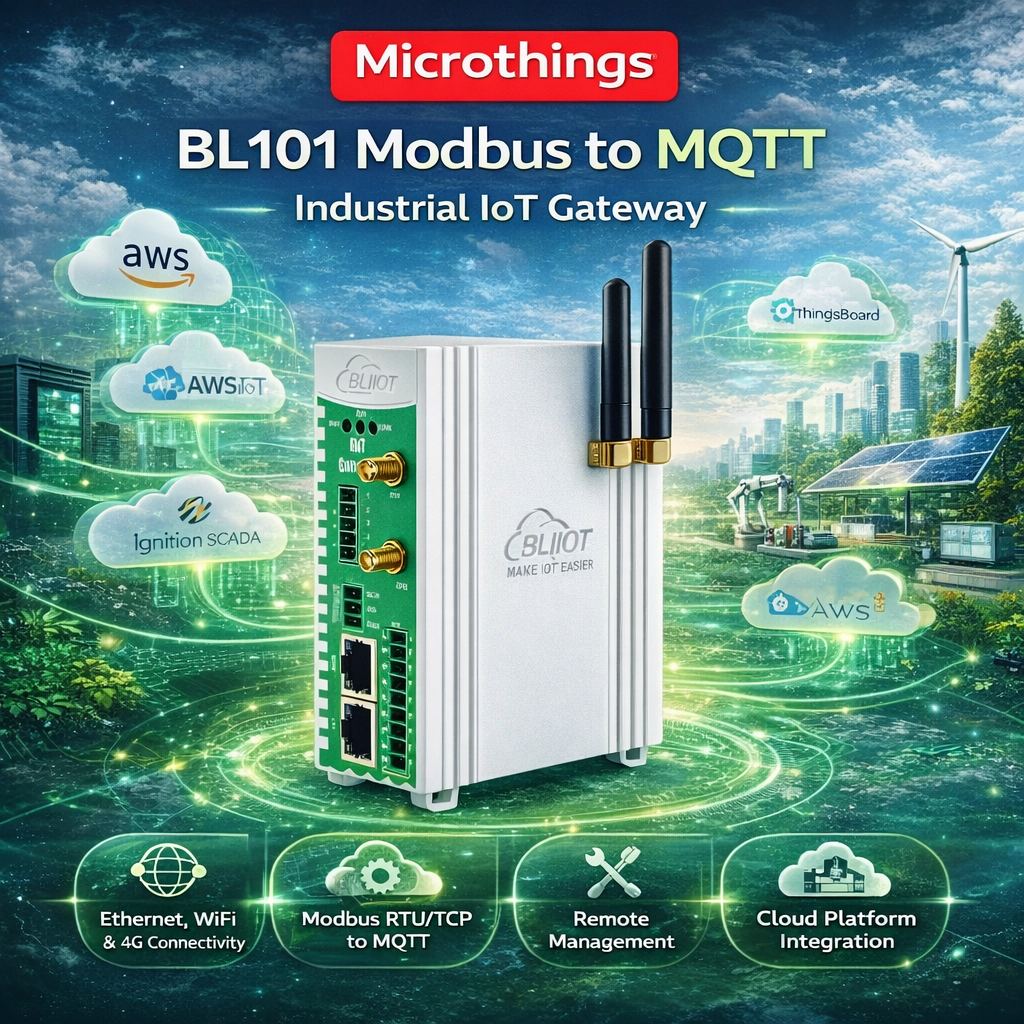

Modbus to MQTT Gateway

Technical Parameters:
Category : Parameter : Description
Power Supply : Power Voltage : 9～36V DC
Power Consumption: Normal: 50mA@12V, Max: 150mA@12V
Power Output :2 channels,Output voltage: 9～36V DC(equal to input voltage),Output current: 1500mA@12V(Max)
Power Protection :Reverse connection protection,ESD air: 15KV, surge:4KV

Serial Port :
Serial Port Qty 1x RS485
Baud Rate 1200bps-115200bps
Data Bit 8
Parity Bit None, Even, Odd
Stop Bit 1,2
Protocol Modbus RTU (slave), Modbus RTU (master)
Protection ESD contact: 8KV, surge: 4KV (8/20us)

SIM/UIM Card Slot :
Slot Qty 1
Slot Type Standard drawer type card slot, support 1.8V/3V nano card with built-in 15KV ESD protection

Cellular Network :
L-E version : GSM/EDGE:900,1800MHz,WCDMA:B1,B5,B8,FDD-LTE:B1,B3,B5,B7,B8,B20,TDD-LTE:B38,B40,B41
L-CE version : GSM/EDGE:900,1800MHz,WCDMA:B1,B8,TD-SCDMA:B34,B39,FDD-LTE:B1,B3,B8,TDD-LTE:B38,B39,B40,B41
L-A version : WCDMA:B2,B4,B5,FDD-LTE:B2,B4,B12
L-AU version : GSM/EDGE:850,900,1800MHz, WCDMA:B1,B2,B5,B8, FDD-LTE:B1,B3,B4,B5,B7,B8,B28,TDD-LTE:B40
L-AF version: WCDMA:B2,B4,B5, FDD-LTE:B2,B4,B5,B12,B13,B14,B66,B71
CAT-1 version : GSM:900,1800,FDD-LTE:B1,B3,B5,B8.TDD-LTE:B34,B38,B39,B40,B41

Software Parameter :
Protocol Modbus RTU, Modbus TCP, MQTT, HUAWEI Cloud,Alibaba Cloud, King Pigeon,Microthings Cloud
Protocol Conversion S: upport Modbus RTU to MQTT
Indicator System running, alarm and RS485 data indicators
User Configuration : PC configuration software, support WIN XP, WIN 7,WIN 8 and WIN 10
Slave Connection : Max 48 slave devices can be connected. Up to 320 mapping register addresses (Bool, 16-bit, 32-bit, 64-bit)
Transparent Transmission : Support transparent transmission
SMS Commands : Support SMS commands
Login Package : Support custom login package
Heartbeat Package : Support custom heartbeat package

Certification
MTBF: ≥100,000 hours
EMC : EN 55022: 2006/A1: 2007 (CE &RE) Class B,IEC 61000-4-2 (ESD) Level 4,IEC 61000-4-3 (RS) Level 4,IEC 61000-4-4 (EFT) Level 4,IEC 61000-4-5 (Surge)Level 3,IEC 61000-4-6 (CS)Level 4,IEC 61000-4-8 (M/S) Level 4
Others : CE, FCC, ROHS

Environment :
Working Condition : -45～85℃, 5～95%RH
Storage Condition -45～105℃, 5～95%RH

Others :
Case : Metal Case
Size :83mm×30mm×100mm
Protection Grade :IP30
Net Weight :225g
Mounting : Wall-Mounting/DIN Rail Mounting
