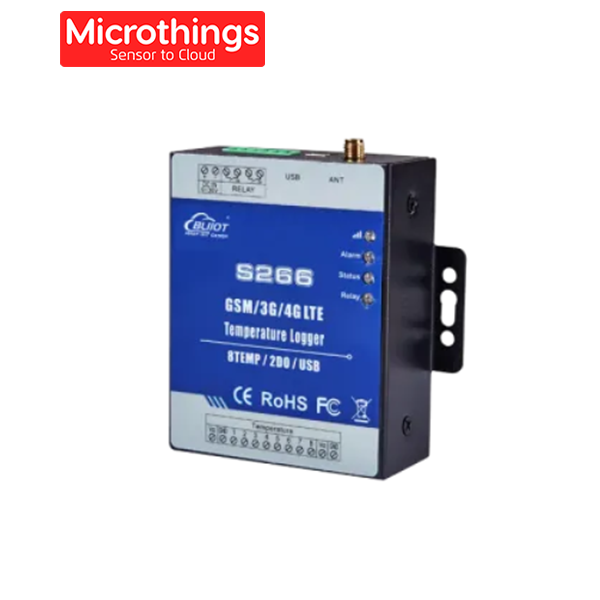

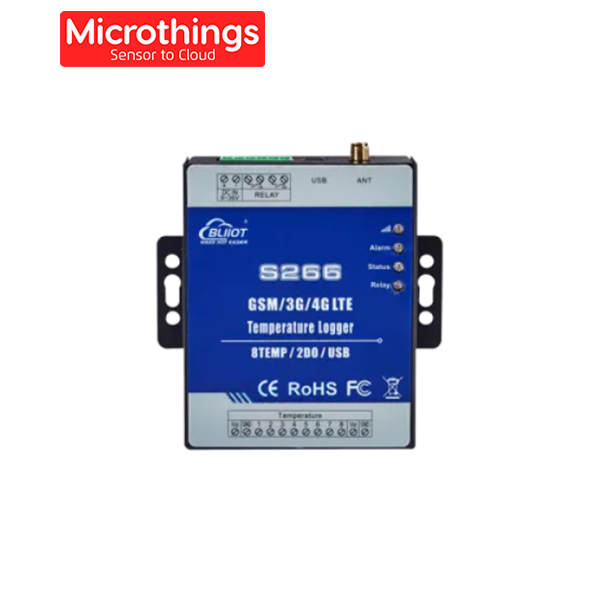

GSM Temperature Data Logger S266


The S266 GSM GPRS SMS 3G 4G Temperature Monitoring Unit can be used for remote monitoring onsite temperature, once the temperature exceeds the preset value, will send SMS to 10 user numbers to alarm.
also, it supports GPRS/3G/4G to transfer data to remote monitoring center,supports modbus tcp,can intergrate to SCADA,MICROTHINGS Cloud platform directly.

Rp2,276,000

GSM Temperature Data Logger S266

GSM/3G/4G Temperature Data Logger(8T+2DO)
Model :S266

The S266 GSM GPRS SMS 3G 4G Temperature Monitoring Unit can be used for remote monitoring onsite temperature, once the temperature exceeds the preset value, will send SMS to 10 user numbers to alarm.
also, it supports GPRS/3G/4G to transfer data to remote monitoring center,supports modbus tcp,can intergrate to SCADA,MICROTHINGS Cloud platform directly.

Features :
Advantages
Quad band 850/900/1800/1900Mhz GSM GPRS Module inside;
3G UMTS/HSDPA/4G Modules are optional.;
32 bit MCU, reliable performance with in-built watchdog;
Support temperature & humidity monitoring remotely in real-time;
Support 8 channel temperature input interface(DS18B20 Temperature sensors);
Support 2 relay outputs,7A@125VAC 5A@125VAC 20A@14VDC;
High/Low Alert via SMS/Call/GPRS;
Supports 1 DNS or IP address as server;
Supports Modbus TCP, TCP/IP protocol over GPRS/3G/4G network;
Automatically resend the data while communication failure, GPRS failure will alert by SMS text;
Supports remotely restart the device, and configure it by SMS commands remotely;
Up to 10 user’s phone number to receive alarm and daily report SMS/Call;
Timer report, interval period 1~65535 seconds, configurable; automatically upload status/Value to the authorized numbers;
In-built rechargeable battery, power lost/recover alarm, low maintenance, 24×7 operation;
In-built internal clock, support 11 actions on schedule at pre-set time;
Internal 16MB memory, logs more than 200000 records;
Wall mount or 35mm standard DIN rail Design, convenient installation, Dimensions 70*88*30mm;
Support Android/IOS APP, easily & friendly for use/config.
Support remote upgrade the firmware via PC.
Can be operated from anywhere, no distance limitation;
Secure – Using caller ID and password for identification, unknown callers are ignored;

Spesification :
DC Power Supply
Standard Adapter: DC 12V/1A
Range 9~36VDC
Power Consumption
Standby:12V/70mA;
WorkingMax.:12V/300mA

GSM/3G Frequency
2G: 850/900/1800/1900Mhz
3G version Optional: (UMTS/HSDPA)
W:900/2100@UMTS 900/1800@GSM;
C:850/1900@UMTS 850/900/1800/1900@GSM;
T:850/2100@UMTS 850/900/1800/1900@GSM;
4G LTE
SIM Interface :Supporting 3V SIM Card
External Antenna :SMA Antenna interface, 50 Ohm
Serial Interfaces :1 USB Port
Temp.&Hum Inputs :8 channel (DS18B20 Temperature Input)
Relay Outputs :2 Relay Outputs
7A@125VAC 5A@125VAC 20A@14VDC
Memory Capacity :16MB for 200000 record.
Backup Battery3.7V 900mAH
Exterior Dimension70*88*30mm

Installation
35mm standard DIN rail(Optional)
Wall mount (Default)
Net Weight :500g

Weight 1000 g

Spesification :
DC Power Supply
Standard Adapter: DC 12V/1A
Range 9~36VDC
Power Consumption
Standby:12V/70mA;
WorkingMax.:12V/300mA

GSM/3G Frequency
2G: 850/900/1800/1900Mhz
3G version Optional: (UMTS/HSDPA)
W:900/2100@UMTS 900/1800@GSM;
C:850/1900@UMTS 850/900/1800/1900@GSM;
T:850/2100@UMTS 850/900/1800/1900@GSM;
4G LTE
SIM Interface :Supporting 3V SIM Card
External Antenna :SMA Antenna interface, 50 Ohm
Serial Interfaces :1 USB Port
Temp.&Hum Inputs :8 channel (DS18B20 Temperature Input)
Relay Outputs :2 Relay Outputs
7A@125VAC 5A@125VAC 20A@14VDC
Memory Capacity :16MB for 200000 record.
Backup Battery3.7V 900mAH
Exterior Dimension70*88*30mm

Installation
35mm standard DIN rail(Optional)
Wall mount (Default)
Net Weight :500g
